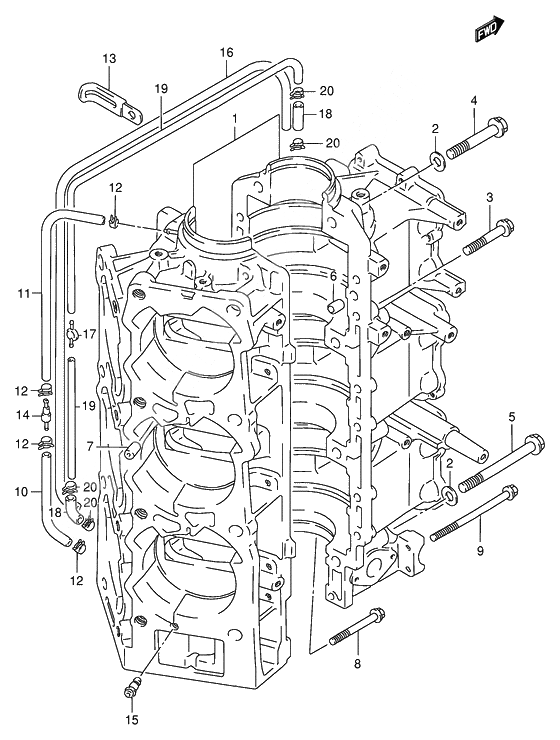

Crankcase для Suzuki V6Y(E1) Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    11300-92E11-0ED Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225,~model:93
    Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225,~model:93
  • 1
    11300-88D28-0ED Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225,w/f.r.s,model:94
    Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225,w/f.r.s,model:94
  • 1
    11300-87D85-0ED Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt200epi/150epi/225, model:95,96
    Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt200epi/150epi/225, model:95,96
  • 1
    11300-88D02-0ED Картер
    Dt200epi/150epi/225, model:97
    Картер
    Dt200epi/150epi/225, model:97
  • 1
    11300-88DV0-0ED Картер
    Картер
  • 1
    11300-88D10-0ED Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225 model:98~00
    Картер
    Crankcase assy (gray)Crankcase assy (gray); Dt225 model:98~00
  • 1
    11300-88DV0-0ED Картер
    Картер
  • 2
    08322-01127-000 Шайба
    Washer, neutral swWasher;
    Шайба
    Washer, neutral swWasher;
  • 3
    01550-08407-000 Болт 8 X 40
    Bolt, crankcase;
    Болт 8 X 40
    Bolt, crankcase;
  • 4
    09106-10045-000 Болт 10X50
    Bolt (10x50);
    Болт 10X50
    Bolt (10x50);
  • 4
    01500-12607-000 Bolt
    Bolt, crankcaseBolt, crankcase; Model:94~00
    Bolt
    Bolt, crankcaseBolt, crankcase; Model:94~00
  • 5
    09106-10046-000 Болт 10X80
    Bolt (10x80);
    Болт 10X80
    Bolt (10x80);
  • 5
    01560-12907-000 Bolt
    Model 94~00
    Bolt
    Model 94~00
  • 6
    04211-11129-000 Pin
    Pin, crankcase knock;
    Pin
    Pin, crankcase knock;
  • 7
    16710-88D30-000 Клапан
    Клапан
  • 8
    01550-06507-000 Bolt (chrome)
    Bolt (chrome)
  • 9
    01550-06907-000 Bolt
    Bolt
  • 10
    09355-30705-600 Hose
    Hose, lubrication no.1Hose, lubrication lower; L:600->00
    Hose
    Hose, lubrication no.1Hose, lubrication lower; L:600->00
  • 11
    09355-30705-600 Hose
    Hose, lubrication no.1Hose, lubrication upper; L:600->30
    Hose
    Hose, lubrication no.1Hose, lubrication upper; L:600->30
  • 12
    09401-06405-000 Хомут
    Хомут
  • 13
    09404-12201-000 Clamp
    Clamp, lubrication hose;
    Clamp
    Clamp, lubrication hose;
  • 14
    16710-95211-000 Клапан
    Valve, lubrication;
    Клапан
    Valve, lubrication;
  • 15
    16710-87E10-000 Клапан контроля
    Valve, check
    Клапан контроля
    Valve, check
  • 16
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, lubrication no.2; L:600->90
    Hose
    Hose, out no.4 (2.5x7x300)Hose, lubrication no.2; L:600->90
  • 16
    09355-25705-00B Hose
    Hose, lubrication no.2L:2000->00, model:95
    Hose
    Hose, lubrication no.2L:2000->00, model:95
  • 17
    16810-95501-000 Фильтр масляный
    Filter, oilModel:96~00
    Фильтр масляный
    Filter, oilModel:96~00
  • 18
    09352-30503-600 Hose (3x5x600)
    Hose, lubrication no.2; Model:96,97, l:600->0
    Hose (3x5x600)
    Hose, lubrication no.2; Model:96,97, l:600->0
  • 19
    09352-50901-600 Hose
    Hose, lubrication no.2Hose, lubrication no.2; Model:96~00, l:600->30
    Hose
    Hose, lubrication no.2Hose, lubrication no.2; Model:96~00, l:600->30
  • 20
    09401-08411-000 Clip
    Model:96~00
    Clip
    Model:96~00
