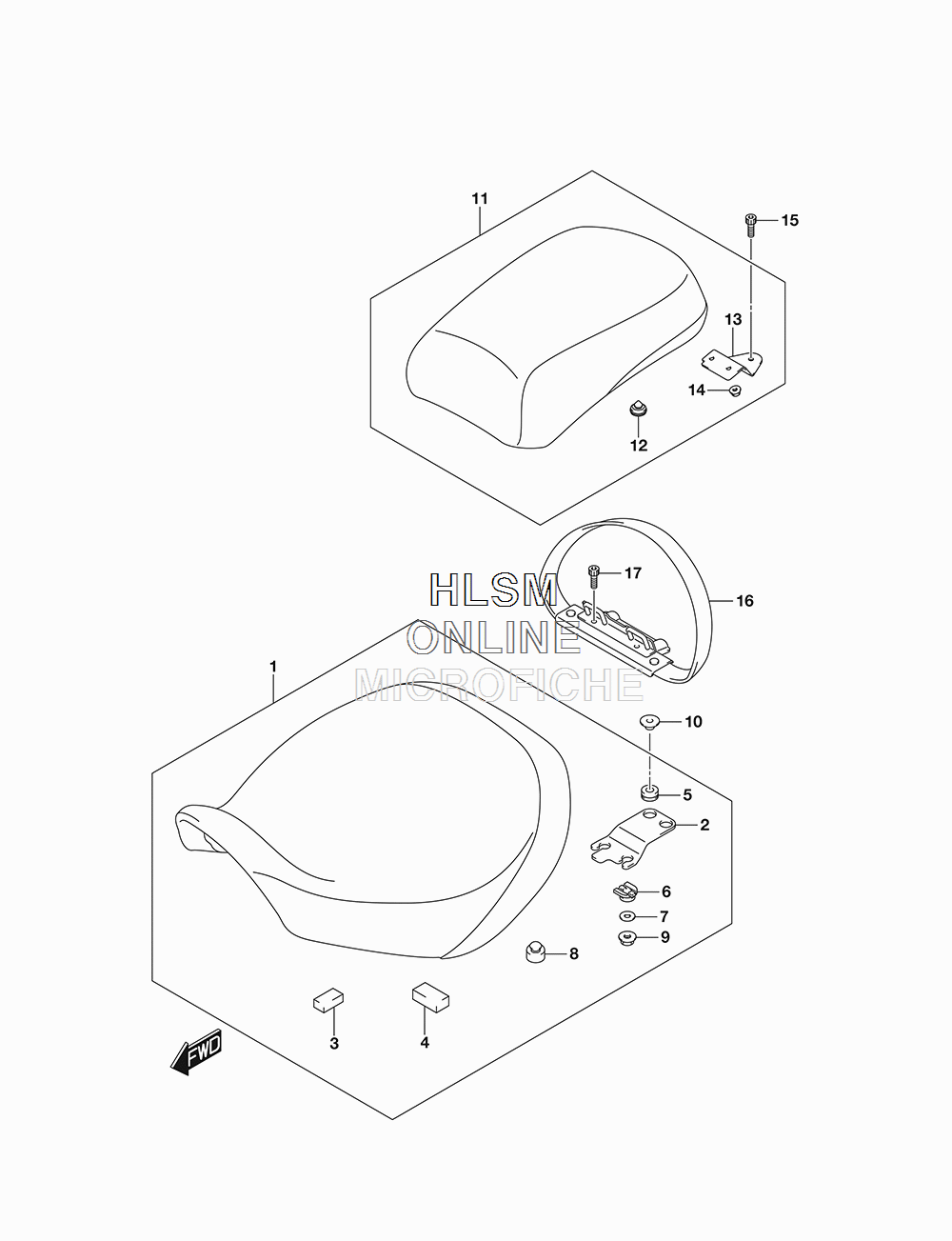

SEAT для Suzuki VL1500BT C90 B.O.S.S. - 2018 года выпуска
-
№АртикулНазвание
-
145100-06J00-V4Y SEAT ASSY (V4Y - BLACK)SEAT ASSY (V4Y - BLACK)
-
245115-06J00 ...BRACKET, SEAT...BRACKET, SEAT
-
345148-40H00 ...CUSHION...CUSHION
-
445149-40H00 ...CUSHION...CUSHION
-
545149-06J00 ...CUSHION...CUSHION
-
645215-06B00 ...CUSHION...CUSHION
-
709160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
809321-10011 ...CUSHION...CUSHION
-
908319-3106A ...NUT...NUT
-
1009169-06077 SPACERSPACER
-
1145300-06J00-V4Y SEAT ASSY, PILLION (V4Y - BLACK)SEAT ASSY, PILLION (V4Y - BLACK)
-
1209321-10002 ...CUSHION (11.5X22X20)...CUSHION (11.5X22X20)
-
1345315-06J00 ...BRACKET...BRACKET
-
1408316-1006A ...NUT...NUT
-
1509106-08140 BOLT (8X16)BOLT (8X16)
-
1645180-06J00-V4Y BAND ASSY, SEAT (V4Y - BLACK)BAND ASSY, SEAT (V4Y - BLACK)
-
1709106-06064 BOLT (6X18)BOLT (6X18)
