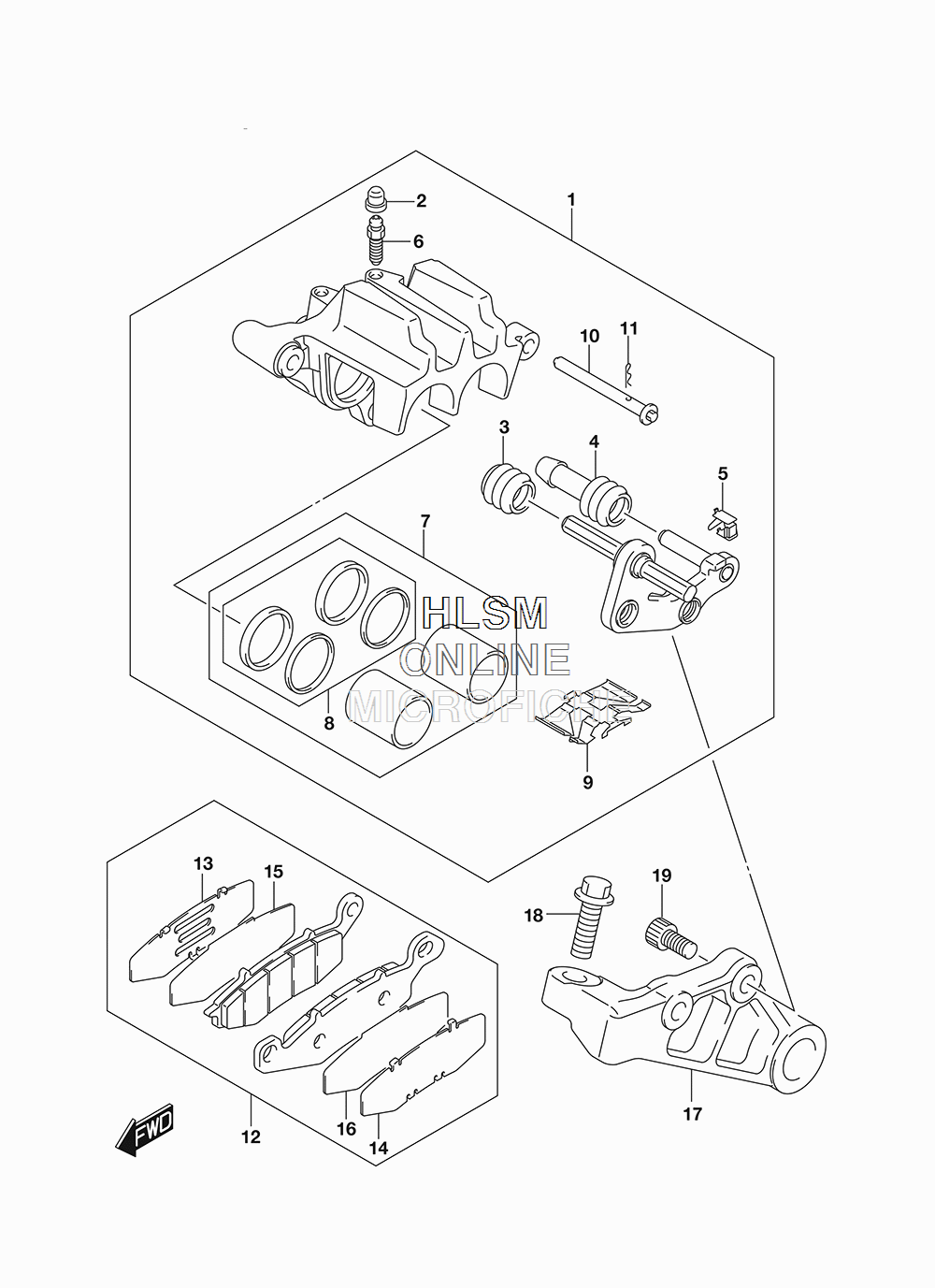

BRAKE - REAR CALIPER для Suzuki VL1500BT C90 B.O.S.S. - 2018 года выпуска`
-
№АртикулНазвание
-
169100-01DB0-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
255156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
359112-44B00 ...BOOT, AXLE...BOOT, AXLE
-
459113-01D00 ...INSULATOR, AXLE...INSULATOR, AXLE
-
559116-33D00 ...GUIDE, PAD...GUIDE, PAD
-
659121-18410 ...BLEEDER...BLEEDER
-
769100-01840 ...PISTON SET...PISTON SET
-
859300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
969115-01D40 ...SPRING, PAD...SPRING, PAD
-
1069141-01D40 ...PIN, PAD...PIN, PAD
-
1169142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
1269101-01810 PAD SETPAD SET
-
1359171-33D00 ...SHIM, PAD...SHIM, PAD
-
1459172-33D00 ...SHIM, PAD NO.2...SHIM, PAD NO.2
-
1569171-01D40 ...INSULATOR NO.1...INSULATOR NO.1
-
1669172-01D40 ...INSULATOR NO.2...INSULATOR NO.2
-
1769721-48G30 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
1809103-12109 BOLT (12X40)BOLT (12X40)
-
1909106-10062 BOLT (10X20)BOLT (10X20)
