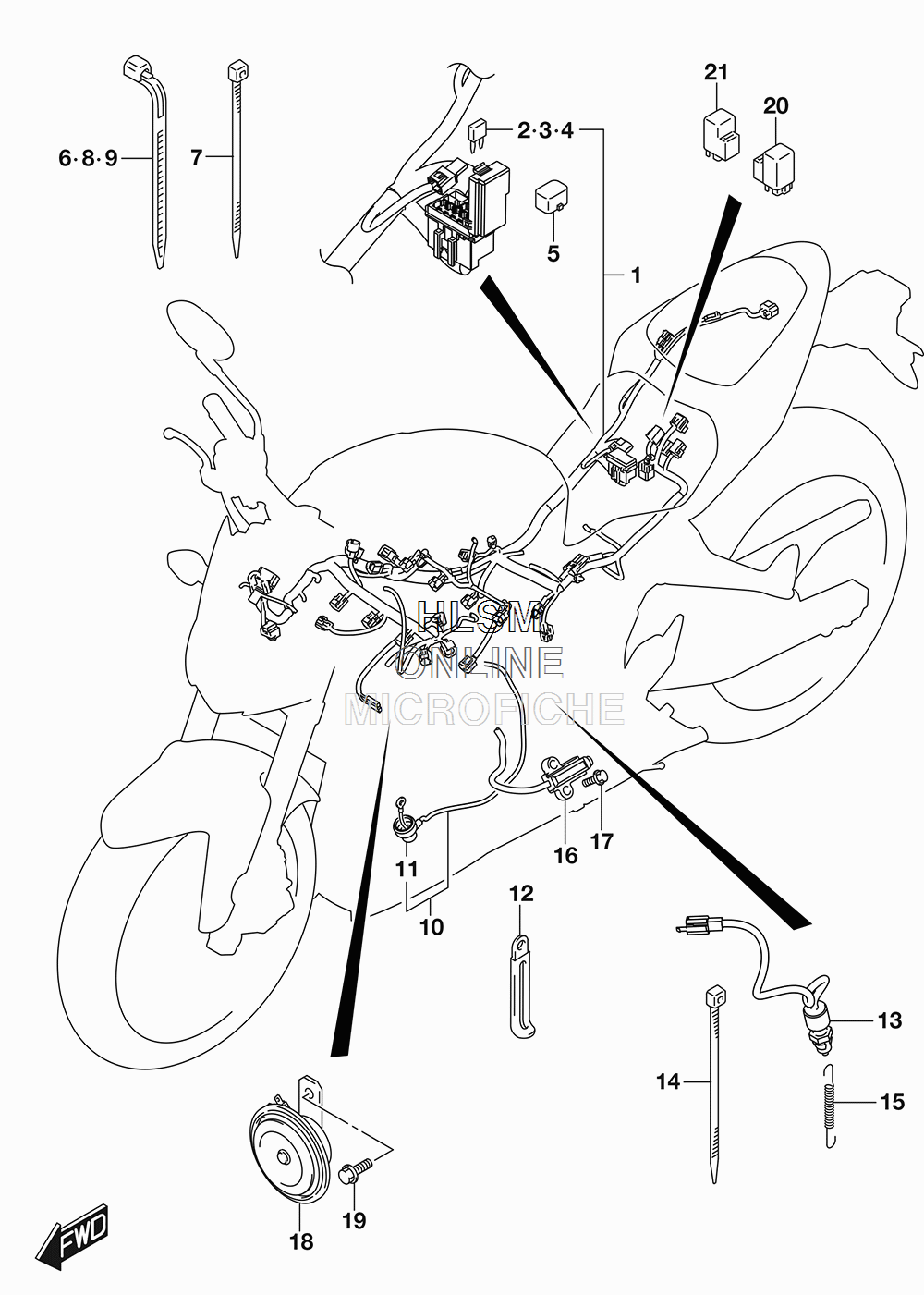

WIRING HARNESS (CALIF.) для Suzuki GSX-S750AZ - 2018 года выпуска`
-
№АртикулНазвание
-
136610-13KB0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
409481-30501 ...FUSE (30A)...FUSE (30A)
-
536654-06J30 CAP, TSCAP, TS
-
609407-11401 CLAMP (L:95)CLAMP (L:95)
-
709407-14407 CLAMP (L:145)CLAMP (L:145)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
1036851-23H01 WIRE, OIL PRESSURE SWITCH LEAWIRE, OIL PRESSURE SWITCH LEA
-
1136618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
1209404-06429 CLAMP (L:45)CLAMP (L:45)
-
1337740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409407-14407 CLAMP (L:145)CLAMP (L:145)
-
1509443-06012 SPRINGSPRING
-
1637840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1701550-0620A BOLTBOLT
-
1838500-16G01 HORN ASSYHORN ASSY
-
1901550-0812A BOLTBOLT
-
2038740-24X50 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
2138740-24X50 RELAY ASSY (FOR FAN MOTOR)RELAY ASSY (FOR FAN MOTOR)
