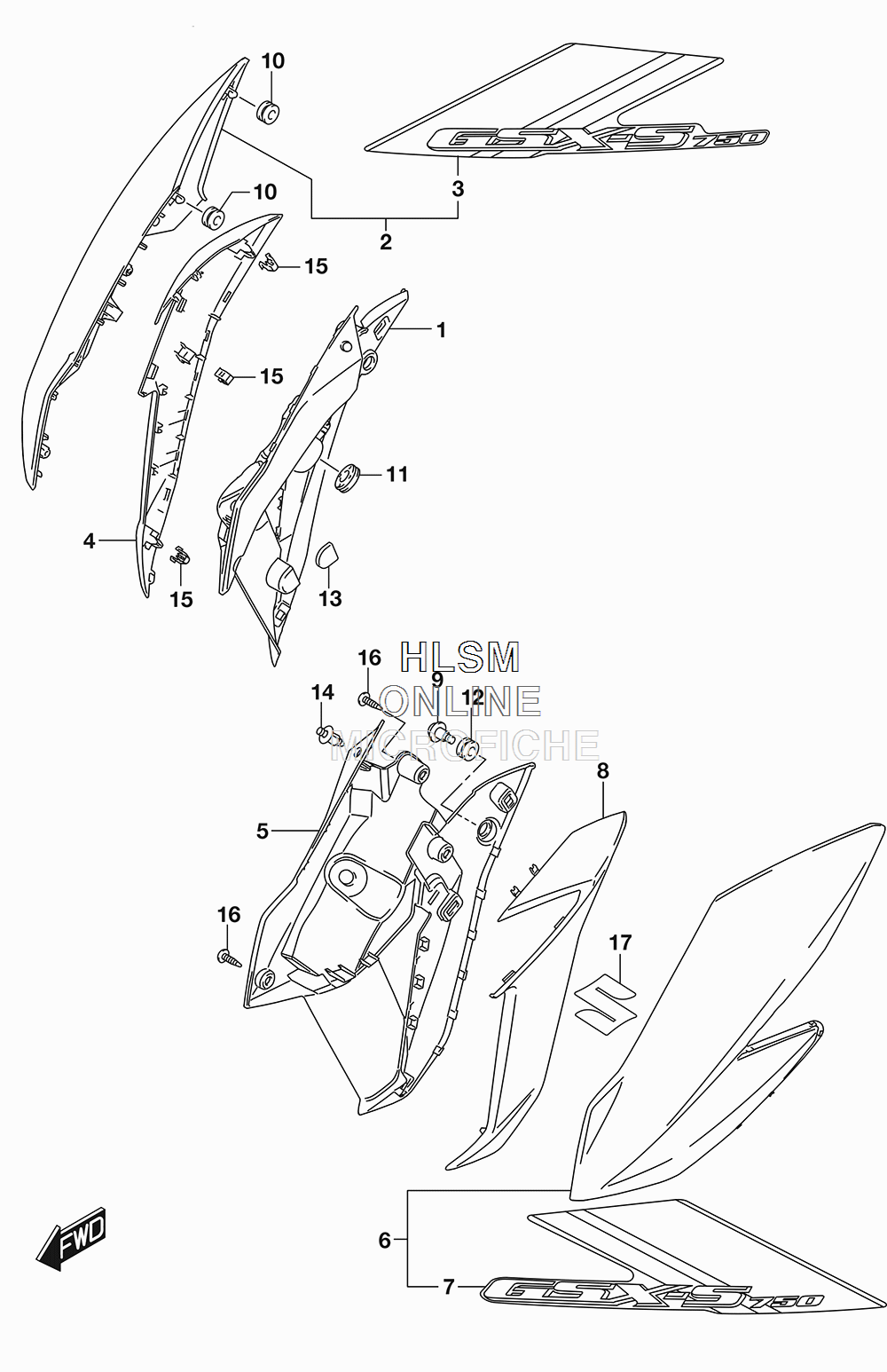

FRAME BODY COVER (BLACK) для Suzuki GSX-S750AZ - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    47531-13K00 COVER, FRAME BODY INNER (RH)
    COVER, FRAME BODY INNER (RH)
  • 2
    47530-13K10-YKV COVER, FRAME BODY UPPER (RH) (YKV - BLACK)
    COVER, FRAME BODY UPPER (RH) (YKV - BLACK)
  • 3
    68135-13K10-BGG ...TAPE, FRAME BODY COVER (RH) (BGG - SILVER/RED/BLACK/RED/BLACK)
    ...TAPE, FRAME BODY COVER (RH) (BGG - SILVER/RED/BLACK/RED/BLACK)
  • 4
    47533-13K00-YKV COVER, FRAME BODY LOWER (RH) (YKV - BLACK)
    COVER, FRAME BODY LOWER (RH) (YKV - BLACK)
  • 5
    47541-13K00 COVER, FRAME BODY INNER (LH)
    COVER, FRAME BODY INNER (LH)
  • 6
    47540-13K10-YKV COVER, FRAME BODY UPPER (LH) (YKV - BLACK)
    COVER, FRAME BODY UPPER (LH) (YKV - BLACK)
  • 7
    68145-13K10-BGG ...TAPE, FRAME BODY COVER (LH) (BGG - SILVER/RED/BLACK/RED/BLACK)
    ...TAPE, FRAME BODY COVER (LH) (BGG - SILVER/RED/BLACK/RED/BLACK)
  • 8
    47543-13K00-YKV COVER, FRAME BODY LOWER (LH) (YKV - BLACK)
    COVER, FRAME BODY LOWER (LH) (YKV - BLACK)
  • 9
    09139-06190 BOLT (6X20)
    BOLT (6X20)
  • 10
    09320-06504 CUSHION
    CUSHION
  • 11
    09320-08028 CUSHION
    CUSHION
  • 12
    09320-09016 CUSHION
    CUSHION
  • 13
    09329-18001 CUSHION
    CUSHION
  • 14
    09409-06314-5PK SCREW (5PK - BLACK)
    SCREW (5PK - BLACK)
  • 15
    09409-08326 CLIP
    CLIP
  • 16
    03541-0512A SCREW
    SCREW
  • 17
    68111-47HA0 EMBLEM S
    EMBLEM S
