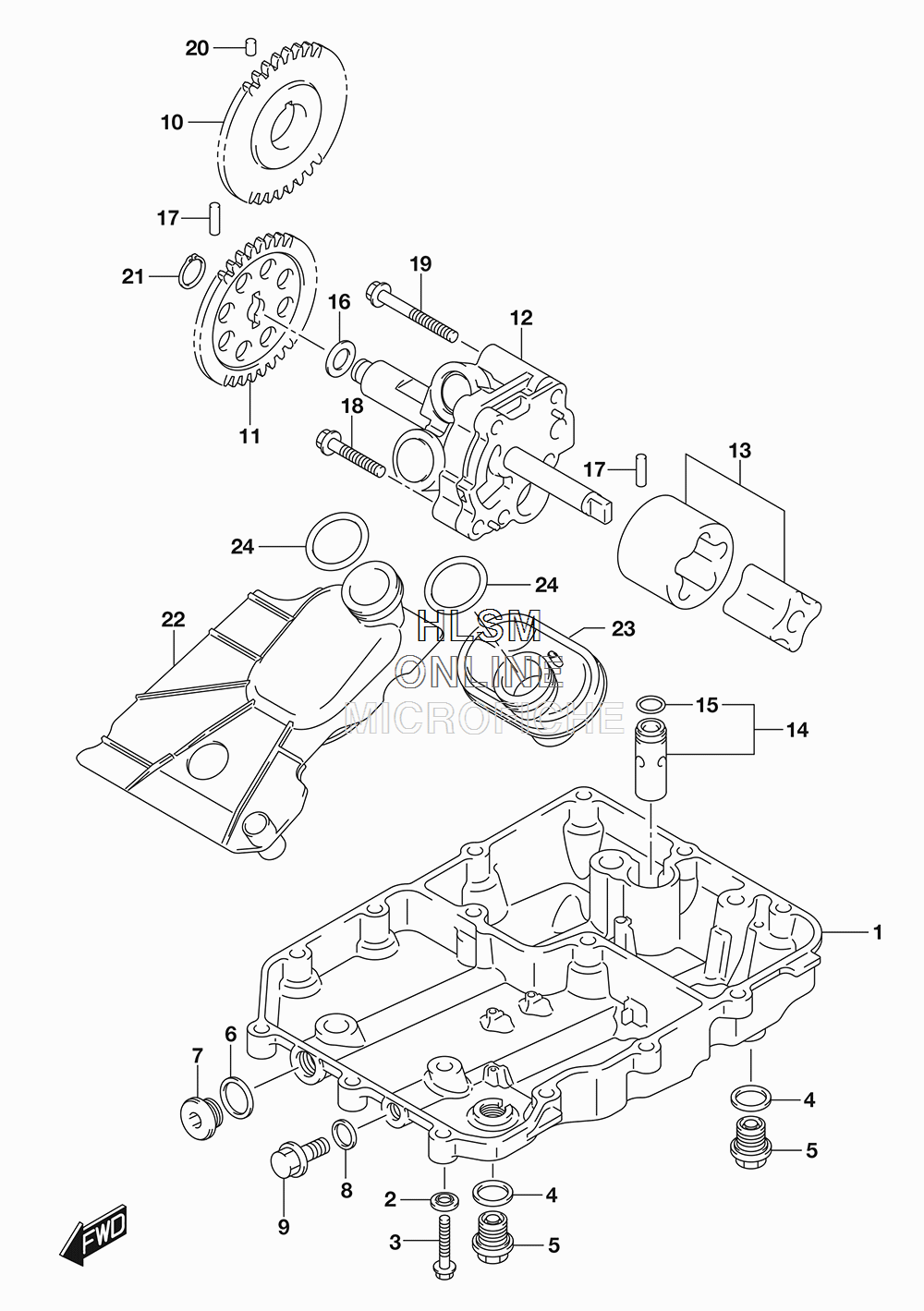

OIL PAN W/ OIL PUMP ASSY. для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
111511-48G01 PAN, OILPAN, OIL
-
209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
301547-0630A BOLTBOLT
-
409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
509247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
709248-16012 PLUG (16X8)PLUG (16X8)
-
809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
909247-10008 PLUG (10X12)PLUG (10X12)
-
1016321-48G00 GEAR, OIL PUMP DRIVE (NT:40)GEAR, OIL PUMP DRIVE (NT:40)
-
1116331-48G00 GEAR, OIL PUMP DRIVEN (NT:36)GEAR, OIL PUMP DRIVEN (NT:36)
-
1216400-48G00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
1316410-48G00 ROTOR SET, OIL PUMPROTOR SET, OIL PUMP
-
1416440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1509280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
1609181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1709261-04009 PIN (4X15.8)PIN (4X15.8)
-
1801547-0635A BOLTBOLT
-
1901547-0655A BOLTBOLT
-
2004221-04069 PINPIN
-
2108331-31109 CIRCLIPCIRCLIP
-
2216530-48G01 STRAINER, ENG OIL FRONTSTRAINER, ENG OIL FRONT
-
2316520-48G01 STRAINER, ENG OIL REARSTRAINER, ENG OIL REAR
-
2409280-22016 O RING (D:3.7,ID:21.7)O RING (D:3.7,ID:21.7)
