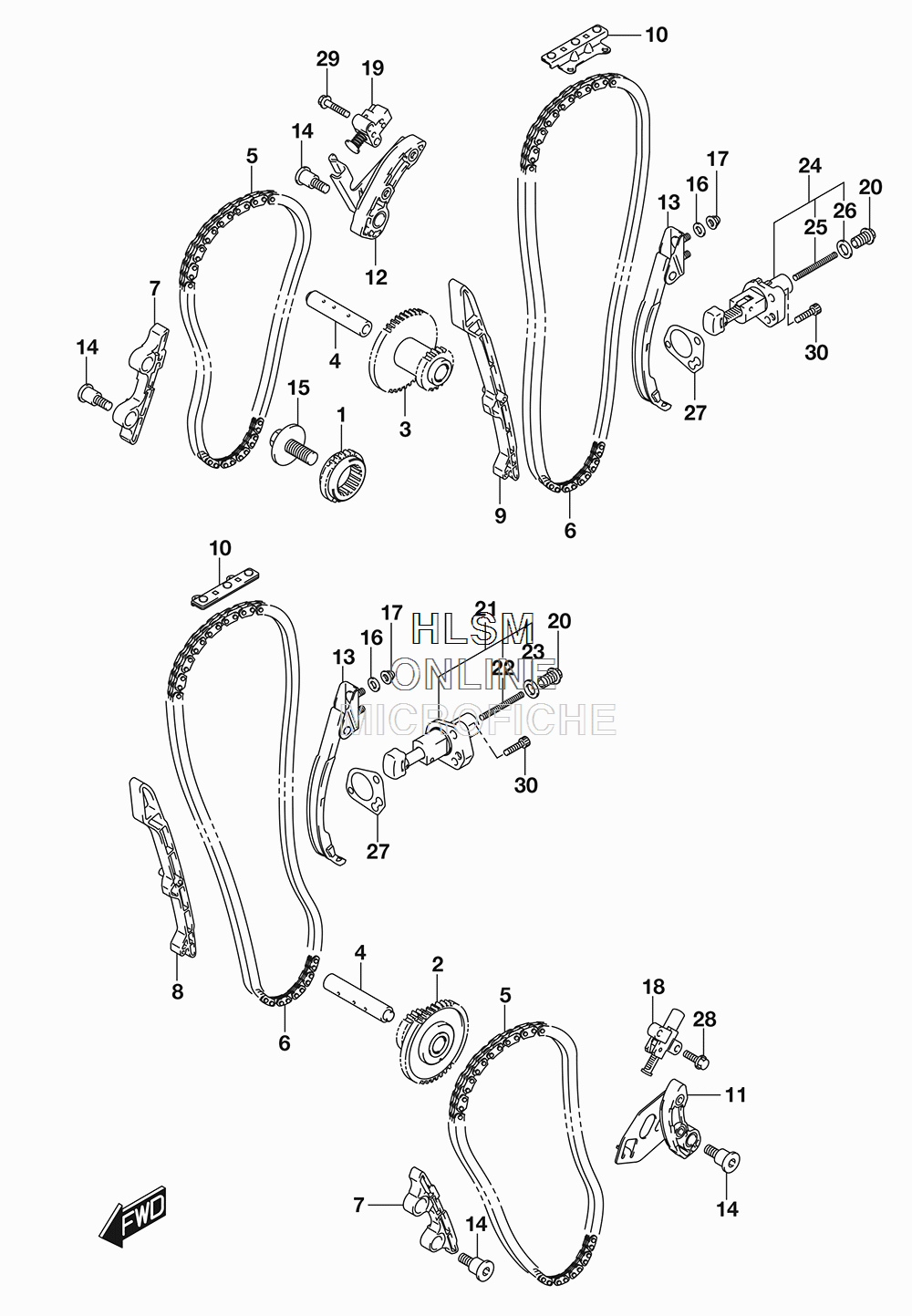

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VZR 1800 M109R B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
112731-48G00 SPROCKET, CAM CHAIN DRIVE (RH)SPROCKET, CAM CHAIN DRIVE (RH)
-
212751-48G00 SPROCKET, CAM CHAIN IDLE FRONTSPROCKET, CAM CHAIN IDLE FRONT
-
312752-48G00 SPROCKET, CAM CHAIN IDLE REARSPROCKET, CAM CHAIN IDLE REAR
-
412755-48G00 SHAFT, IDLERSHAFT, IDLER
-
512761-48G00 CHAIN, CAMSHAFT DRIVE NO.1CHAIN, CAMSHAFT DRIVE NO.1
-
612762-48G00 CHAIN, CAMSHAFT DRIVE NO.2CHAIN, CAMSHAFT DRIVE NO.2
-
712771-48G00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
812772-48G00 GUIDE, CAM CHAIN NO.2 FRONTGUIDE, CAM CHAIN NO.2 FRONT
-
912774-48G00 GUIDE, CAM CHAIN NO.2 REARGUIDE, CAM CHAIN NO.2 REAR
-
1012773-48G00 GUIDE, CAM CHAIN NO.3GUIDE, CAM CHAIN NO.3
-
1112811-48G00 TENSIONER, CAM CHAIN NO.1 FRONTTENSIONER, CAM CHAIN NO.1 FRONT
-
1212813-48G00 TENSIONER, CAM CHAIN NO.1 REARTENSIONER, CAM CHAIN NO.1 REAR
-
1312814-48G00 TENSIONER, CAM CHAIN NO.2TENSIONER, CAM CHAIN NO.2
-
1412812-31G00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
1509103-12013 BOLT (12X28)BOLT (12X28)
-
1609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1708313-20067 NUTNUT
-
1812831-48G00 ADJUSTER, TENSIONER NO.1 FRONTADJUSTER, TENSIONER NO.1 FRONT
-
1912832-48G00 ADJUSTER, TENSIONER NO.1 REARADJUSTER, TENSIONER NO.1 REAR
-
2012833-17G00 PLUG, TENSIONER ADJUSTERPLUG, TENSIONER ADJUSTER
-
2112834-48G00 ADJUSTER, TENSIONER NO.2 FRONTADJUSTER, TENSIONER NO.2 FRONT
-
2212831-35F00 ...SPRING...SPRING
-
2312837-24F10 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
2412835-48G00 ADJUSTER, TENSIONER NO.2 REARADJUSTER, TENSIONER NO.2 REAR
-
2512831-35F00 ...SPRING...SPRING
-
2612837-24F10 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
2712837-27G00 GASKETGASKET
-
2801550-0620A BOLTBOLT
-
2901550-0630A BOLTBOLT
-
3007130-0625A BOLTBOLT
