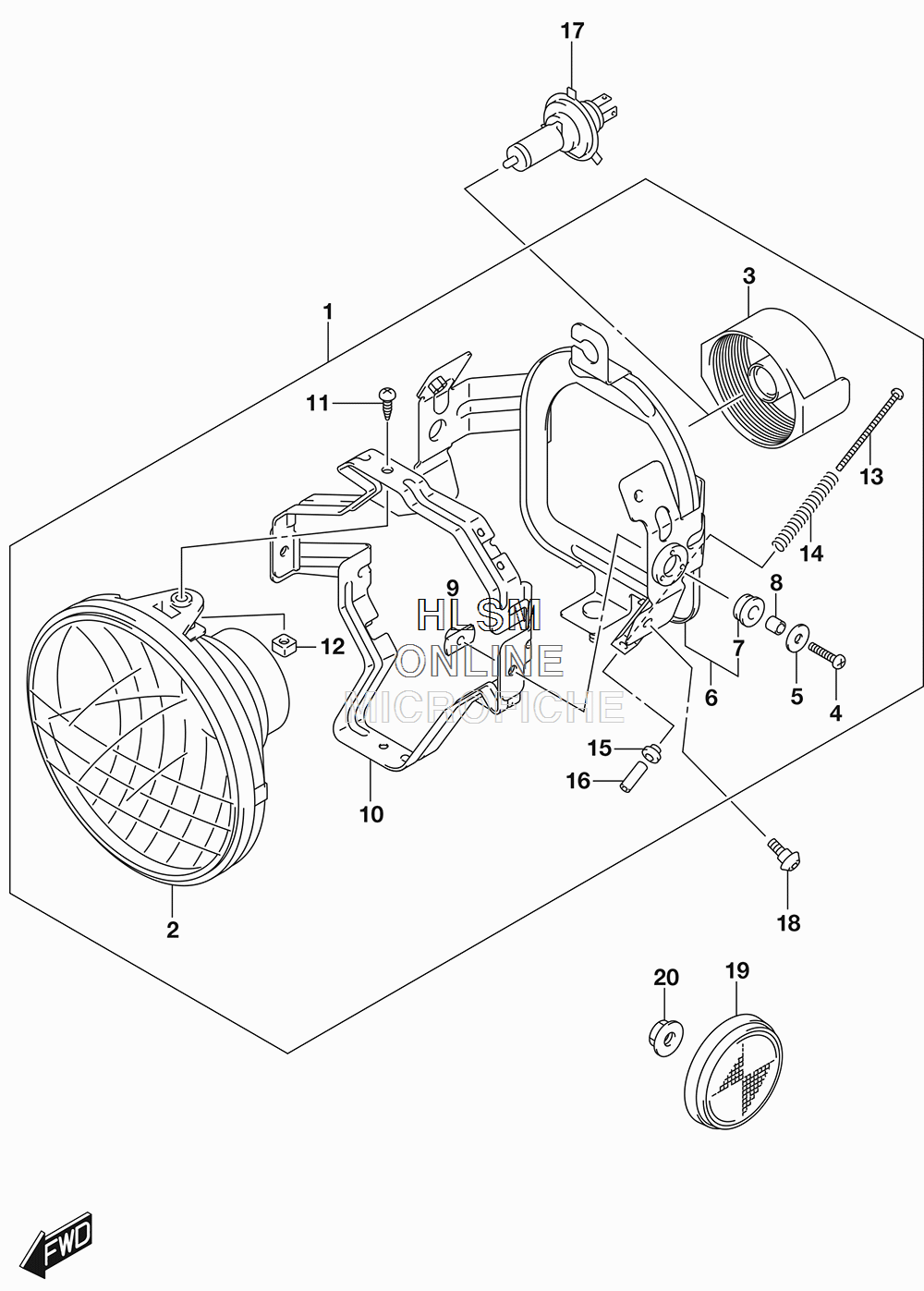

HEADLAMP (CANADA) для Suzuki VL800 C50 - 2017 года выпуска`
-
№АртикулНазвание
-
135100-06J31-999 HEADLAMP ASSYHEADLAMP ASSY
-
235121-10FB0 ...UNIT...UNIT
-
335174-19F00 ...COVER, SOCKET...COVER, SOCKET
-
402122-0520A ...SCREW...SCREW
-
509160-05045 ...WASHER (5.5X18X1)...WASHER (5.5X18X1)
-
635140-06J02 ...BRACKET...BRACKET
-
735139-38A60 ......CUSHION......CUSHION
-
835133-45230 ...SPACER...SPACER
-
935155-10FA0 ...NUT...NUT
-
1035130-10FA0 ...BRACKET...BRACKET
-
1135181-19F00 ...SCREW (5X16)...SCREW (5X16)
-
1235135-45900 ...NUT...NUT
-
1335151-10FA0 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
1435154-10FA0 ...SPRING, ADJUSTER...SPRING, ADJUSTER
-
1535152-45600 ...NUT...NUT
-
1635158-10FA0 ...COVER...COVER
-
1709471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
1809111-06107 BOLT (6X12)BOLT (6X12)
-
1935950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
2008316-1005B NUTNUT
