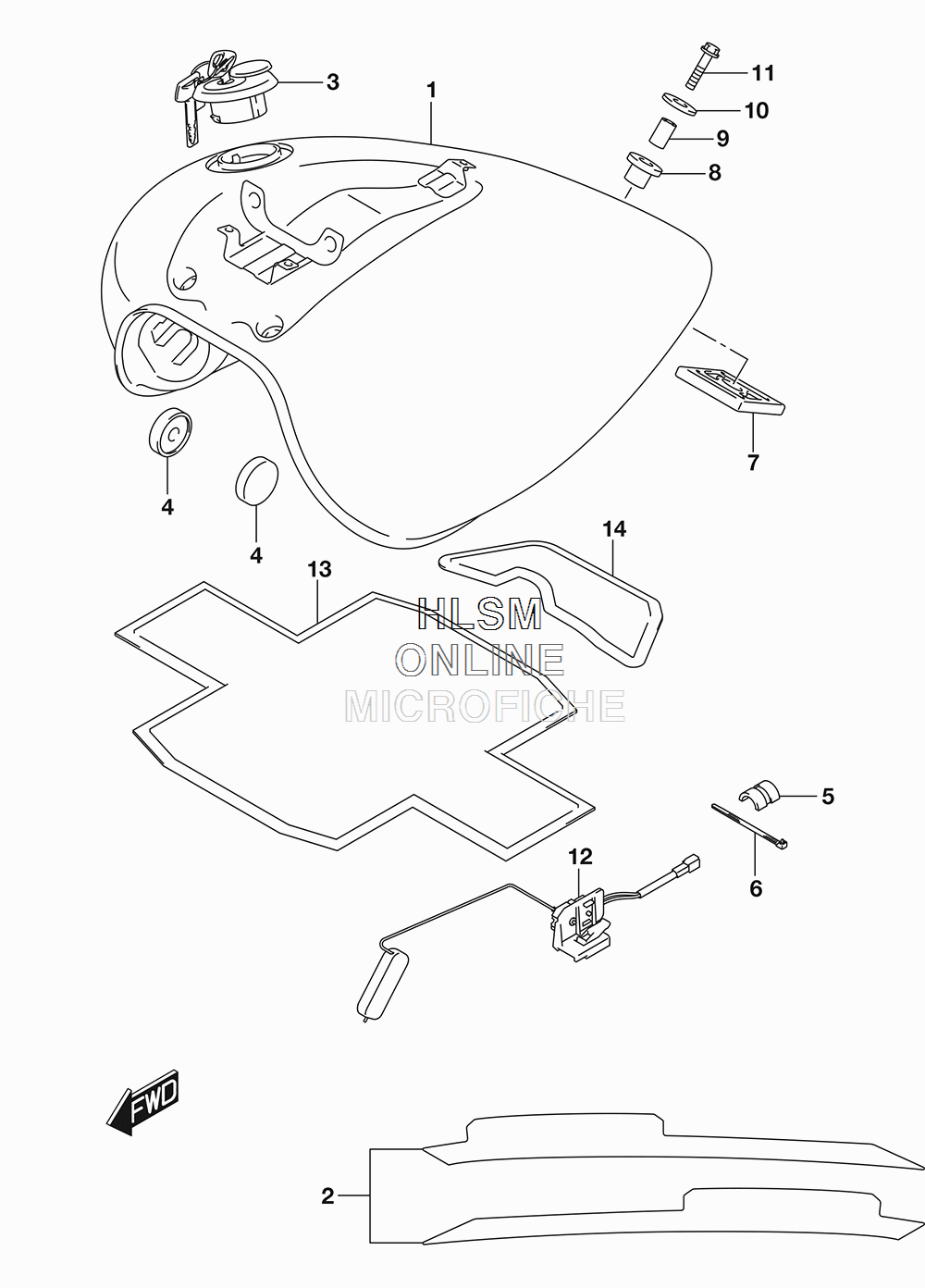

FUEL TANK (EXCEPT CALIF.) для Suzuki VL800 C50 - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-43H30-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
1-244100-43H30-YWW TANK ASSY, FUEL (YWW - WHITE)TANK ASSY, FUEL (YWW - WHITE)
-
2-168110-43H00-AJY ...TAPE SET, FUEL TANK (AJY - GRAY/RED/BLACK FOR REF 1-1 YVB - BLACK)...TAPE SET, FUEL TANK (AJY - GRAY/RED/BLACK FOR REF 1-1 YVB - BLACK)
-
2-268110-43H00-BBL ...TAPE SET, FUEL TANK (BBL - GRAY/GRAY/WHITE FOR REF 1-2 YWW - WHITE)...TAPE SET, FUEL TANK (BBL - GRAY/GRAY/WHITE FOR REF 1-2 YWW - WHITE)
-
344200-41830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409329-10007 CUSHIONCUSHION
-
544541-14F10 CUSHION, SIDECUSHION, SIDE
-
609407-25402 CLAMP (L:250)CLAMP (L:250)
-
744542-41F00 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
844541-41F01 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
909180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
1009160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
1101550-0835A BOLTBOLT
-
1234810-41F11 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
1344192-39G00 SHIELD, HEAT NO.1SHIELD, HEAT NO.1
-
1444191-43H00 SHIELD, HEAT NO.2SHIELD, HEAT NO.2
