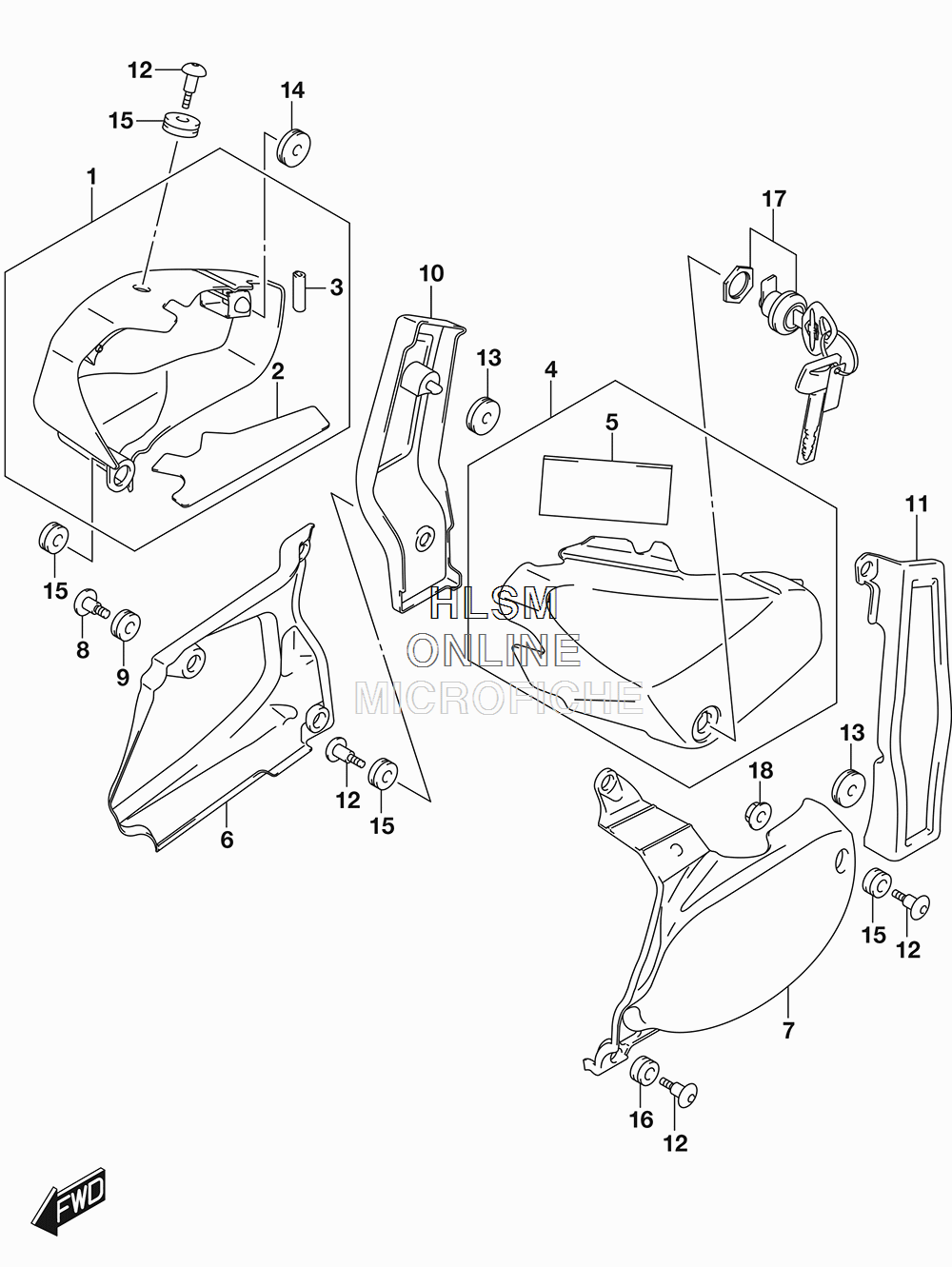

FRAME COVER (EXCEPT CALIF.) для Suzuki VL800 C50 - 2017 года выпуска`
-
№АртикулНазвание
-
1-147110-43H10-YVB COVER, FRAME (RH) (YVB - BLACK)COVER, FRAME (RH) (YVB - BLACK)
-
1-247110-43H10-YWW COVER, FRAME (RH) (YWW - WHITE)COVER, FRAME (RH) (YWW - WHITE)
-
247166-41F00 ...SHIELD, FRAME COVER (RH)...SHIELD, FRAME COVER (RH)
-
394631-35F00 ...MOLDING, (RH)...MOLDING, (RH)
-
4-147210-43H10-YVB COVER, FRAME (LH) (YVB - BLACK)COVER, FRAME (LH) (YVB - BLACK)
-
4-247210-43H10-YWW COVER, FRAME (LH) (YWW - WHITE)COVER, FRAME (LH) (YWW - WHITE)
-
547217-41F00 ...CUSHION, (LH)...CUSHION, (LH)
-
647130-41F00 COVER, SIDE LOWER (RH)COVER, SIDE LOWER (RH)
-
747231-41F00 COVER, SIDE LOWER (LH)COVER, SIDE LOWER (LH)
-
847133-43H00 SCREWSCREW
-
909320-08021 CUSHIONCUSHION
-
1047141-41F01-019 COVER, SIDE REAR (RH) (019 - BLACK)COVER, SIDE REAR (RH) (019 - BLACK)
-
1147241-41F00-019 COVER, SIDE REAR (LH) (019 - BLACK)COVER, SIDE REAR (LH) (019 - BLACK)
-
1209139-06126 SCREW (6X20)SCREW (6X20)
-
1309320-08018 CUSHIONCUSHION
-
1409320-08028 CUSHIONCUSHION
-
1509320-09501 CUSHIONCUSHION
-
1609320-09045 CUSHIONCUSHION
-
1795700-07860 LOCK SET, FUEL LIDLOCK SET, FUEL LID
-
1808316-1006B NUTNUT
