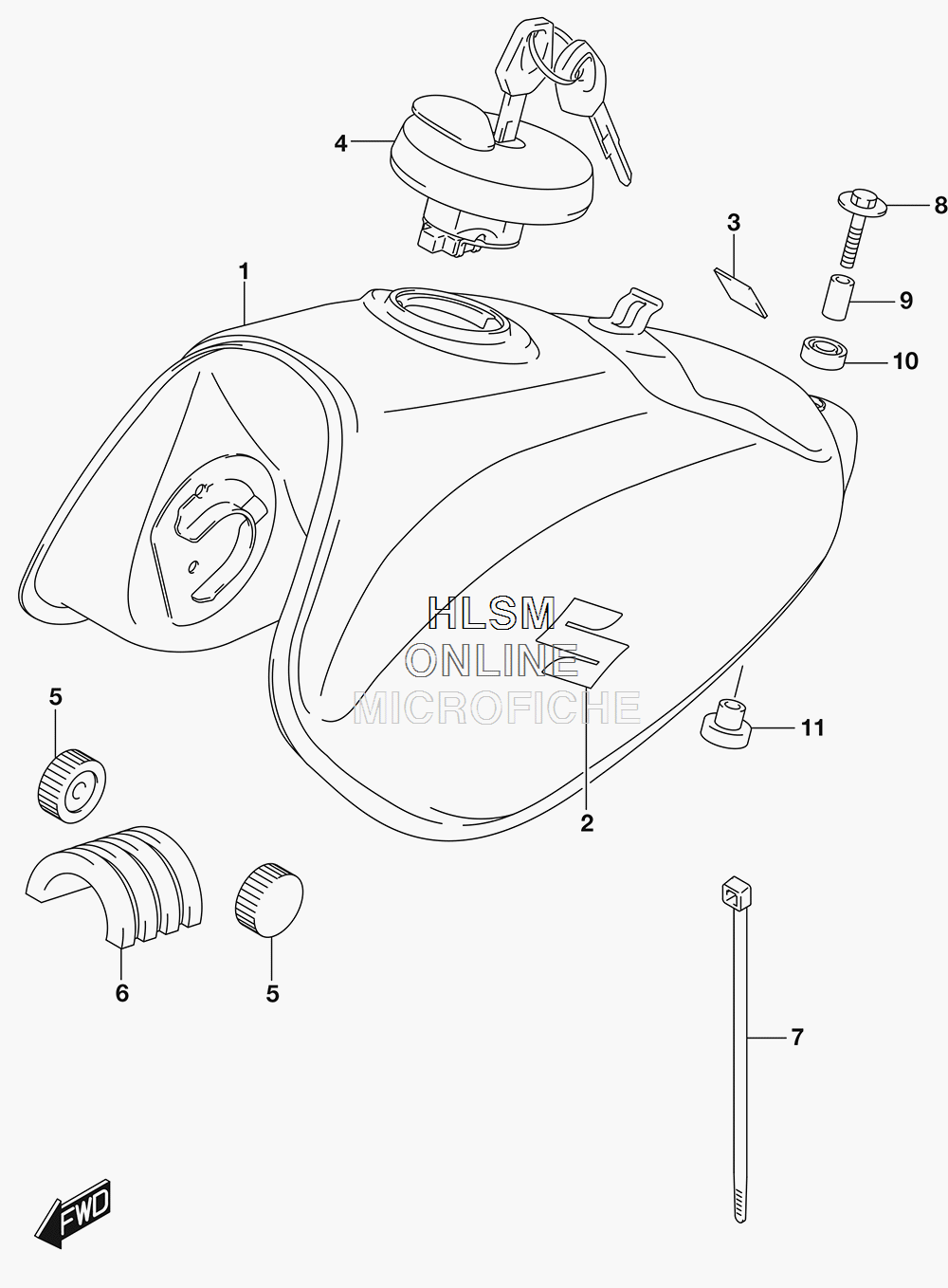

FUEL TANK (CALIF.) (PGZ - GRAY) для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска`
-
№АртикулНазвание
-
144100-13GN0-PGZ TANK ASSY, FUEL (PGZ - GRAY)TANK ASSY, FUEL (PGZ - GRAY)
-
268111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
344572-13G00 FASTENER, TANKFASTENER, TANK
-
444200-41840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509329-10016 CUSHIONCUSHION
-
644541-04F00 CUSHION, TANK LOWERCUSHION, TANK LOWER
-
709407-30402 CLAMP (L:300)CLAMP (L:300)
-
809116-06214 BOLT (6X30)BOLT (6X30)
-
909180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1009320-14022 CUSHIONCUSHION
