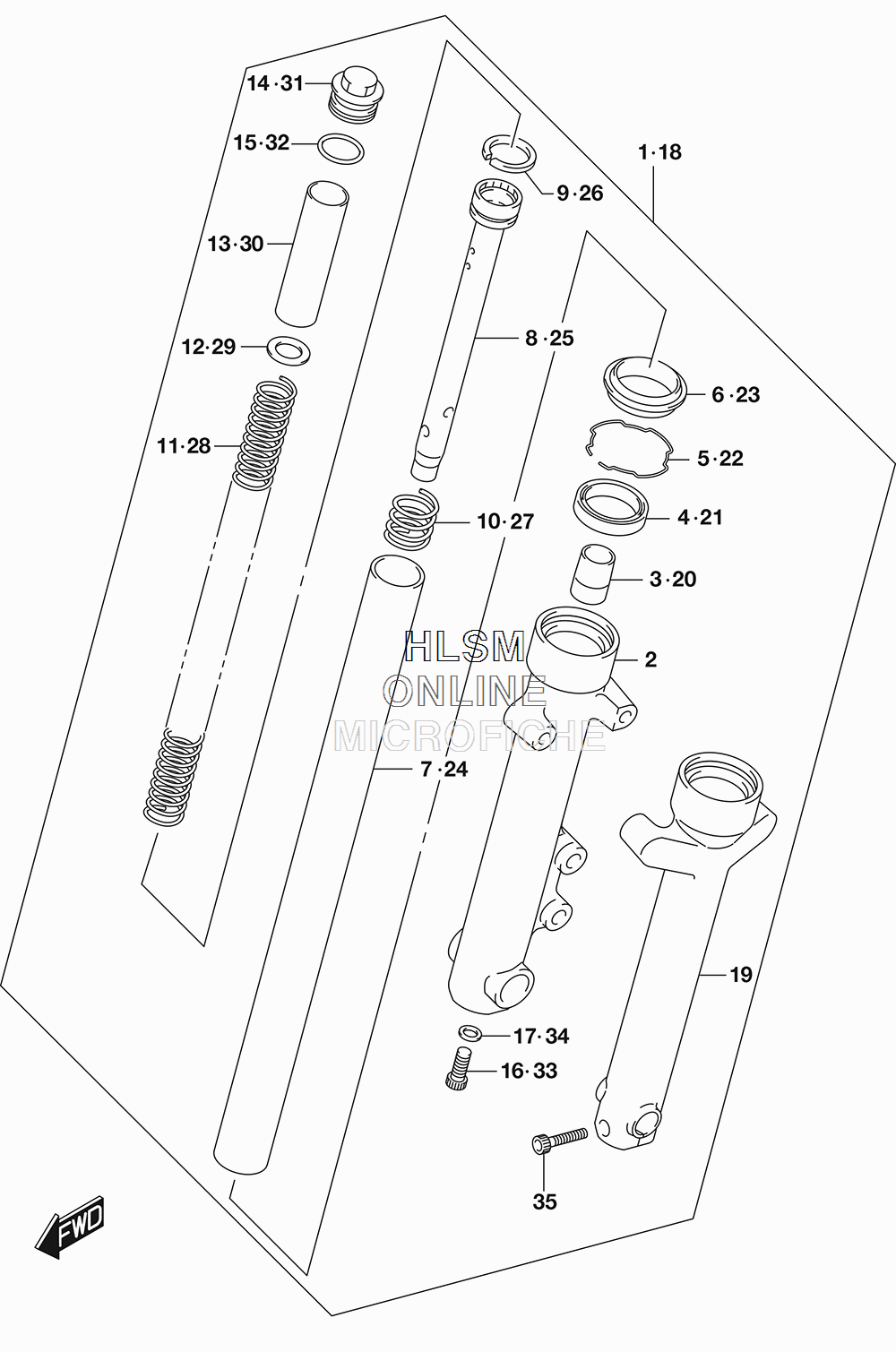

SUSPENSION - FRONT FORK DAMPER для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
151103-13G20-019 DAMPER ASSY, FR FORK (RH) (019 - BLACK)DAMPER ASSY, FR FORK (RH) (019 - BLACK)
-
251130-13G00-019 ...TUBE, OUTER (RH) (019 - BLACK)...TUBE, OUTER (RH) (019 - BLACK)
-
351195-13G00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
451153-05F10 ...OIL SEAL...OIL SEAL
-
551156-29420 ...RING, STOPPER...RING, STOPPER
-
651173-05F10 ...SEAL, DUST...SEAL, DUST
-
751110-13G00 ...TUBE, INNER...TUBE, INNER
-
851146-13G00 ...CYLINDER...CYLINDER
-
951196-00A00 ...RING, PISTON...RING, PISTON
-
1051177-37446 ...SPRING...SPRING
-
1151171-13G00 ...SPRING, FR...SPRING, FR
-
1251172-05F00 ...WASHER...WASHER
-
1351176-13G00 ...SPACER...SPACER
-
1451351-13G00 ...CAP...CAP
-
1551117-05F00 ...O RING...O RING
-
1651147-16510 ...BOLT, FORK CYLINDER (10X25)...BOLT, FORK CYLINDER (10X25)
-
1751148-41310 ...GASKET...GASKET
-
1851104-13G20-019 DAMPER ASSY, FR FORK (LH) (019 - BLACK)DAMPER ASSY, FR FORK (LH) (019 - BLACK)
-
1951140-13G00-019 ...TUBE, OUTER (LH) (019 - BLACK)...TUBE, OUTER (LH) (019 - BLACK)
-
2051195-13G00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
2151153-05F10 ...OIL SEAL...OIL SEAL
-
2251156-29420 ...RING, STOPPER...RING, STOPPER
-
2351173-05F10 ...SEAL, DUST...SEAL, DUST
-
2451110-13G00 ...TUBE, INNER...TUBE, INNER
-
2551146-13G00 ...CYLINDER...CYLINDER
-
2651196-00A00 ...RING, PISTON...RING, PISTON
-
2751177-37446 ...SPRING...SPRING
-
2851171-13G00 ...SPRING, FR...SPRING, FR
-
2951172-05F00 ...WASHER...WASHER
-
3051176-13G00 ...SPACER...SPACER
-
3151351-13G00 ...CAP...CAP
-
3251117-05F00 ...O RING...O RING
-
3351147-16510 ...BOLT, FORK CYLINDER (10X25)...BOLT, FORK CYLINDER (10X25)
-
3451148-41310 ...GASKET...GASKET
-
3507130-08308 ...BOLT...BOLT
