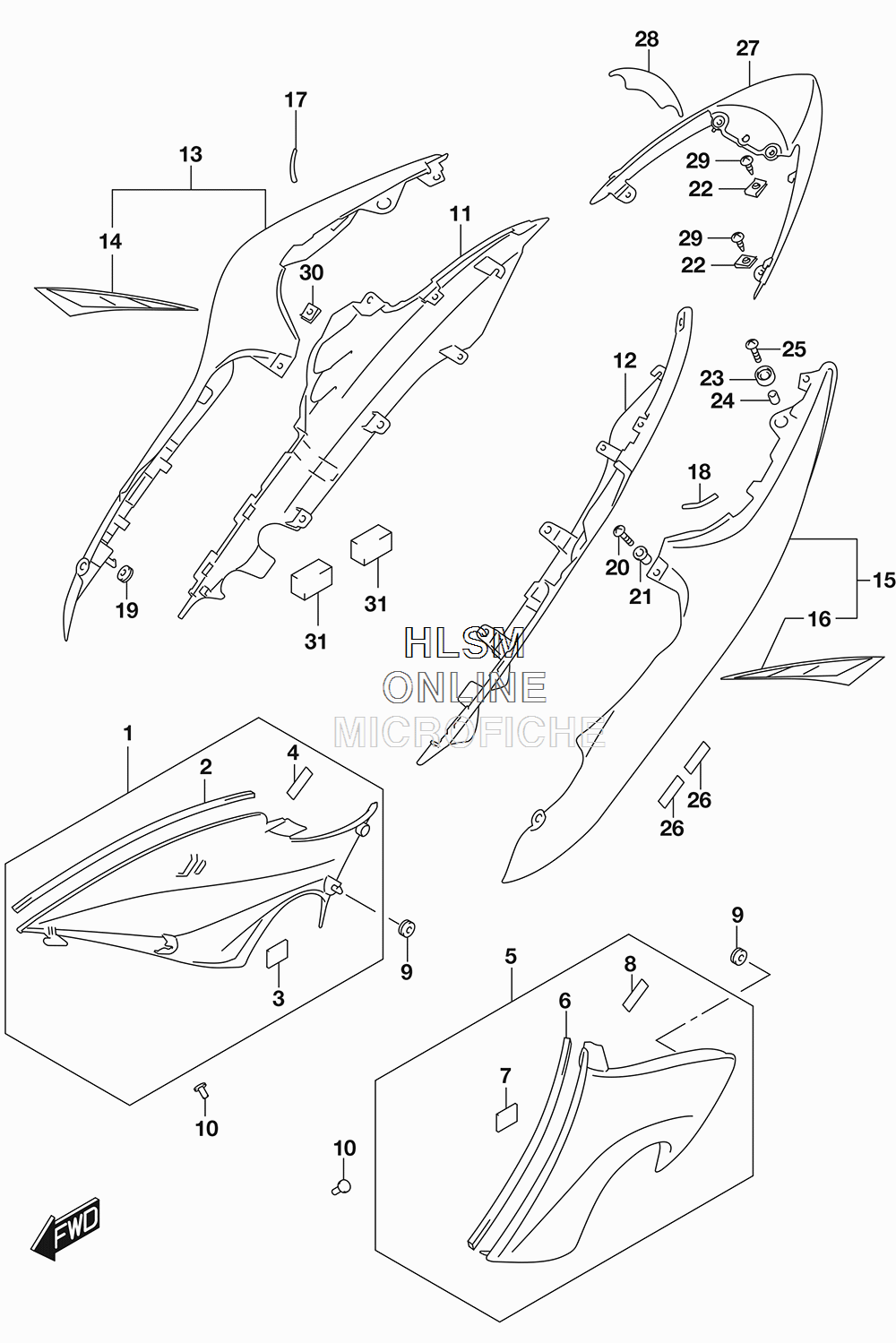

SIDE COVER (YSF - BLUE) для Suzuki GSX-S1000A - 2017 года выпуска
-
№АртикулНазвание
-
147110-04K00 COVER, FRAME FRONT (RH)COVER, FRAME FRONT (RH)
-
244277-37H00 ...CUSHION, FRONT NO.3...CUSHION, FRONT NO.3
-
344572-13G00 ...FASTENER...FASTENER
-
494476-38C00 ...CUSHION, FRONT NO.2...CUSHION, FRONT NO.2
-
547210-04K00 COVER, FRAME FRONT (LH)COVER, FRAME FRONT (LH)
-
644277-37H00 ...CUSHION, FRONT NO.3...CUSHION, FRONT NO.3
-
744572-13G00 ...FASTENER...FASTENER
-
894476-38C00 ...CUSHION, FRONT NO.2...CUSHION, FRONT NO.2
-
909320-06504 CUSHIONCUSHION
-
1009409-10314 CLIPCLIP
-
1147131-04K00 COVER, FRAME REAR LOWER (RH)COVER, FRAME REAR LOWER (RH)
-
1247231-04K00 COVER, FRAME REAR LOWER (LH)COVER, FRAME REAR LOWER (LH)
-
1347120-04K00-YSF COVER, FRAME REAR UPPER (RH) (YSF - BLUE)COVER, FRAME REAR UPPER (RH) (YSF - BLUE)
-
1468135-04K10-A3F ...TAPE, FRAME COVER (RH) (A3F - WHITE/BLUE/YELLOW)...TAPE, FRAME COVER (RH) (A3F - WHITE/BLUE/YELLOW)
-
1547220-04K00-YSF COVER, FRAME REAR UPPER (LH) (YSF - BLUE)COVER, FRAME REAR UPPER (LH) (YSF - BLUE)
-
1668145-04K10-A3F ...TAPE, FRAME COVER (LH) (A3F - WHITE/BLUE/YELLOW)...TAPE, FRAME COVER (LH) (A3F - WHITE/BLUE/YELLOW)
-
1747313-04K01 TAPE, FRAME COVER, (RH)TAPE, FRAME COVER, (RH)
-
1847314-04K01 TAPE, FRAME COVER, (LH)TAPE, FRAME COVER, (LH)
-
1909320-08028 CUSHIONCUSHION
-
2002142-1520B SCREWSCREW
-
2109159-05019 NUTNUT
-
2209148-05047 NUTNUT
-
2347312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
2409180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2509136-06105 SCREW (6X20)SCREW (6X20)
-
2694443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
2747311-04K00-YKV COVER, FRAME CENTER (YKV - BLACK)COVER, FRAME CENTER (YKV - BLACK)
-
2847312-04K00 TAPE, FRAME COVER CTRTAPE, FRAME COVER CTR
-
2903541-0512B SCREWSCREW
-
3009148-05047 NUTNUT
-
3117798-39G00 CUSHION, FRAME COVER LOWER (CUT AS REQUIRED)CUSHION, FRAME COVER LOWER (CUT AS REQUIRED)
