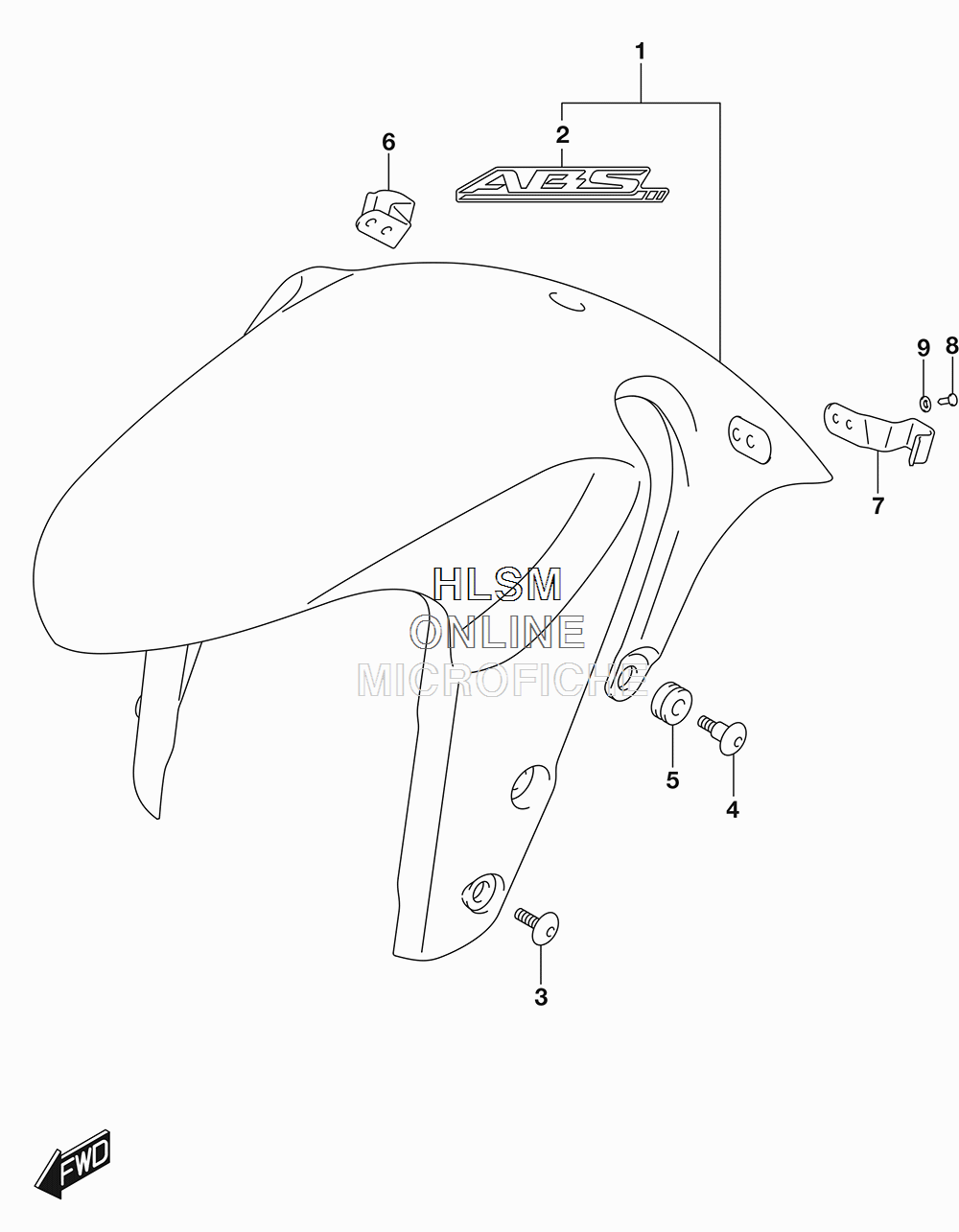

FENDER - FRONT (CALIF.) для Suzuki GSX-S1000A - 2017 года выпуска

  • №
    Артикул
    Название
  • 1-1
    53100-04K00-YSF FENDER ASSY, FRONT (YSF - BLUE)
    FENDER ASSY, FRONT (YSF - BLUE)
  • 1-2
    53100-04K00-YVB FENDER ASSY, FRONT (YVB - BLACK FOR AV4)
    FENDER ASSY, FRONT (YVB - BLACK FOR AV4)
  • 1-3
    53100-04K10-PGZ FENDER ASSY, FRONT (PGZ - GRAY)
    FENDER ASSY, FRONT (PGZ - GRAY)
  • 2-1
    68151-38G00-1ZY ...EMBLEM, "ABS" (1ZY - GRAY FOR YSF)
    ...EMBLEM, "ABS" (1ZY - GRAY FOR YSF)
  • 2-2
    68151-38G00-1ZY ...EMBLEM, "ABS" (1ZY - GRAY FOR REF 1-2 YVB - GRAY FOR AV4)
    ...EMBLEM, "ABS" (1ZY - GRAY FOR REF 1-2 YVB - GRAY FOR AV4)
  • 2-3
    68151-38G10-A79 ...EMBLEM, "ABS" (A79 - GRAY/GRAY FOR PGZ)
    ...EMBLEM, "ABS" (A79 - GRAY/GRAY FOR PGZ)
  • 3
    09139-06169 SCREW (6X16) (FRONT)
    SCREW (6X16) (FRONT)
  • 4
    09139-06190 BOLT (6X20) (REAR)
    BOLT (6X20) (REAR)
  • 5
    09320-09016 CUSHION (REAR)
    CUSHION (REAR)
  • 6
    53117-04K00 CLAMP, BRAKE HOSE (RH)
    CLAMP, BRAKE HOSE (RH)
  • 7
    53118-04K00 CLAMP, BRAKE HOSE (LH)
    CLAMP, BRAKE HOSE (LH)
  • 8
    09229-04038 RIVET
    RIVET
  • 9
    08322-0104B WASHER
    WASHER
