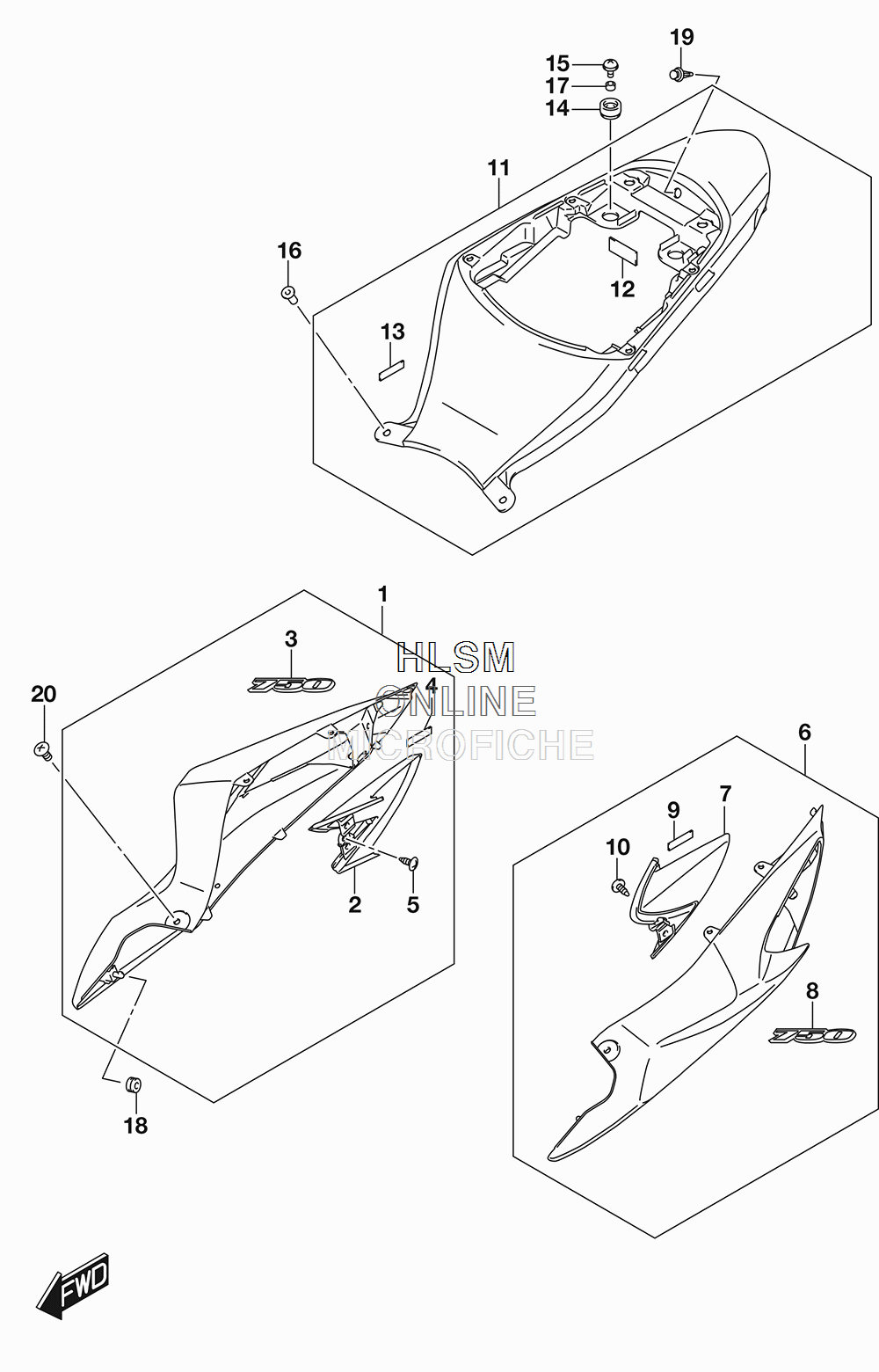

SIDE COVER (YWW - WHITE / KGK - YELLOW) для Suzuki GSX-R750 - 2017 года выпуска`
-
№АртикулНазвание
-
1-147100-15J10-AJX COVER, FRAME (RH) (AJX - WHITE FOR YWW)COVER, FRAME (RH) (AJX - WHITE FOR YWW)
-
1-247100-15J10-YMF COVER, FRAME (RH) (YMF - YELLOW FOR KGK)COVER, FRAME (RH) (YMF - YELLOW FOR KGK)
-
247611-14J00 ...COVER, FRAME...COVER, FRAME
-
3-168131-15J00-A82 ...EMBLEM "750" (A82 - RED/BLACK FOR AJX)...EMBLEM "750" (A82 - RED/BLACK FOR AJX)
-
3-268131-15J00-AA3 ...EMBLEM "750" (AA3 - GRAY/BLACK FOR YMF)...EMBLEM "750" (AA3 - GRAY/BLACK FOR YMF)
-
494443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
503541-0512A ...SCREW...SCREW
-
6-147200-15J10-AJX COVER, FRAME (LH) (AJX - WHITE FOR YWW)COVER, FRAME (LH) (AJX - WHITE FOR YWW)
-
6-247200-15J10-YMF COVER, FRAME (LH) (YMF - YELLOW FOR KGK)COVER, FRAME (LH) (YMF - YELLOW FOR KGK)
-
747621-14J00 ...COVER, FRAME...COVER, FRAME
-
8-168131-15J00-A82 ...EMBLEM "750" (AJX - WHITE FOR YWW)...EMBLEM "750" (AJX - WHITE FOR YWW)
-
8-268131-15J00-AA3 ...EMBLEM "750" (AA3 - GRAY/BLACK FOR YMF)...EMBLEM "750" (AA3 - GRAY/BLACK FOR YMF)
-
994443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
1003541-0512A ...SCREW...SCREW
-
1147300-14J00 COVER, FRAME CENTERCOVER, FRAME CENTER
-
1248128-14FA0 ...CUSHION...CUSHION
-
1394443-06G00 ...TAPE...TAPE
-
1447312-37H00 CUSHION, CENTERCUSHION, CENTER
-
1509136-06056 SCREW (6X16)SCREW (6X16)
-
1609159-05019 NUTNUT
-
1709180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1809320-06504 CUSHIONCUSHION
-
1909409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
2002142-1520B SCREWSCREW
