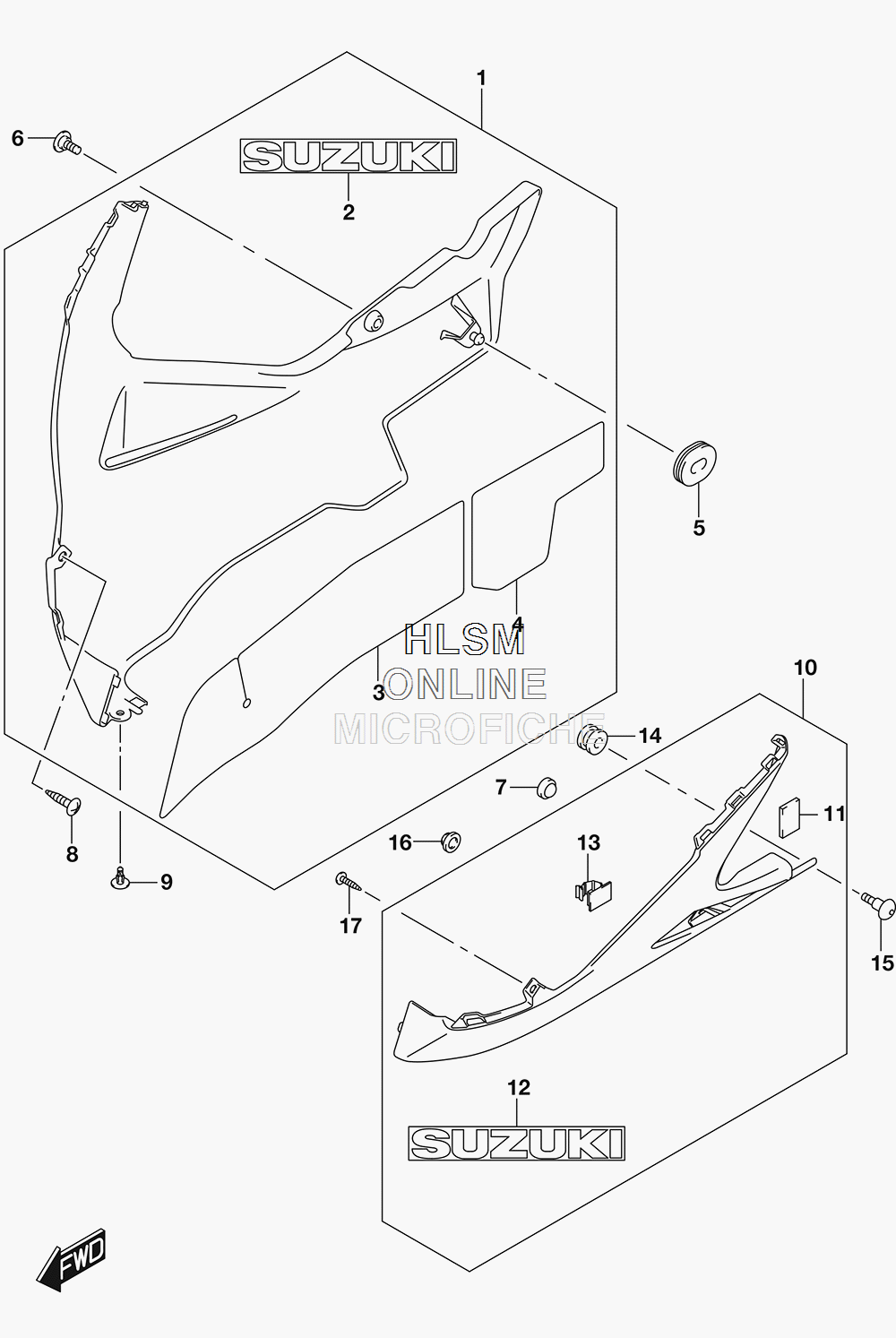

COWLING - UNDER BODY для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
1-194470-14J00-4UX COWLING, UNDER (RH) (4UX - BLACK FOR YSF)COWLING, UNDER (RH) (4UX - BLACK FOR YSF)
-
1-294470-14J00-AJX COWLING, UNDER (RH) (AJX - WHITE FOR YWW)COWLING, UNDER (RH) (AJX - WHITE FOR YWW)
-
1-394470-14J00-YMF COWLING, UNDER (RH) (YMF - YELLOW FOR KGK)COWLING, UNDER (RH) (YMF - YELLOW FOR KGK)
-
2-168181-33C20-YWW ...EMBLEM (YWW - WHITE FOR REF 1-1 4UX - BLACK FOR YSF)...EMBLEM (YWW - WHITE FOR REF 1-1 4UX - BLACK FOR YSF)
-
2-268181-33C20-19A ...EMBLEM (19A - RED REF 1-2 AJX - WHITE FOR YWW)...EMBLEM (19A - RED REF 1-2 AJX - WHITE FOR YWW)
-
2-368181-33C20-019 ...EMBLEM (019 - BLACK REF 1-3 YMF - YELLOW FOR KGK)...EMBLEM (019 - BLACK REF 1-3 YMF - YELLOW FOR KGK)
-
394479-14J00 ...SHIELD, UNDER COWL HEAT...SHIELD, UNDER COWL HEAT
-
494479-14J10 ...SHIELD, UNDER COWL HEAT...SHIELD, UNDER COWL HEAT
-
594478-14J00 CUSHION (RH)CUSHION (RH)
-
694476-14J00 SCREW (5X13) (RH)SCREW (5X13) (RH)
-
709321-10018 CUSHIONCUSHION
-
803541-0512A SCREWSCREW
-
994479-35F00 CLIPCLIP
-
10-194480-14J00-4UX COWLING, UNDER (LH) (4UX - BLACK FOR YSF)COWLING, UNDER (LH) (4UX - BLACK FOR YSF)
-
10-294480-14J00-AJX COWLING, UNDER (LH) (AJX - WHITE FOR YWW)COWLING, UNDER (LH) (AJX - WHITE FOR YWW)
-
10-394480-14J00-YMF COWLING, UNDER (LH) (YMF - YELLOW FOR KGK)COWLING, UNDER (LH) (YMF - YELLOW FOR KGK)
-
1147161-10FA0 ...PROTECTOR, UNDER COWL...PROTECTOR, UNDER COWL
-
12-168181-33C20-YWW ...EMBLEM (YWW - WHITE REF 10-1 4UX - BLACK FOR YSF)...EMBLEM (YWW - WHITE REF 10-1 4UX - BLACK FOR YSF)
-
12-268181-33C20-19A ...EMBLEM (19A - RED REF 10-2 AJX - WHITE FOR YWW)...EMBLEM (19A - RED REF 10-2 AJX - WHITE FOR YWW)
-
12-368181-33C20-019 ...EMBLEM (019 - BLACK REF 10-3 YMF - YELLOW FOR KGK)...EMBLEM (019 - BLACK REF 10-3 YMF - YELLOW FOR KGK)
-
1309403-14311 ...CLAMP...CLAMP
-
1409320-09016 CUSHION (LH)CUSHION (LH)
-
1509139-06190 BOLT (6X20) (LH)BOLT (6X20) (LH)
-
1609321-10018 CUSHIONCUSHION
-
1703541-0512A SCREWSCREW
