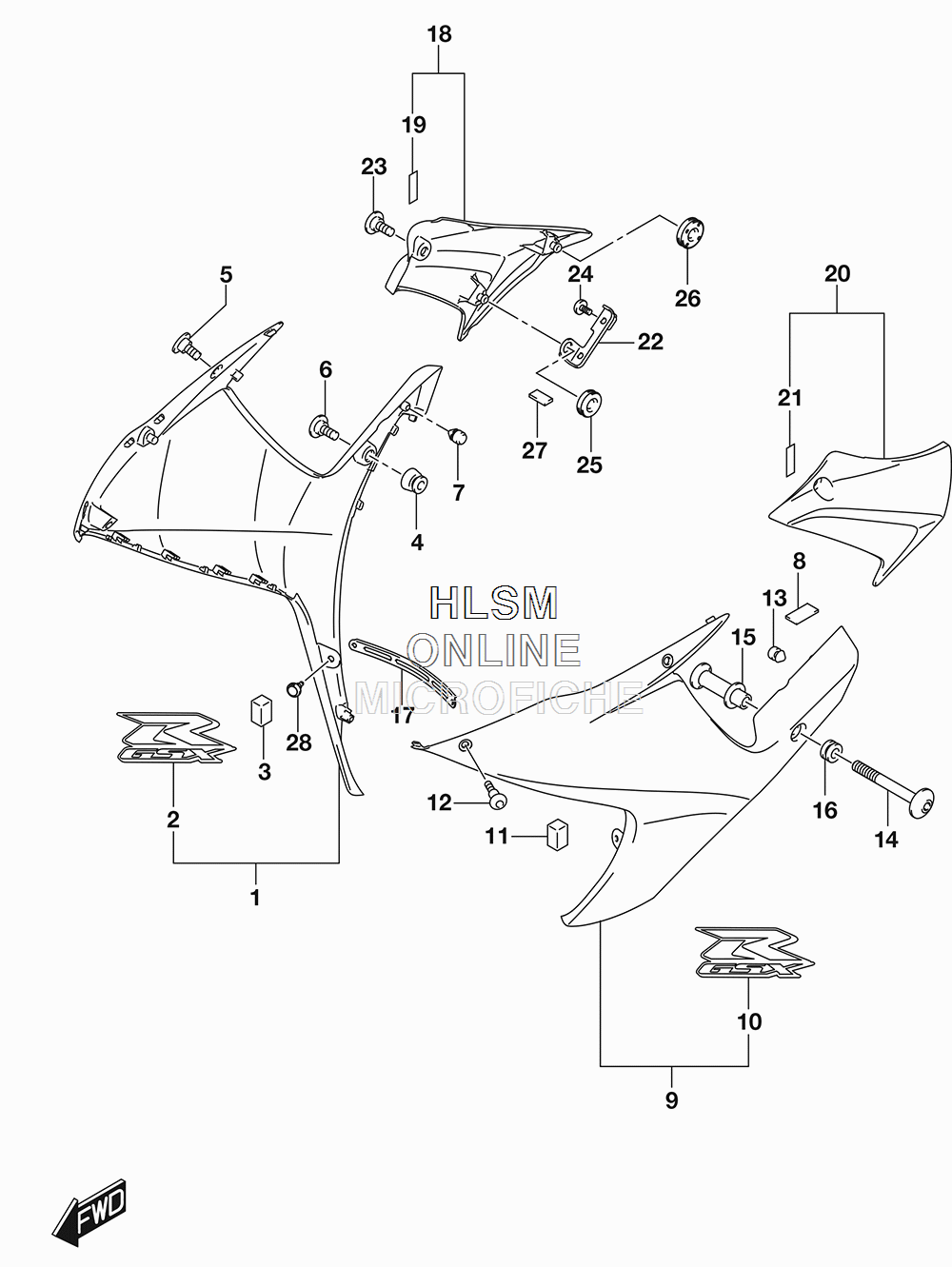

COWLING - SIDE (YWW - WHITE) для Suzuki GSX-R750 - 2017 года выпуска`
-
№АртикулНазвание
-
194450-15J00-YWW COWLING, SIDE (RH) (YWW - WHITE)COWLING, SIDE (RH) (YWW - WHITE)
-
268681-15J00-BE5 ...EMBLEM "GSXR" (RH) (BE5 - ORANGE/BLACK/SILVER FOR YWW)...EMBLEM "GSXR" (RH) (BE5 - ORANGE/BLACK/SILVER FOR YWW)
-
394477-14J01 CUSHIONCUSHION
-
494479-15H00 CUSHION, SIDE COWLING (RH)CUSHION, SIDE COWLING (RH)
-
509139-05064 SCREW (5X13)SCREW (5X13)
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
709321-06013 CUSHIONCUSHION
-
844543-10G00 PROTECTOR, SIDE COWLING (LH) (CUT AS REQUIRED)PROTECTOR, SIDE COWLING (LH) (CUT AS REQUIRED)
-
994460-15J00-YWW COWLING, SIDE (LH) (YWW - WHITE)COWLING, SIDE (LH) (YWW - WHITE)
-
1068691-15J00-BE5 ...EMBLEM "GSXR" (LH) (BE5 - ORANGE/BLACK/SILVER FOR YWW)...EMBLEM "GSXR" (LH) (BE5 - ORANGE/BLACK/SILVER FOR YWW)
-
1194477-14J01 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1309321-06013 CUSHIONCUSHION
-
1494488-14J00 SCREW, SIDE COWLING (LH)SCREW, SIDE COWLING (LH)
-
1594489-14J00 SPACER, SIDE COWLING (LH)SPACER, SIDE COWLING (LH)
-
1609320-09016 CUSHION (LH)CUSHION (LH)
-
1794498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
1894570-14J00 COVER, SIDE COWLING (RH)COVER, SIDE COWLING (RH)
-
1994443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2094580-14J00 COVER, SIDE COWLING (LH)COVER, SIDE COWLING (LH)
-
2194443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2294491-14J00 BRACKET, COVER SIDE (RH)BRACKET, COVER SIDE (RH)
-
2309139-05064 SCREW (5X13)SCREW (5X13)
-
2409139-06062 SCREW (6X12)SCREW (6X12)
-
2509320-08013 CUSHIONCUSHION
-
2609320-08028 CUSHIONCUSHION
-
2794612-31F00 CUSHION, BRACKET COVER (RH)CUSHION, BRACKET COVER (RH)
-
2894479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
