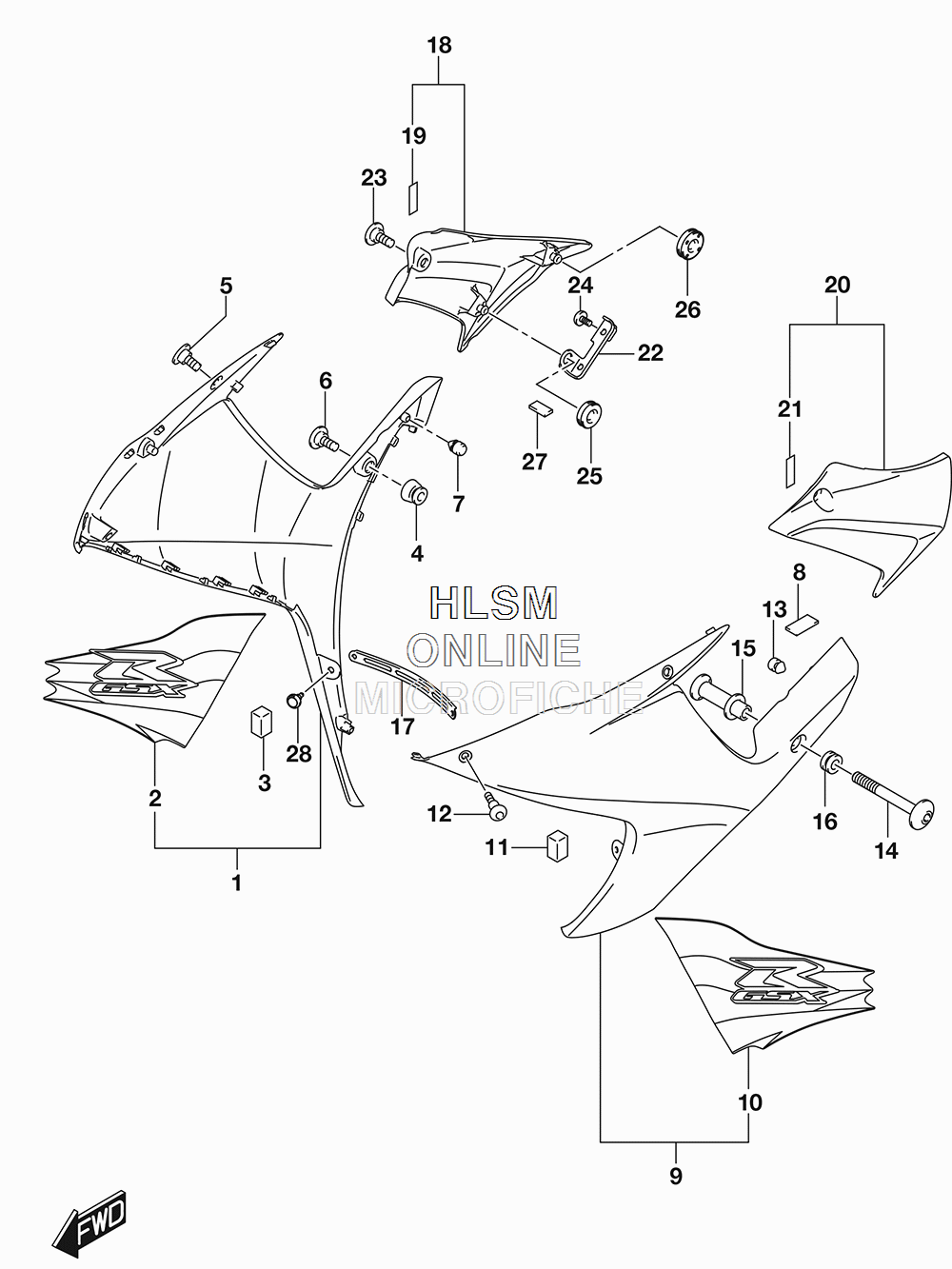

COWLING - SIDE (KGK - YELLOW/BLACK) для Suzuki GSX-R600 - 2017 года выпуска
-
№АртикулНазвание
-
194450-15J50-YVB COWLING, SIDE (RH) (YVB - BLACK FOR KGK)COWLING, SIDE (RH) (YVB - BLACK FOR KGK)
-
268685-14J70-BE6 ...TAPE SET, SIDE COWLING (RH) (BE6 - GRAY/WHITE/ORANGE/SILVER/BLACK/BLACK)...TAPE SET, SIDE COWLING (RH) (BE6 - GRAY/WHITE/ORANGE/SILVER/BLACK/BLACK)
-
394477-14J01 CUSHIONCUSHION
-
494479-15H00 CUSHION, SIDE COWLINGCUSHION, SIDE COWLING
-
509139-05064 SCREW (5X13)SCREW (5X13)
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
709321-06013 CUSHIONCUSHION
-
844543-10G00 PROTECTOR, SIDE COWLING (LH)PROTECTOR, SIDE COWLING (LH)
-
994460-15J50-YVB COWLING, SIDE (LH) (YVB - BLACK FOR KGK)COWLING, SIDE (LH) (YVB - BLACK FOR KGK)
-
1068695-14J70-BE6 ...TAPE SET, SIDE COWLING (LH) (BE6 - GRAY/WHITE/ORANGE/SILVER/BLACK/BLACK)...TAPE SET, SIDE COWLING (LH) (BE6 - GRAY/WHITE/ORANGE/SILVER/BLACK/BLACK)
-
1194477-14J01 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1309321-06013 CUSHIONCUSHION
-
1494488-14J00 SCREW, SIDE COWLING (LH)SCREW, SIDE COWLING (LH)
-
1594489-14J00 SPACER, SIDE COWLING (LH)SPACER, SIDE COWLING (LH)
-
1609320-09016 CUSHIONCUSHION
-
1794498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
1894570-14J00 COVER, SIDE COWLING (RH)COVER, SIDE COWLING (RH)
-
1994443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2094580-14J00 COVER, SIDE COWLING (LH)COVER, SIDE COWLING (LH)
-
2194443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2294491-14J00 BRACKET, COVER SIDE (RH)BRACKET, COVER SIDE (RH)
-
2309139-05064 SCREW (5X13)SCREW (5X13)
-
2409139-06062 SCREW (6X12)SCREW (6X12)
-
2509320-08013 CUSHIONCUSHION
-
2609320-08028 CUSHIONCUSHION
-
2794612-31F00 CUSHION, BRACKET COVER (RH)CUSHION, BRACKET COVER (RH)
-
2894479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
