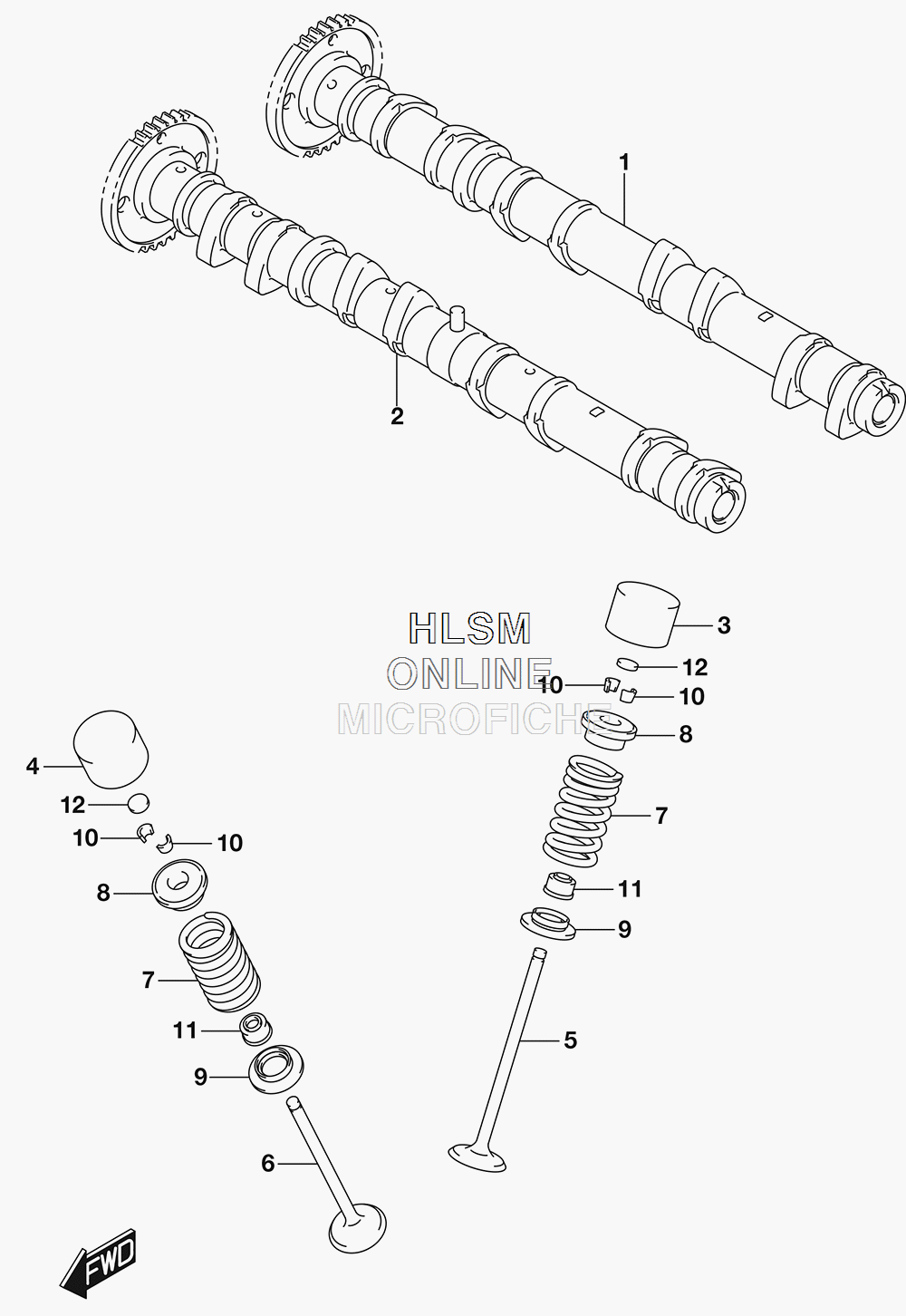

CAMSHAFT W/ VALVES для Suzuki GSX-R600 - 2017 года выпуска
-
№АртикулНазвание
-
112710-14J00 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
212720-14J00 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
312891-47H00 TAPPET, INTAKETAPPET, INTAKE
-
412891-44G00 TAPPET, EXHAUSTTAPPET, EXHAUST
-
512911-37H00 VALVE, INTAKEVALVE, INTAKE
-
612912-14J00 VALVE, EXHAUSTVALVE, EXHAUST
-
712921-37H00 SPRING, VALVESPRING, VALVE
-
812931-29G00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
912933-29G00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1012932-32C00 COTTER, VALVECOTTER, VALVE
-
1109289-04002 OIL SEAL (4.5X10X8)OIL SEAL (4.5X10X8)
-
12-112892-05C00-120 SHIM, TAPPET (T:1.20)SHIM, TAPPET (T:1.20)
-
12-212892-05C00-125 SHIM, TAPPET (T:1.25)SHIM, TAPPET (T:1.25)
-
12-312892-05C00-130 SHIM, TAPPET (T:1.30)SHIM, TAPPET (T:1.30)
-
12-412892-05C00-135 SHIM, TAPPET (T:1.35)SHIM, TAPPET (T:1.35)
-
12-512892-05C00-140 SHIM, TAPPET (T:1.40)SHIM, TAPPET (T:1.40)
-
12-612892-05C00-145 SHIM, TAPPET (T:1.45)SHIM, TAPPET (T:1.45)
-
12-712892-05C00-150 SHIM, TAPPET (T:1.50)SHIM, TAPPET (T:1.50)
-
12-812892-05C00-155 SHIM, TAPPET (T:1.55)SHIM, TAPPET (T:1.55)
-
12-912892-05C00-160 SHIM, TAPPET (T:1.60)SHIM, TAPPET (T:1.60)
-
12-1012892-05C00-165 SHIM, TAPPET (T:1.65)SHIM, TAPPET (T:1.65)
-
12-1112892-05C00-170 SHIM, TAPPET (T:1.70)SHIM, TAPPET (T:1.70)
-
12-1212892-05C00-175 SHIM, TAPPET (T:1.75)SHIM, TAPPET (T:1.75)
-
12-1312892-05C00-180 SHIM, TAPPET (T:1.80)SHIM, TAPPET (T:1.80)
-
12-1412892-05C00-185 SHIM, TAPPET (T:1.85)SHIM, TAPPET (T:1.85)
-
12-1512892-05C00-190 SHIM, TAPPET (T:1.90)SHIM, TAPPET (T:1.90)
-
12-1612892-05C00-195 SHIM, TAPPET (T:1.95)SHIM, TAPPET (T:1.95)
-
12-1712892-05C00-200 SHIM, TAPPET (T:2.00)SHIM, TAPPET (T:2.00)
-
12-1812892-05C00-205 SHIM, TAPPET (T:2.05)SHIM, TAPPET (T:2.05)
-
12-1912892-05C00-210 SHIM, TAPPET (T:2.10)SHIM, TAPPET (T:2.10)
-
12-2012892-05C00-215 SHIM, TAPPET (T:2.15)SHIM, TAPPET (T:2.15)
-
12-2112892-05C00-220 SHIM, TAPPET (T:2.20)SHIM, TAPPET (T:2.20)
-
1312800-05830 SHIM SET, TAPPET T:1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.14 (OPT) (NOT ILLUSTRATED)SHIM SET, TAPPET T:1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.14 (OPT) (NOT ILLUSTRATED)
-
1499000-69491 ...CASE, TAPPET SHIM (OPT) (NOT ILLUSTRATED)...CASE, TAPPET SHIM (OPT) (NOT ILLUSTRATED)
