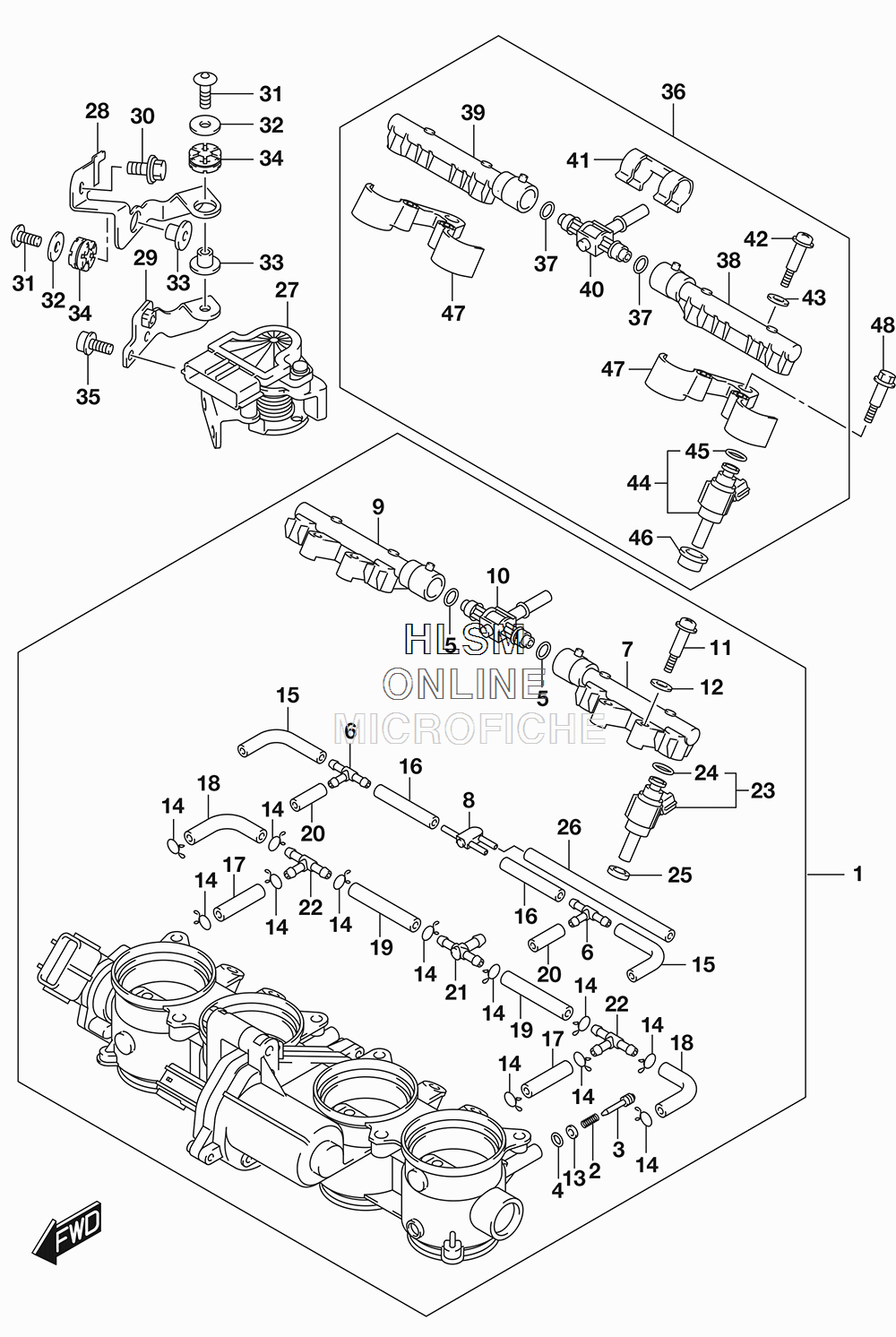

THROTTLE BODY (CALIF) для Suzuki GSX-R1000RZ - 2017 года выпуска
-
№АртикулНазвание
-
113405-17K10 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
313269-33E00 ...SCREW...SCREW
-
413295-29900 ...O RING...O RING
-
513374-32G00 ...O RING...O RING
-
613685-02FA0 ...NIPPLE...NIPPLE
-
713471-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
813471-18H00 ...JOINT...JOINT
-
913472-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
1013473-17K00 ...NIPPLE ASSY...NIPPLE ASSY
-
1113601-29G00 ...SCREW...SCREW
-
1213602-29G00 ...PACKING...PACKING
-
1313606-47A00 ...WASHER...WASHER
-
1413671-29G00 ...CLIP...CLIP
-
1513681-39F00-060 ...HOSE (3.2X7.4X60)...HOSE (3.2X7.4X60)
-
1613683-10F60 ...HOSE (L:425) (L:425->50)...HOSE (L:425) (L:425->50)
-
1713683-04K10 ...HOSE (8.5X4.5X30)...HOSE (8.5X4.5X30)
-
1813683-17K00 ...HOSE...HOSE
-
1913683-17K10 ...HOSE...HOSE
-
2013683-10F60 ...HOSE (L:425) (L:425->25)...HOSE (L:425) (L:425->25)
-
2113685-29G00 ...NIPPLE...NIPPLE
-
2213685-38420 ...NIPPLE...NIPPLE
-
2315710-04K00 ...INJECTOR ASSY...INJECTOR ASSY
-
2415717-58B00 ......O RING......O RING
-
2515722-14J00 ...SEAL...SEAL
-
2609355-30705-600 ...HOSE (3X7X600) (L:600->135)...HOSE (3X7X600) (L:600->135)
-
2713500-17K00 BODY ASSY, ACCELERATORBODY ASSY, ACCELERATOR
-
2813571-17K00 BRACKET, ACCEL SENSOR NO.1BRACKET, ACCEL SENSOR NO.1
-
2913572-17K00 BRACKET, ACCEL SENSOR NO.2BRACKET, ACCEL SENSOR NO.2
-
3009116-06197 BOLT (6X12)BOLT (6X12)
-
3109139-06208 BOLTBOLT
-
3209160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
3309180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
3409320-10055 CUSHIONCUSHION
-
3507120-0612B BOLTBOLT
-
3615900-17K00 BODY ASSY, 2ND INJECTORBODY ASSY, 2ND INJECTOR
-
3713374-32G00 ...O RING...O RING
-
3813471-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
3913472-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
4013473-17K00 ...NIPPLE ASSY...NIPPLE ASSY
-
4113474-17K00 ...CLIP...CLIP
-
4213601-29G00 ...SCREW...SCREW
-
4313602-29G00 ...PACKING...PACKING
-
4415710-17K10 ...INJECTOR ASSY...INJECTOR ASSY
-
4515717-58B00 ......O RING......O RING
-
4615722-17K00 ...INSULATOR...INSULATOR
-
4715910-17K00 ...BRACKET, 2ND INJECTOR...BRACKET, 2ND INJECTOR
-
4809111-06250 BOLTBOLT
