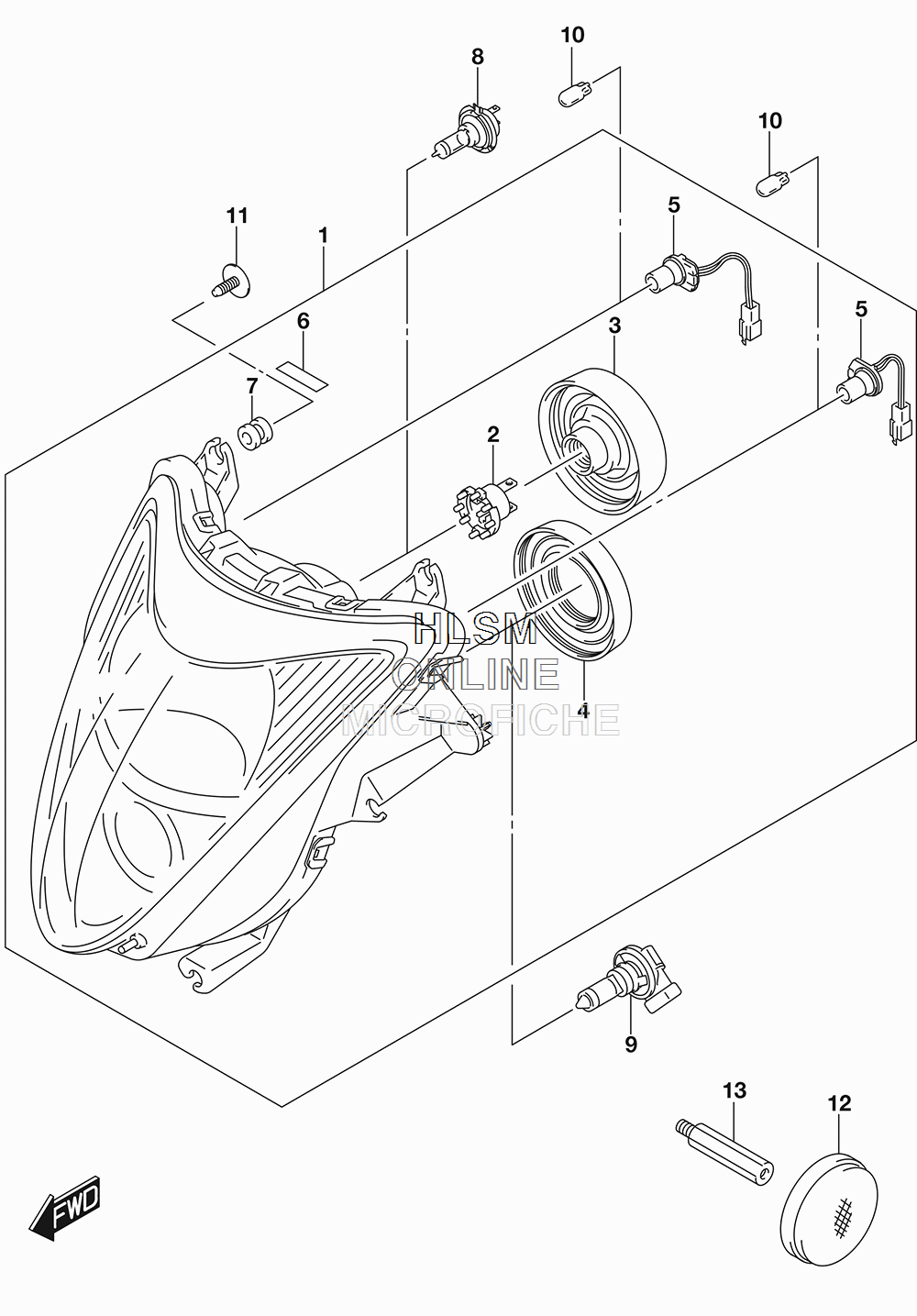

HEADLAMP (EXCEPT CALIF.) для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
135100-15H31-999 HEADLAMP ASSYHEADLAMP ASSY
-
235175-24F00 ...ADAPTOR ASSY...ADAPTOR ASSY
-
335173-14G00 ...SOCKET, COVER...SOCKET, COVER
-
435173-15H00 ...SOCKET, COVER...SOCKET, COVER
-
536118-15H00 ...CORD ASSY...CORD ASSY
-
694443-21H00 ...TAPE (5X20X0.4)...TAPE (5X20X0.4)
-
709320-09039 ...CUSHION...CUSHION
-
809471-12188 BULB (12V,55W)BULB (12V,55W)
-
909471-12222 BULB (12V,65W)BULB (12V,65W)
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1109136-05062 SCREW (5X15)SCREW (5X15)
-
1235950-14A11 REFLEX REFLECTOR ASSY, FR SIDREFLEX REFLECTOR ASSY, FR SID
-
1309119-06104 BOLTBOLT
