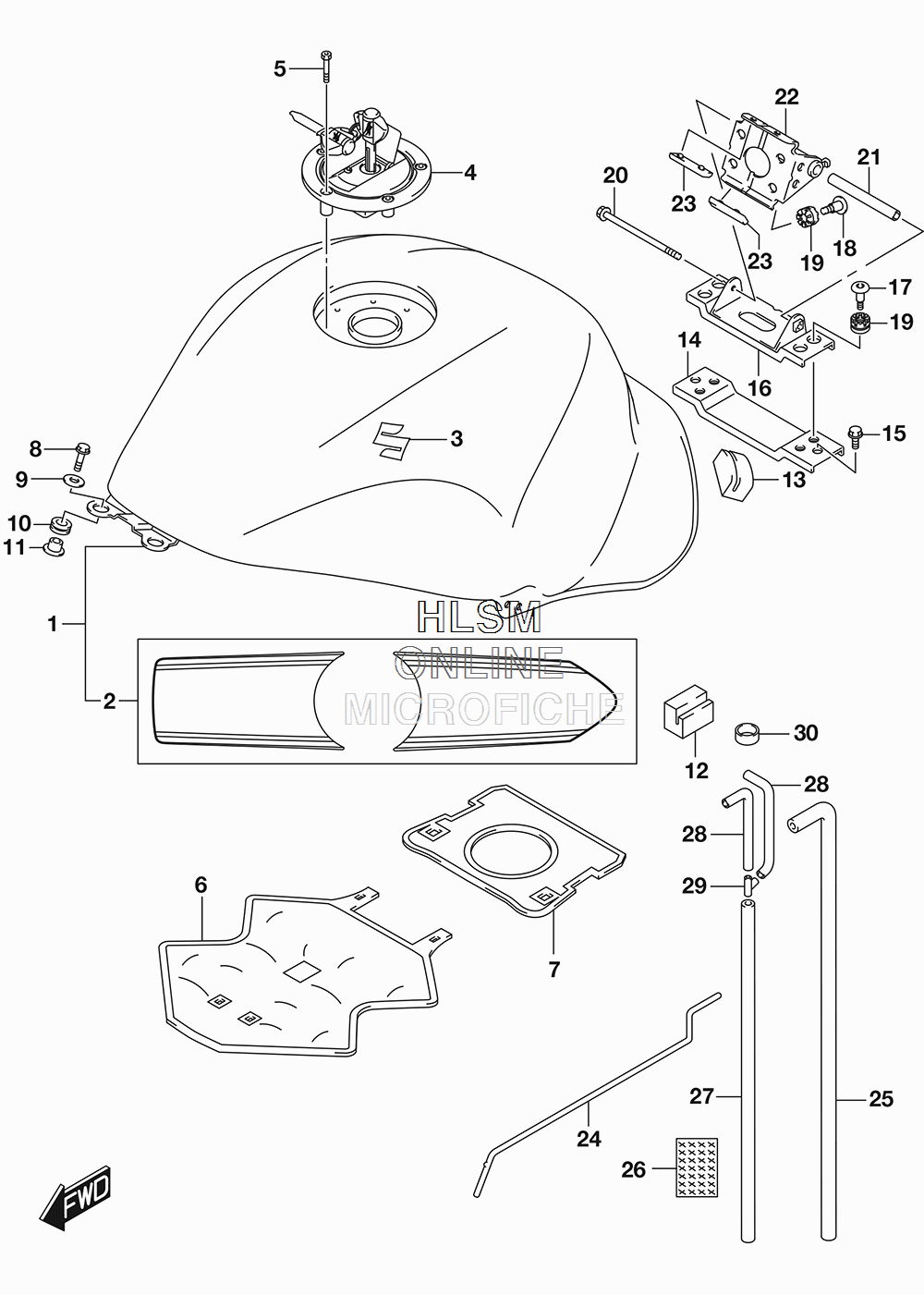

FUEL TANK (CANADA) для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-15HJ0-YVB TANK ASSY, FUEL (FOR YVB - BLACK)TANK ASSY, FUEL (FOR YVB - BLACK)
-
1-244100-15HJ0-YWW TANK ASSY, FUEL (YWW - WHITE FOR AGT)TANK ASSY, FUEL (YWW - WHITE FOR AGT)
-
1-344100-15HJ0-YKY TANK ASSY, FUEL (YKY - BLUE FOR BBD)TANK ASSY, FUEL (YKY - BLUE FOR BBD)
-
2-168110-15H50-BF2 ...TAPE SET (BF2 - BLACK/GRAY FOR YVB)...TAPE SET (BF2 - BLACK/GRAY FOR YVB)
-
2-268110-15H50-AGT ...TAPE SET (AGT - BLACK/WHITE FOR YWW)...TAPE SET (AGT - BLACK/WHITE FOR YWW)
-
2-368110-15H50-AJP ...TAPE SET (AJP - BLUE/WHITE FOR YKY)...TAPE SET (AJP - BLUE/WHITE FOR YKY)
-
368111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
444200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509106-05017 BOLT (5X20)BOLT (5X20)
-
644191-15H00 SHIELD, FUEL TANK HEAT NO.1SHIELD, FUEL TANK HEAT NO.1
-
744191-15H10 SHIELD, FUEL TANK HEAT NO.2SHIELD, FUEL TANK HEAT NO.2
-
809139-06204 SCREW (6X30)SCREW (6X30)
-
909160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1044511-16G00 CUSHIONCUSHION
-
1144512-16G00 SPACERSPACER
-
1244541-24F00 CUSHION, SIDECUSHION, SIDE
-
1344543-15H00 CUSHION, REARCUSHION, REAR
-
1444555-15H00 BRACKET, FUEL TANK REAR NO.3BRACKET, FUEL TANK REAR NO.3
-
1501550-0816A BOLTBOLT
-
1644550-15H01 BRACKET, FUEL TANK REAR NO.2BRACKET, FUEL TANK REAR NO.2
-
1709139-06191 SCREW (6X22)SCREW (6X22)
-
1809139-06191 SCREW (6X22)SCREW (6X22)
-
1909320-08071 CUSHIONCUSHION
-
2007120-0695A BOLTBOLT
-
2144561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2244530-15H01 BRACKET, FUEL TANK REAR NO.1BRACKET, FUEL TANK REAR NO.1
-
2345149-44G00 CUSHION, BRACKETCUSHION, BRACKET
-
2444574-35F00 STAY (OPT)STAY (OPT)
-
2544423-15H00 HOSE, DRAINHOSE, DRAIN
-
2644427-15H00 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
-
2744424-15H00 HOSE, BREATHERHOSE, BREATHER
-
2844424-15H10 HOSE, BREATHER NO.2HOSE, BREATHER NO.2
-
2909367-06007 3 WAY3 WAY
-
3009352-12163-600 HOSE (12X16X600) (L:600->10)HOSE (12X16X600) (L:600->10)
