GASKET SET для Suzuki DR650S - 2017 года выпуска

  • №
    Артикул
    Название
  • 1

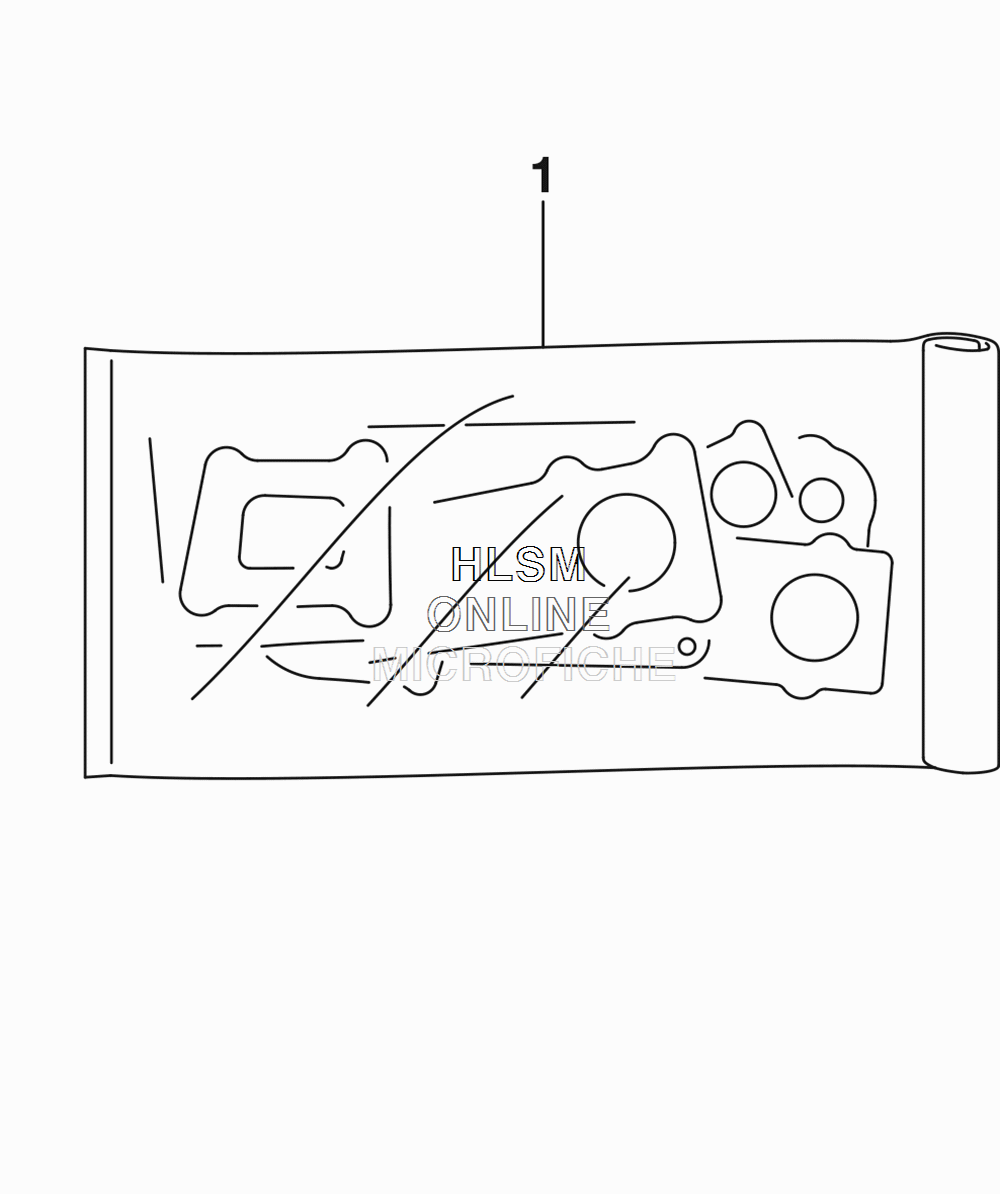

    11400-32874 GASKET SET (OPT)
    GASKET SET (OPT)
  • 2
    11141-32E00 ...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
    ...GASKET, CYLINDER HEAD (NOT ILLUSTRATED)
  • 3
    11177-44B01 ...O RING, INSPECTION CAP (NOT ILLUSTRATED)
    ...O RING, INSPECTION CAP (NOT ILLUSTRATED)
  • 4
    11241-04F20 ...GASKET, CYLINDER (NOT ILLUSTRATED)
    ...GASKET, CYLINDER (NOT ILLUSTRATED)
  • 5
    11482-32E00 ...GASKET, CLUTCH COVER (NOT ILLUSTRATED)
    ...GASKET, CLUTCH COVER (NOT ILLUSTRATED)
  • 6
    11483-32E00 ...GASKET, MAGNETO COVER (NOT ILLUSTRATED)
    ...GASKET, MAGNETO COVER (NOT ILLUSTRATED)
  • 7
    11485-12D01 ...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)
    ...GASKET, GEAR SHIFT COVER (NOT ILLUSTRATED)
  • 8
    12837-24A10 ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
    ...GASKET, TENSIONER ADJUSTER (NOT ILLUSTRATED)
  • 9
    14181-22D01 ...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
    ...GASKET, EXHAUST PIPE (NOT ILLUSTRATED)
  • 10
    09280-15007 ...O RING (D:2.4,ID:15.8) (NOT ILLUSTRATED)
    ...O RING (D:2.4,ID:15.8) (NOT ILLUSTRATED)
  • 11
    09280-17003 ...O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
    ...O RING (D:3.1,ID:16.8) (NOT ILLUSTRATED)
  • 12
    09280-46002 ...O RING (D:2.4,ID:45.7) (NOT ILLUSTRATED)
    ...O RING (D:2.4,ID:45.7) (NOT ILLUSTRATED)
  • 13
    09280-72001 ...O RING (D:2.4,ID:73) (NOT ILLUSTRATED)
    ...O RING (D:2.4,ID:73) (NOT ILLUSTRATED)
