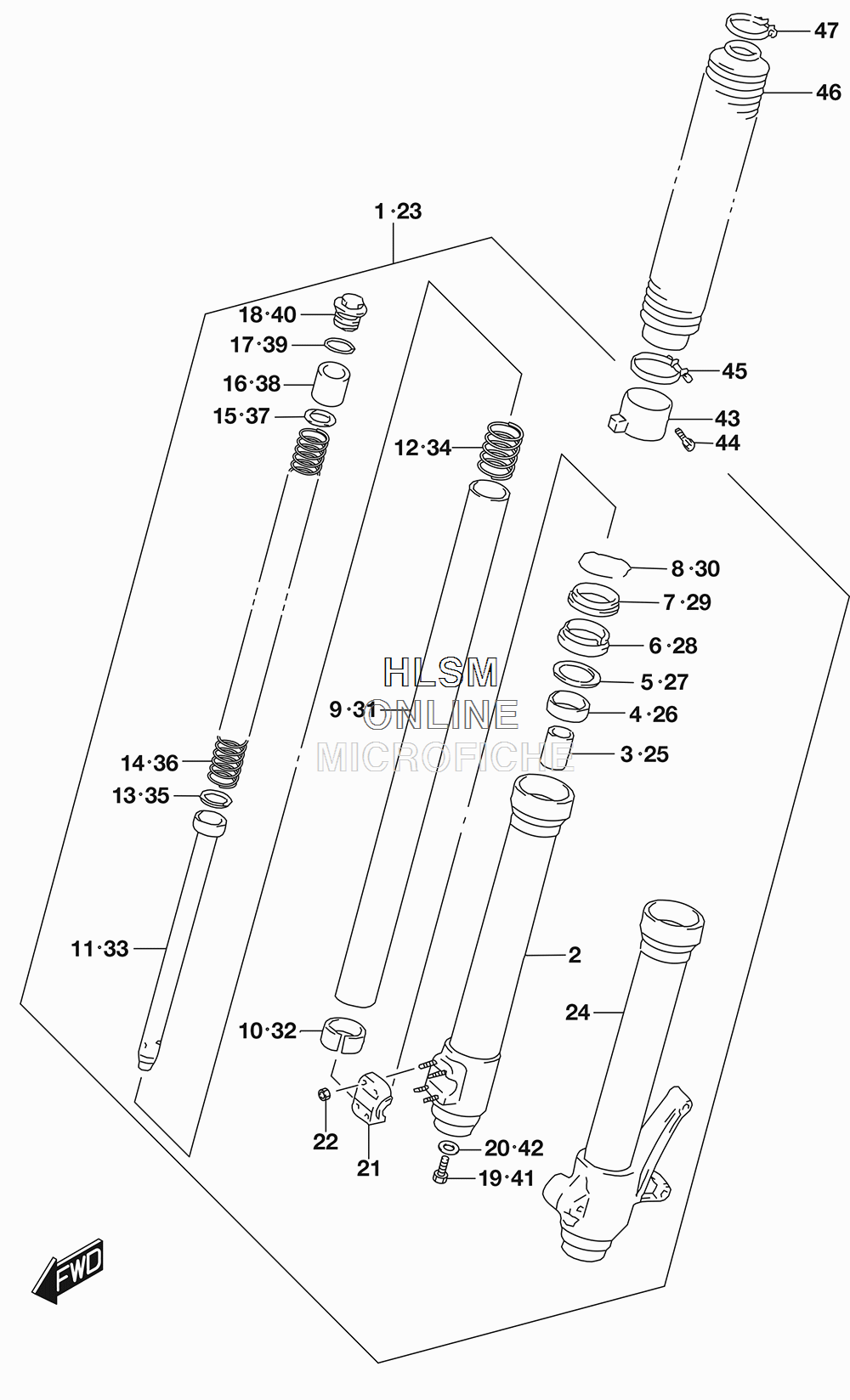

SUSPENSION - FRONT FORK DAMPER для Suzuki DR650S - 2017 года выпуска
-
№АртикулНазвание
-
151103-32E00 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251130-32E00 ...TUBE, OUTER (RH)...TUBE, OUTER (RH)
-
351195-06C00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
451167-40C00 ...METAL, SLIDE...METAL, SLIDE
-
551158-14200 ...WASHER...WASHER
-
651153-14330 ...OIL SEAL...OIL SEAL
-
751173-14330 ...SEAL, DUST...SEAL, DUST
-
851156-14200 ...RING, SNAP...RING, SNAP
-
951110-32E00 ...TUBE, INNER...TUBE, INNER
-
1051121-40C00 ...PISTON...PISTON
-
1151190-32E00 ...CYLINDER...CYLINDER
-
1251177-14330 ...SPRING...SPRING
-
1351196-31D00 ...RING...RING
-
1451171-32E00 ...SPRING...SPRING
-
1551172-32E00 ...WASHER...WASHER
-
1651176-32E00 ...SPACER...SPACER
-
1751117-14200 ...O RING...O RING
-
1851351-31D00 ...CAP...CAP
-
1951147-16510 ...BOLT...BOLT
-
2051148-41310 ...GASKET...GASKET
-
2151132-32E00 ...HOLDER, AXLE (RH)...HOLDER, AXLE (RH)
-
2251168-32E40 ...NUT, HOLDER AXLE...NUT, HOLDER AXLE
-
2351104-32E00 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2451140-32E00 ...TUBE, OUTER (LH)...TUBE, OUTER (LH)
-
2551195-06C00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
2651167-40C00 ...METAL, SLIDE...METAL, SLIDE
-
2751158-14200 ...WASHER...WASHER
-
2851153-14330 ...OIL SEAL...OIL SEAL
-
2951173-14330 ...SEAL, DUST...SEAL, DUST
-
3051156-14200 ...RING, SNAP...RING, SNAP
-
3151110-32E00 ...TUBE, INNER...TUBE, INNER
-
3251121-40C00 ...PISTON...PISTON
-
3351190-32E00 ...CYLINDER...CYLINDER
-
3451177-14330 ...SPRING...SPRING
-
3551196-31D00 ...RING...RING
-
3651171-32E00 ...SPRING...SPRING
-
3751172-32E00 ...WASHER...WASHER
-
3851176-32E00 ...SPACER...SPACER
-
3951117-14200 ...O RING...O RING
-
4051351-31D00 ...CAP...CAP
-
4151147-16510 ...BOLT...BOLT
-
4251148-41310 ...GASKET...GASKET
-
4351203-32E00 GUIDE, BOOTGUIDE, BOOT
-
4451579-32E40 BOLT, GUIDE BOOTBOLT, GUIDE BOOT
-
4551576-00B00 BAND, BOOT LOWERBAND, BOOT LOWER
-
4651571-32E00-019 BOOT (019 - BLACK)BOOT (019 - BLACK)
-
4751575-32E00 BAND, BOOT UPPERBAND, BOOT UPPER
