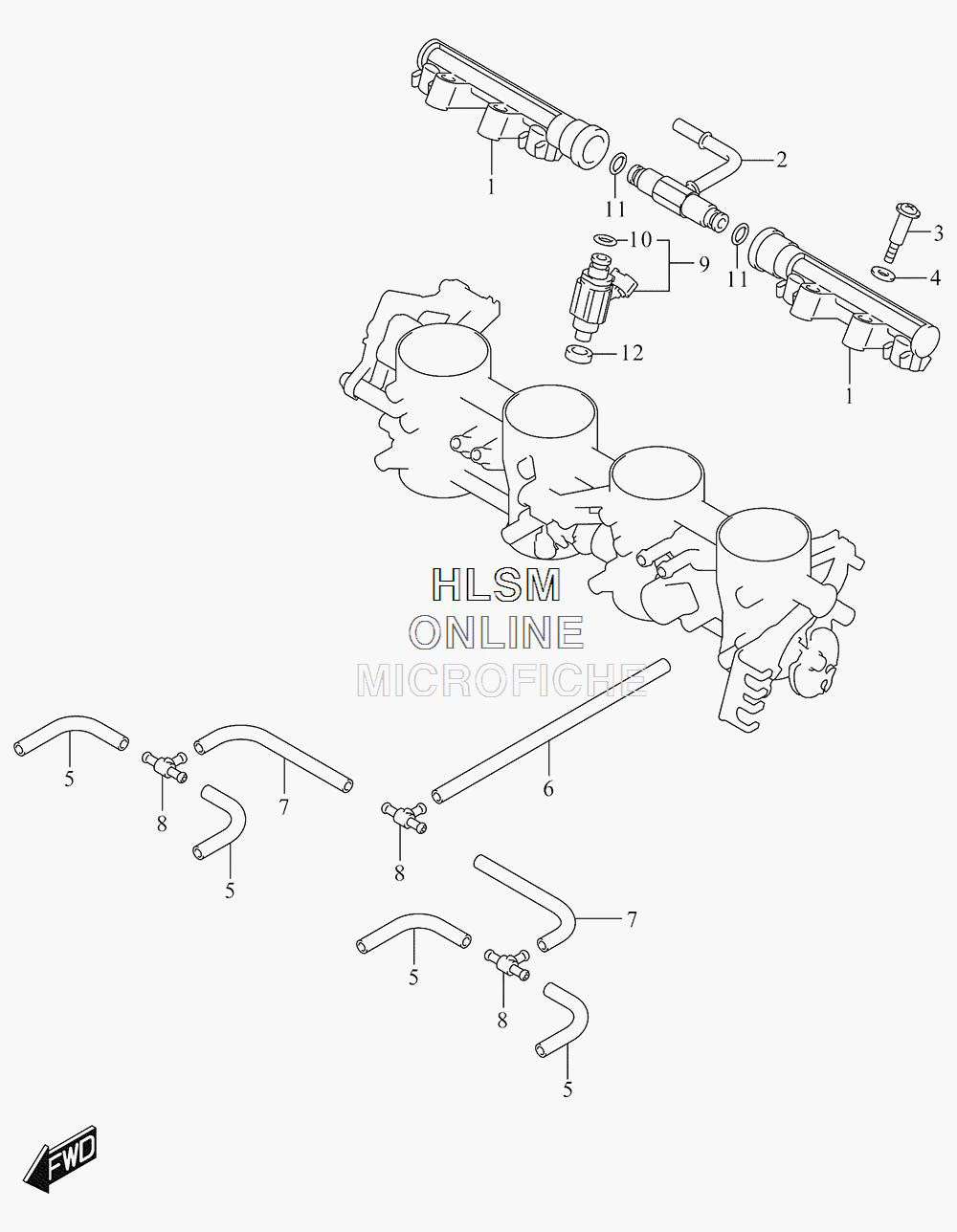

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-S750A L6 - 2016 года выпуска`
-
№АртикулНазвание
-
113473-08J00 PIPE, DELIVERYPIPE, DELIVERY
-
213473-29G00 NIPPLE ASSYNIPPLE ASSY
-
313601-29G00 SCREWSCREW
-
413602-29G00 PACKINGPACKING
-
513681-39F00-060 HOSEHOSE
-
613683-08J00 HOSEHOSE
-
713683-08J10 HOSEHOSE
-
813685-02FA0 NIPPLENIPPLE
-
915710-14J00 INJECTOR ASSYINJECTOR ASSY
-
1015717-58B00 ...O RING...O RING
-
1115721-08J00 O RINGO RING
-
1215722-14J00 SEALSEAL
