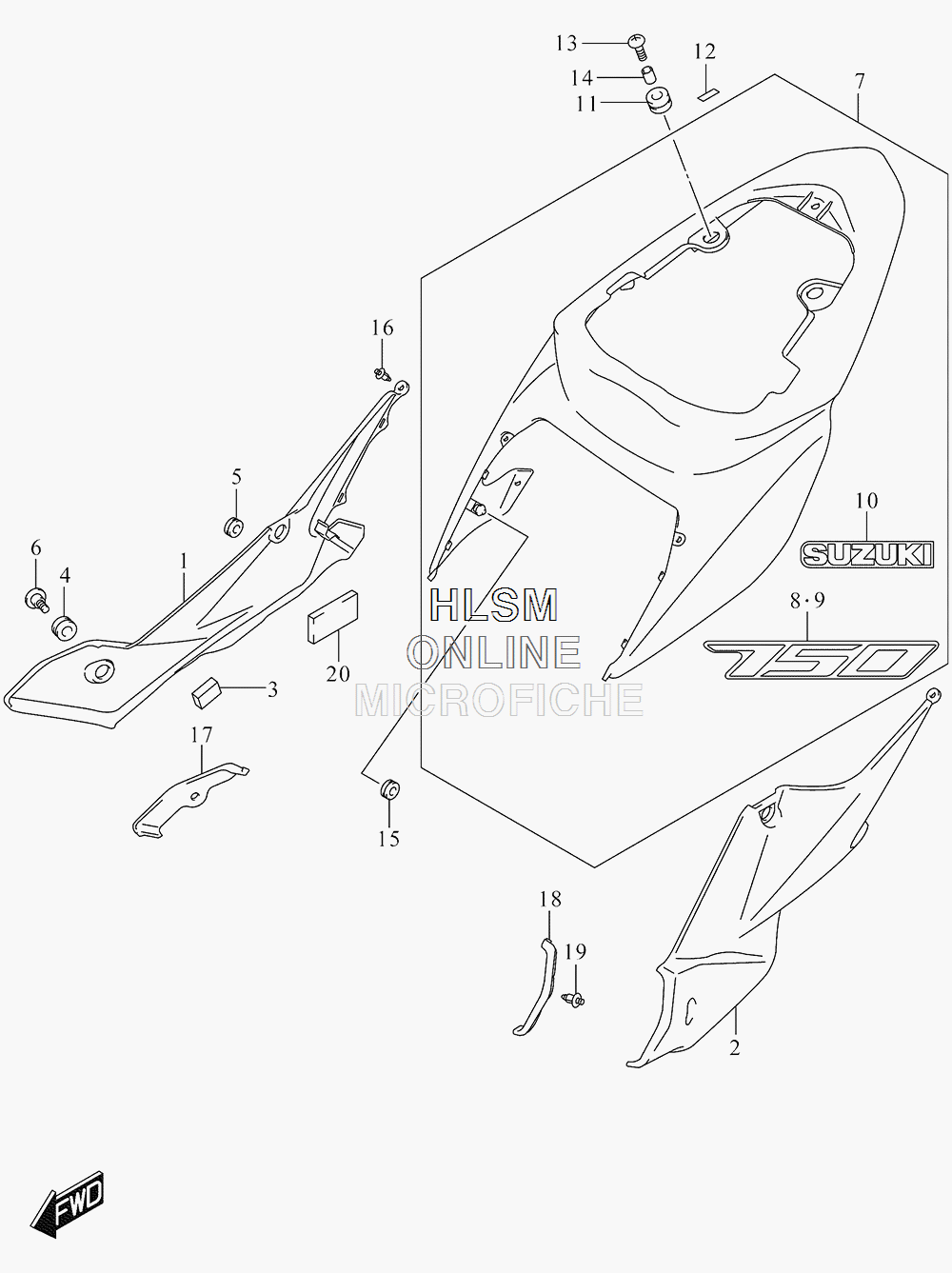

FRAME COVER (FOR YKV-AJX) для Suzuki GSX-S750A L6 - 2016 года выпуска`
-
№АртикулНазвание
-
147511-08J00-291 COVER, FRAME FRONT RIGHT HAND (BLACK)COVER, FRAME FRONT RIGHT HAND (BLACK)
-
247611-08J00-291 COVER, FRAME FRONT LEFT HAND (BLACK)COVER, FRAME FRONT LEFT HAND (BLACK)
-
394422-06G00 CUSHIONCUSHION
-
409320-09016 CUSHIONCUSHION
-
547113-37H00 CUSHIONCUSHION
-
647118-08J00 SCREW, FRAME COVER FRONTSCREW, FRAME COVER FRONT
-
747310-08J00-AJX COVER, FRAME CENTER (WHITE) (FOR AJX)COVER, FRAME CENTER (WHITE) (FOR AJX)
-
747310-08J20-4TX COVER, FRAME CENTER (BLACK) (FOR YKV)COVER, FRAME CENTER (BLACK) (FOR YKV)
-
868161-08J00-AHS ...EMBLEM, ''750'' RIGHT HAND (BLACK/WHITE) (FOR AJX)...EMBLEM, ''750'' RIGHT HAND (BLACK/WHITE) (FOR AJX)
-
868161-08J00-A39 ...EMBLEM, ''750'' RIGHT HAND (RED/BLACK) (FOR 4TX)...EMBLEM, ''750'' RIGHT HAND (RED/BLACK) (FOR 4TX)
-
968171-08J00-AHS ...EMBLEM, ''750'' LEFT HAND (BLACK/WHITE) (FOR AJX)...EMBLEM, ''750'' LEFT HAND (BLACK/WHITE) (FOR AJX)
-
968171-08J00-A39 ...EMBLEM, ''750'' LEFT HAND (RED/BLACK) (FOR 4TX)...EMBLEM, ''750'' LEFT HAND (RED/BLACK) (FOR 4TX)
-
1068171-28H00-YU8 ...EMBLEM, ''SUZUKI'' (GRAY) (FOR AJX)...EMBLEM, ''SUZUKI'' (GRAY) (FOR AJX)
-
1068171-28H10-CTY ...EMBLEM, ''SUZUKI'' (FOR 4TX)...EMBLEM, ''SUZUKI'' (FOR 4TX)
-
1147312-37H00 CUSHIONCUSHION
-
1294443-06G00 TAPE, FRAME COVER CENTERTAPE, FRAME COVER CENTER
-
1309136-06105 SCREW (6X20)SCREW (6X20)
-
1409180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1509320-08018 CUSHIONCUSHION
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1747711-08J00 COVER, FRAME TOP (RH)COVER, FRAME TOP (RH)
-
1847811-08J00 COVER, FRAME TOP (RH)COVER, FRAME TOP (RH)
-
1909409-07333 CLIPCLIP
-
2033652-21G10 CUSHION, FUEL TANK COVER SIDECUSHION, FUEL TANK COVER SIDE
