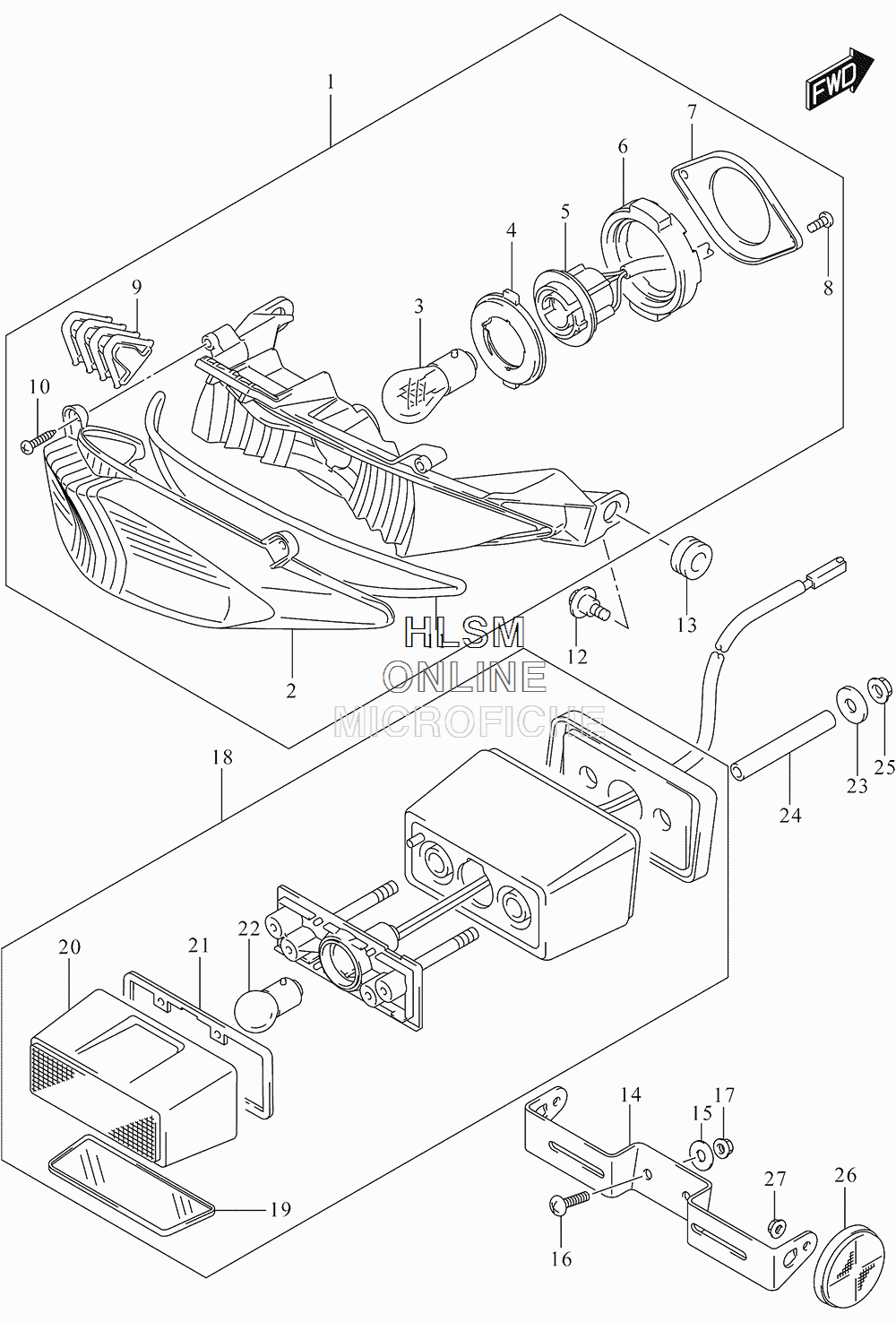

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki GSF1250SA L6 BANDIT 1250S ABS - 2016 года выпуска`
-
№АртикулНазвание
-
135710-38G51 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
235712-38G50 ...LENS...LENS
-
309471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
435716-48B21 ...PLATE, NO.1...PLATE, NO.1
-
535718-38G00 ...SOCKET AND CORD...SOCKET AND CORD
-
635765-48B21 ...CUSHION...CUSHION
-
735736-48B21 ...PLATE, NO.2...PLATE, NO.2
-
803211-0412A ...SCREW...SCREW
-
935716-38G00 ...CUSHION...CUSHION
-
1003211-0416A ...SCREW...SCREW
-
1135713-38G00 ...GASKET...GASKET
-
1209139-05080 SCREW (5X16.2)SCREW (5X16.2)
-
1309320-10054 CUSHIONCUSHION
-
1435927-38G50 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1509160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1602142-0616A SCREWSCREW
-
1708316-1006A NUTNUT
-
1835910-41G50 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1935912-41G01 ...LENS, LICENSE...LENS, LICENSE
-
2035917-41G00 ...COVER...COVER
-
2135913-41G00 ...GASKET...GASKET
-
2209471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
2309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2409180-06344 SPACER (6.5X9X63.5)SPACER (6.5X9X63.5)
-
2508316-1006A NUTNUT
-
2635970-14A20 REFLEX REFLECTOR ASSY, REAR SIDEREFLEX REFLECTOR ASSY, REAR SIDE
-
2708316-1005B NUTNUT
