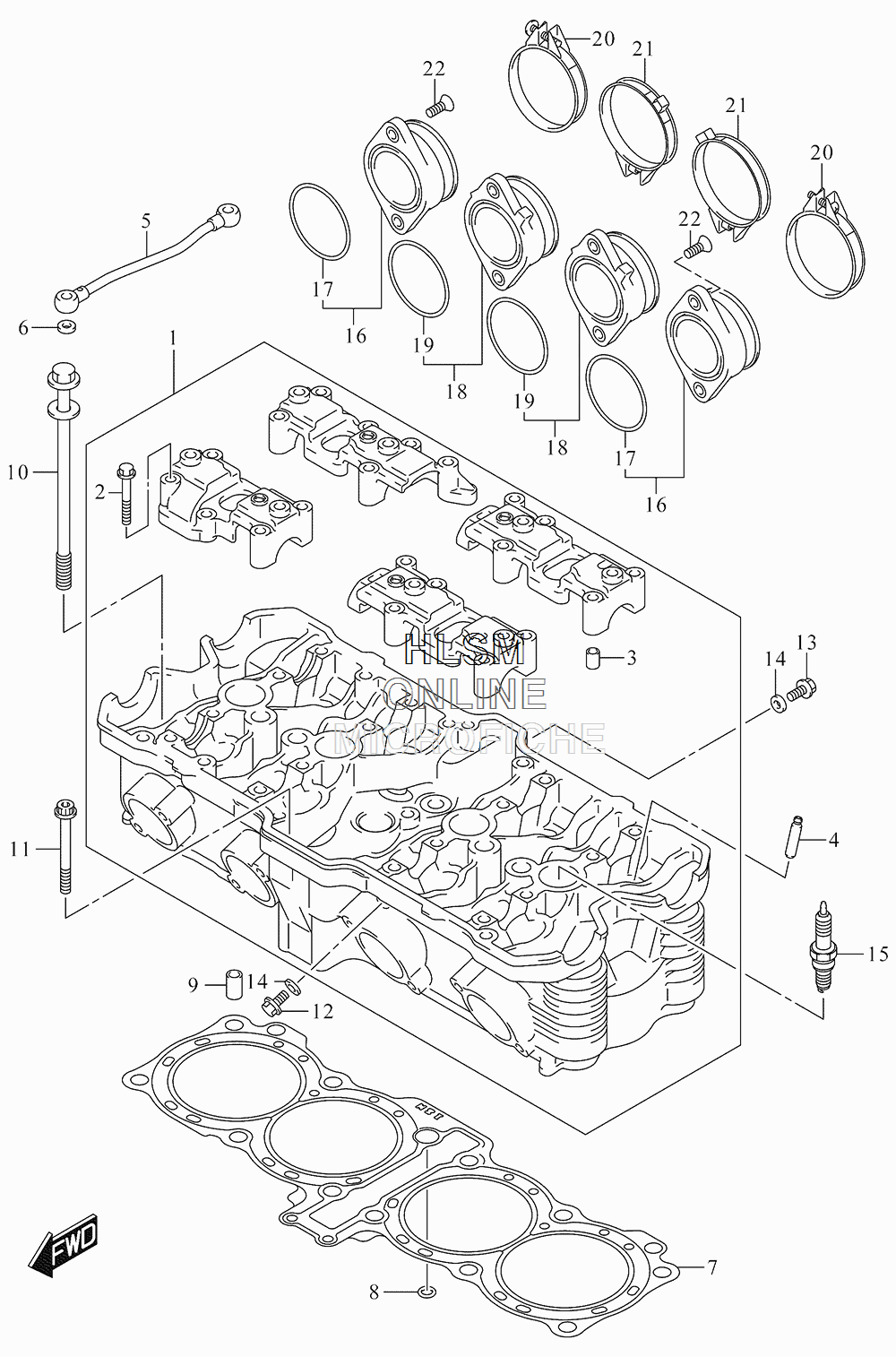

CYLINDER HEAD для Suzuki GSF1250SA L6 BANDIT 1250S ABS - 2016 года выпуска`
-
№АртикулНазвание
-
111100-18H10 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06293 ...BOLT (6X45)...BOLT (6X45)
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
411115-17E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
511131-18H00 PIPE, OILPIPE, OIL
-
608322-0106A WASHERWASHER
-
711141-18H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
811143-32F00 O RINGO RING
-
904211-11169 PINPIN
-
1011117-18H00 BOLTBOLT
-
1107120-0665B BOLTBOLT
-
1201550-0612A BOLTBOLT
-
1307120-0612B BOLTBOLT
-
1409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1509482-00516 SPARK PLUG (CR7E) (NGK)SPARK PLUG (CR7E) (NGK)
-
1509482-00515 SPARK PLUG (U22ESR-N) (DENSO)SPARK PLUG (U22ESR-N) (DENSO)
-
1509482-00528 SPARK PLUG (CR6E) (OPT NGK)SPARK PLUG (CR6E) (OPT NGK)
-
1509482-00529 SPARK PLUG (U20ESR-N) (OPT DENSO)SPARK PLUG (U20ESR-N) (OPT DENSO)
-
1509482-00456 SPARK PLUG (CR8E) (OPT NGK)SPARK PLUG (CR8E) (OPT NGK)
-
1509482-00457 SPARK PLUG (U24ESR-N) (OPT DENSO)SPARK PLUG (U24ESR-N) (OPT DENSO)
-
1613101-18H00 PIPE, INTAKE NO.1PIPE, INTAKE NO.1
-
1709280-42003 ...O RING (D:2.4,ID:41.7)...O RING (D:2.4,ID:41.7)
-
1813102-18H01 PIPE, INTAKE NO.2PIPE, INTAKE NO.2
-
1909280-42003 ...O RING (D:2.4,ID:41.7)...O RING (D:2.4,ID:41.7)
-
2013826-18H00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2113826-18H10 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2202122-0616B SCREWSCREW
