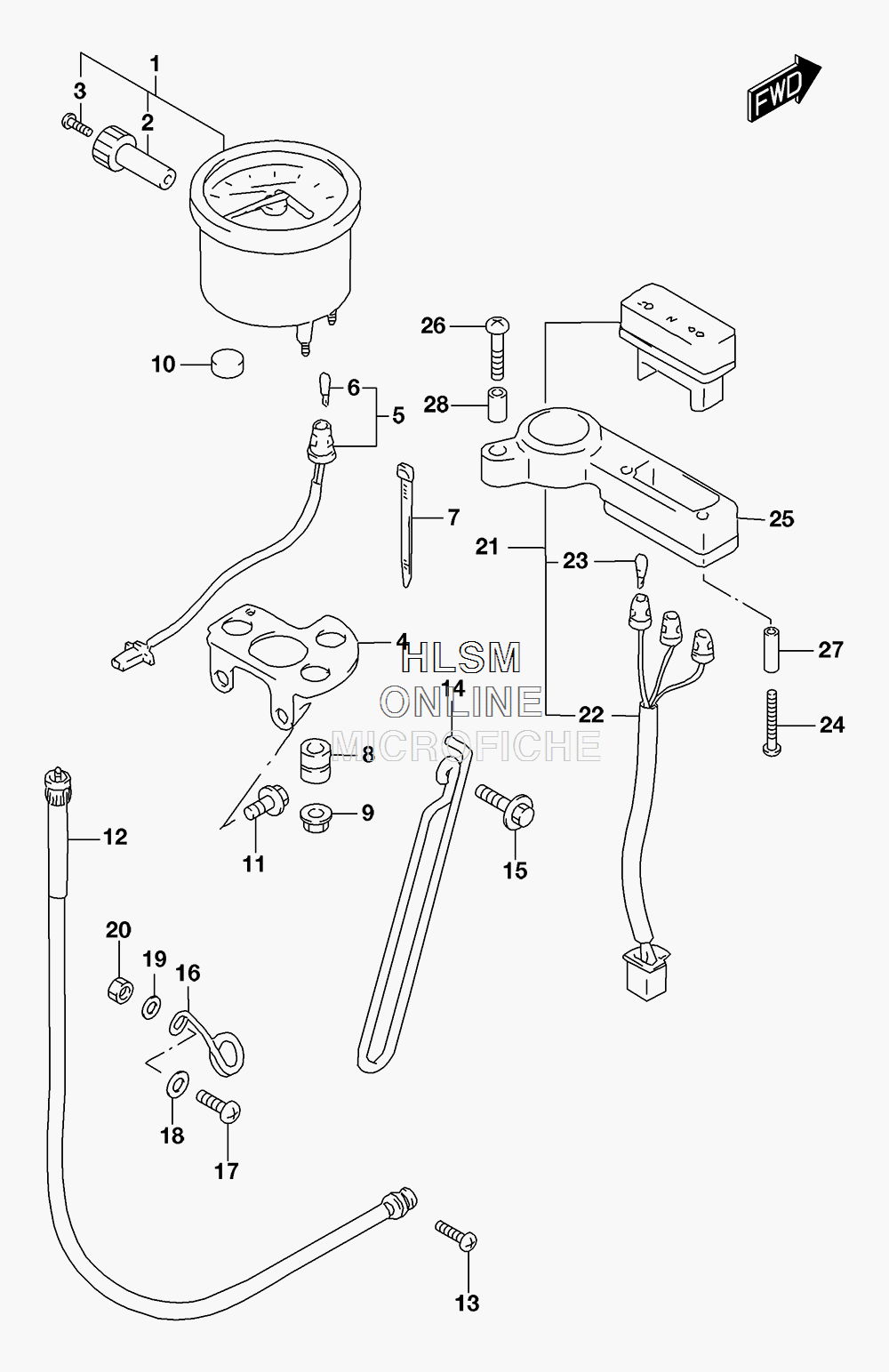

SPEEDOMETER (CAN) для Suzuki DR650SE L6 - 2016 года выпуска

№

Артикул

Название
1

34120-32E20 SPEEDOMETER (KILO)

SPEEDOMETER (KILO)
2

34124-44B30 ...KNOB, TRIP

...KNOB, TRIP
3

34184-12D00 ...SCREW, TRIP KNOB

...SCREW, TRIP KNOB
4

34950-32E10 BRACKET, METER

BRACKET, METER
5

34170-15D21 SOCKET

SOCKET
6

09471-12108 ...BULB (12V,1.7W)

...BULB (12V,1.7W)
7

34954-42A90 CLAMP

CLAMP
8

34189-30921 CUSHION

CUSHION
9

09159-06076 NUT

NUT
10

34167-42A90 CUSHION

CUSHION
11

01550-0612B BOLT

BOLT
12

34910-32E00 CABLE, SPEEDOMETER

CABLE, SPEEDOMETER
13

02112-0516B SCREW

SCREW
14

34938-14D30 GUIDE, CABLE NO.2

GUIDE, CABLE NO.2
15

09116-06167 BOLT (6X20)

BOLT (6X20)
16

34938-14D21 GUIDE, CABLE NO.1

GUIDE, CABLE NO.1
17

02142-0616B SCREW

SCREW
18

09160-06109 WASHER (6.5X18X1.6)

WASHER (6.5X18X1.6)
19

09169-06053 WASHER

WASHER
20

08310-0006B NUT

NUT
21

36380-32E10 BOX ASSY, PILOT LAMP

BOX ASSY, PILOT LAMP
22

36394-32E00 ...SOCKET, PILOT BOX

...SOCKET, PILOT BOX
23

09471-12118 ...BULB (13.5V,2W)

...BULB (13.5V,2W)
24

03511-1435B SCREW

SCREW
25

36382-32E00 HOLDER, PILOT BOX

HOLDER, PILOT BOX
26

09139-06029 SCREW (6X25)

SCREW (6X25)
27

09180-04024 SPACER (4.5X6.5X25)

SPACER (4.5X6.5X25)
28

09180-06251 SPACER (6.1X8X15.5)

SPACER (6.1X8X15.5)
