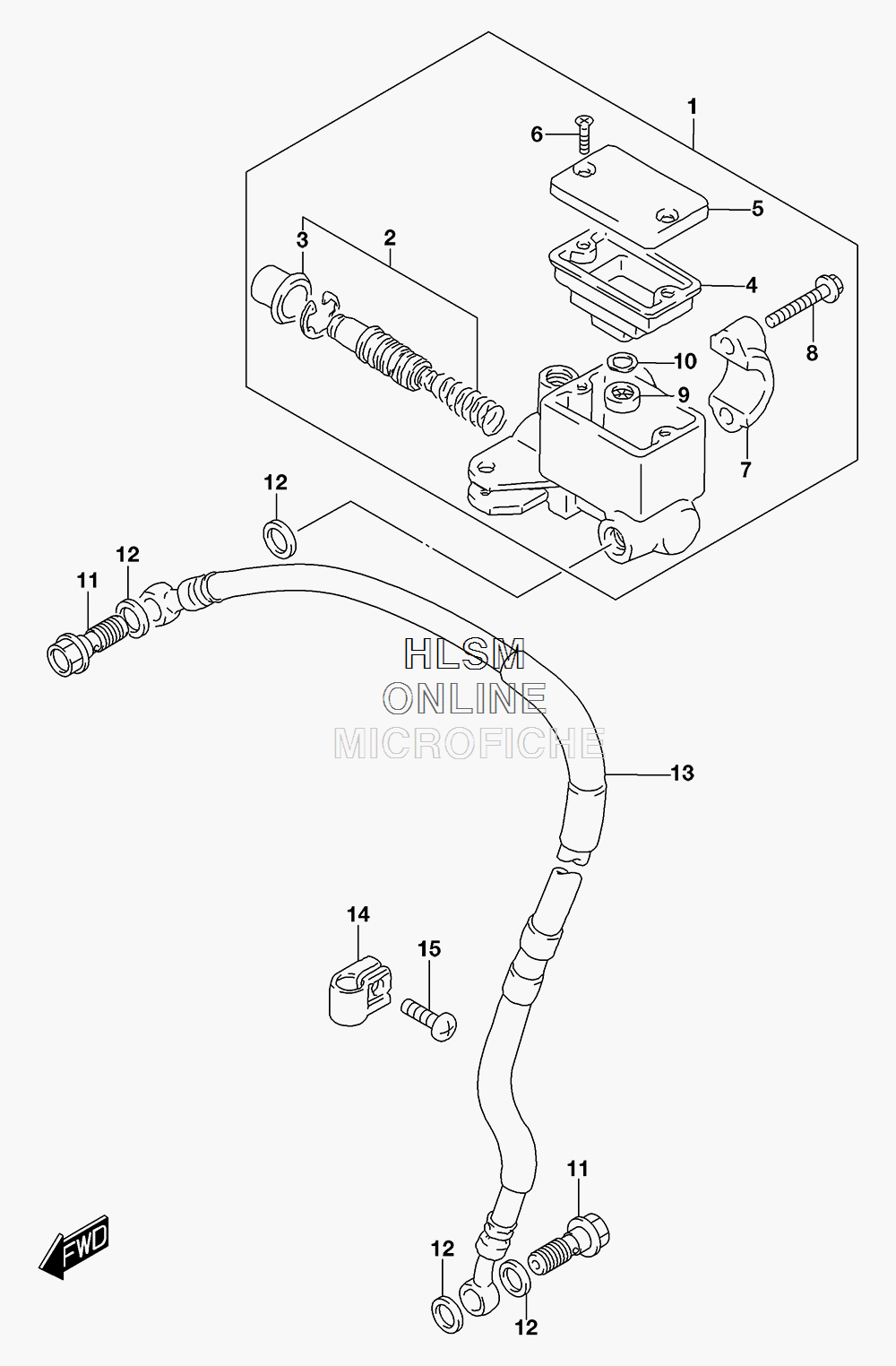

BRAKE - FRONT MASTER CYLINDER для Suzuki DR650SE L6 - 2016 года выпуска`
-
№АртикулНазвание
-
159600-31D01 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-04810 ...PISTON/CUP SET...PISTON/CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-44B00 ...DIAPHRAGM...DIAPHRAGM
-
569669-24A01 ...CAP...CAP
-
669689-49300 ...SCREW...SCREW
-
759671-36500 ...HOLDER...HOLDER
-
859675-02FA0 ...BOLT...BOLT
-
959748-15400 ...SEPARATOR...SEPARATOR
-
1059749-15400 ...PLATE...PLATE
-
1109360-10062 UNIONUNION
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-32E01 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1458621-07A20 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1502142-0620B SCREWSCREW
