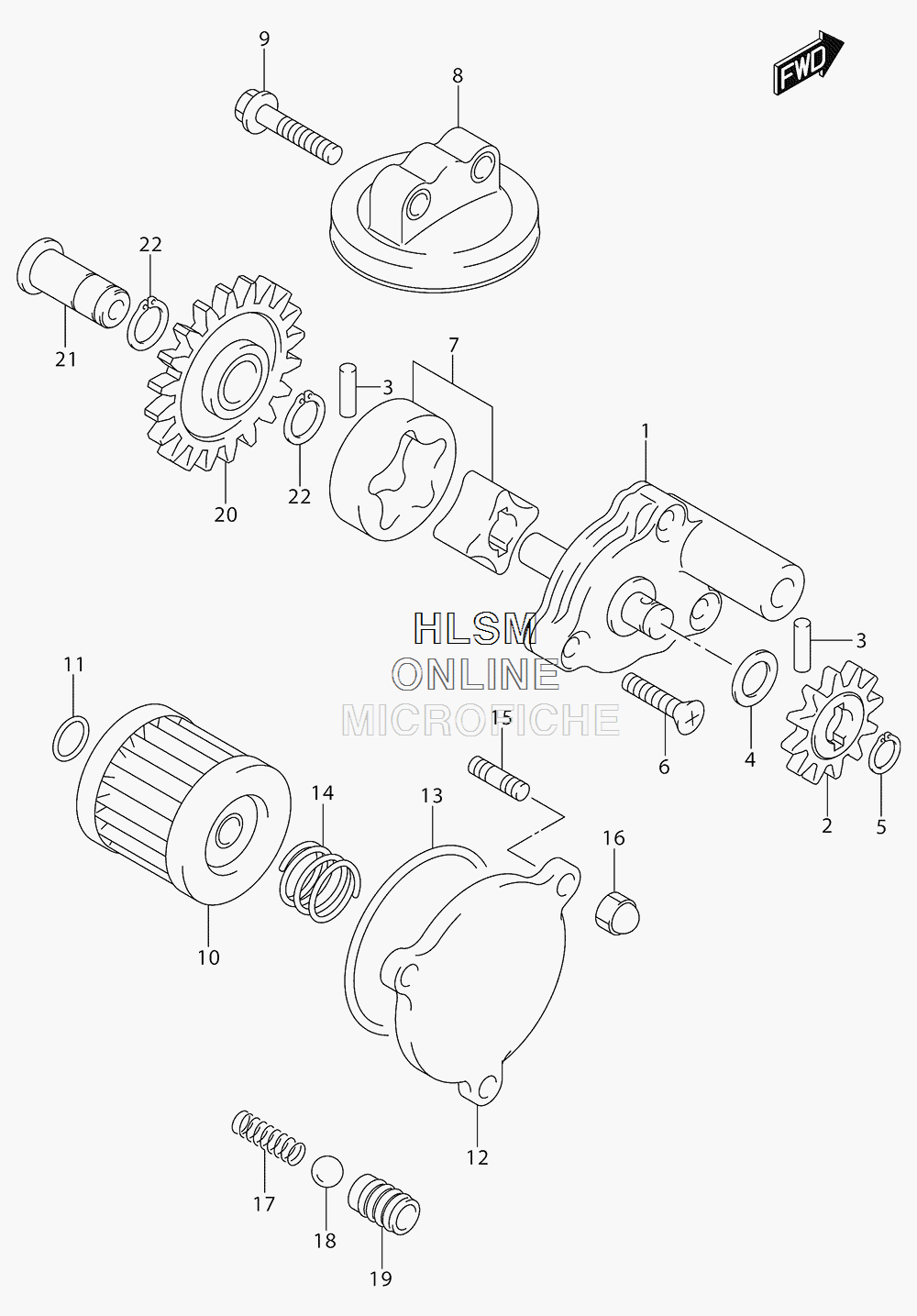

OIL PUMP для Suzuki DR-Z400SM L6 - 2016 года выпуска`
-
№АртикулНазвание
-
116400-29F00 PUMP ASSY, ENGINE OIL NO.1PUMP ASSY, ENGINE OIL NO.1
-
216331-29F01 GEAR, OIL PUMP DRIVEN (NT:12)GEAR, OIL PUMP DRIVEN (NT:12)
-
309261-04009 PIN (4X15.8)PIN (4X15.8)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
508331-31109 CIRCLIPCIRCLIP
-
602122-0625A SCREWSCREW
-
716410-29F00 ROTOR SET, OIL PUMP NO.2ROTOR SET, OIL PUMP NO.2
-
816520-29F01 STRAINER, OIL PUMP NO.2STRAINER, OIL PUMP NO.2
-
901550-0625A BOLTBOLT
-
1016510-29F00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1109280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1216512-47E00 CAP, OIL FILTERCAP, OIL FILTER
-
1309280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
1409440-18002 SPRINGSPRING
-
1509108-06123 STUD BOLTSTUD BOLT
-
1608313-1006A NUTNUT
-
1709440-07073 SPRINGSPRING
-
1806111-12004 BALLBALL
-
1916442-29F00 SEAT, OIL CHECK VALVESEAT, OIL CHECK VALVE
-
2016321-29F00 GEAR, OIL PUMP IDLE (NT:20)GEAR, OIL PUMP IDLE (NT:20)
-
2116322-29F00 SHAFT, OIL PUMP IDLE GEARSHAFT, OIL PUMP IDLE GEAR
-
2208331-3112A CIRCLIPCIRCLIP
