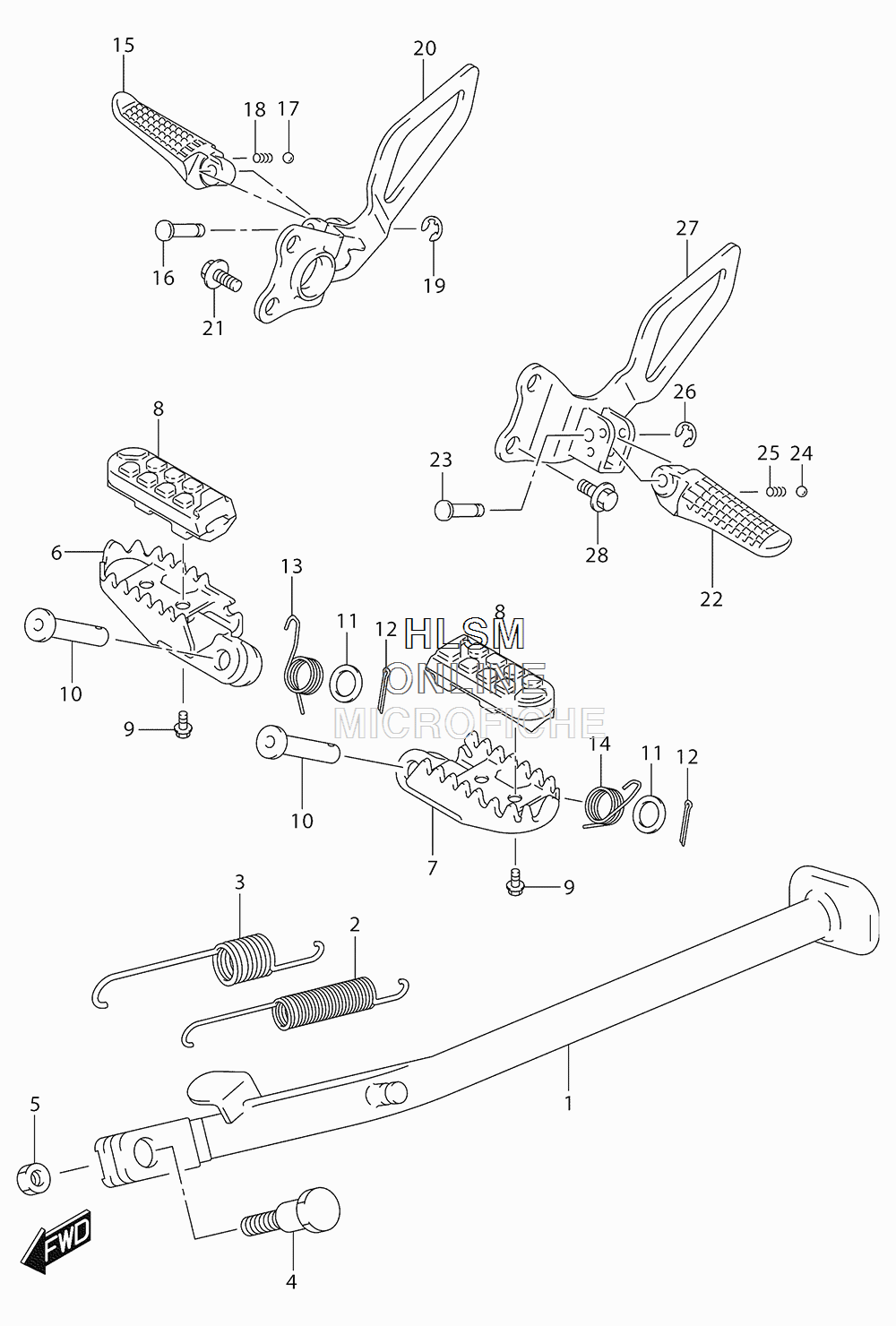

BRAKE PEDAL W/ STAND для Suzuki DR-Z400SM L6 - 2016 года выпуска

№

Артикул

Название
1

42310-29F20 STAND, PROP

STAND, PROP
2

09443-15046 SPRING (INNER)

SPRING (INNER)
3

09443-22017 SPRING (OUTER)

SPRING (OUTER)
4

09111-10060 BOLT (10X33)

BOLT (10X33)
5

42321-03FK0 NUT

NUT
6

43550-29E01 FOOTREST, RH

FOOTREST, RH
7

43560-29E01 FOOTREST, LH

FOOTREST, LH
8

43530-29F00 RUBBER, FOOTREST

RUBBER, FOOTREST
9

01547-0510A BOLT

BOLT
10

09200-10019 PIN (10X41.5)

PIN (10X41.5)
11

08322-0110B WASHER

WASHER
12

04111-2520A COTTER PIN

COTTER PIN
13

09448-18030 SPRING (RH)

SPRING (RH)
14

09448-18029 SPRING (LH)

SPRING (LH)
15

43611-33E11 BAR, PILLION FOOTREST RH

BAR, PILLION FOOTREST RH
16

87259-85510 PIN

PIN
17

06111-07004 BALL

BALL
18

09440-05005 SPRING

SPRING
19

08332-1104B E RING

E RING
20

43650-29F20 BRACKET, PILLION RH

BRACKET, PILLION RH
21

01550-0816B BOLT

BOLT
22

43621-33E11 BAR, PILLION FOOTREST LH

BAR, PILLION FOOTREST LH
23

87259-85510 PIN

PIN
24

06111-07004 BALL

BALL
25

09440-05005 SPRING

SPRING
26

08332-1104B E RING

E RING
27

43750-29F00 BRACKET, PILLION LH

BRACKET, PILLION LH
28

01550-0816B BOLT

BOLT
