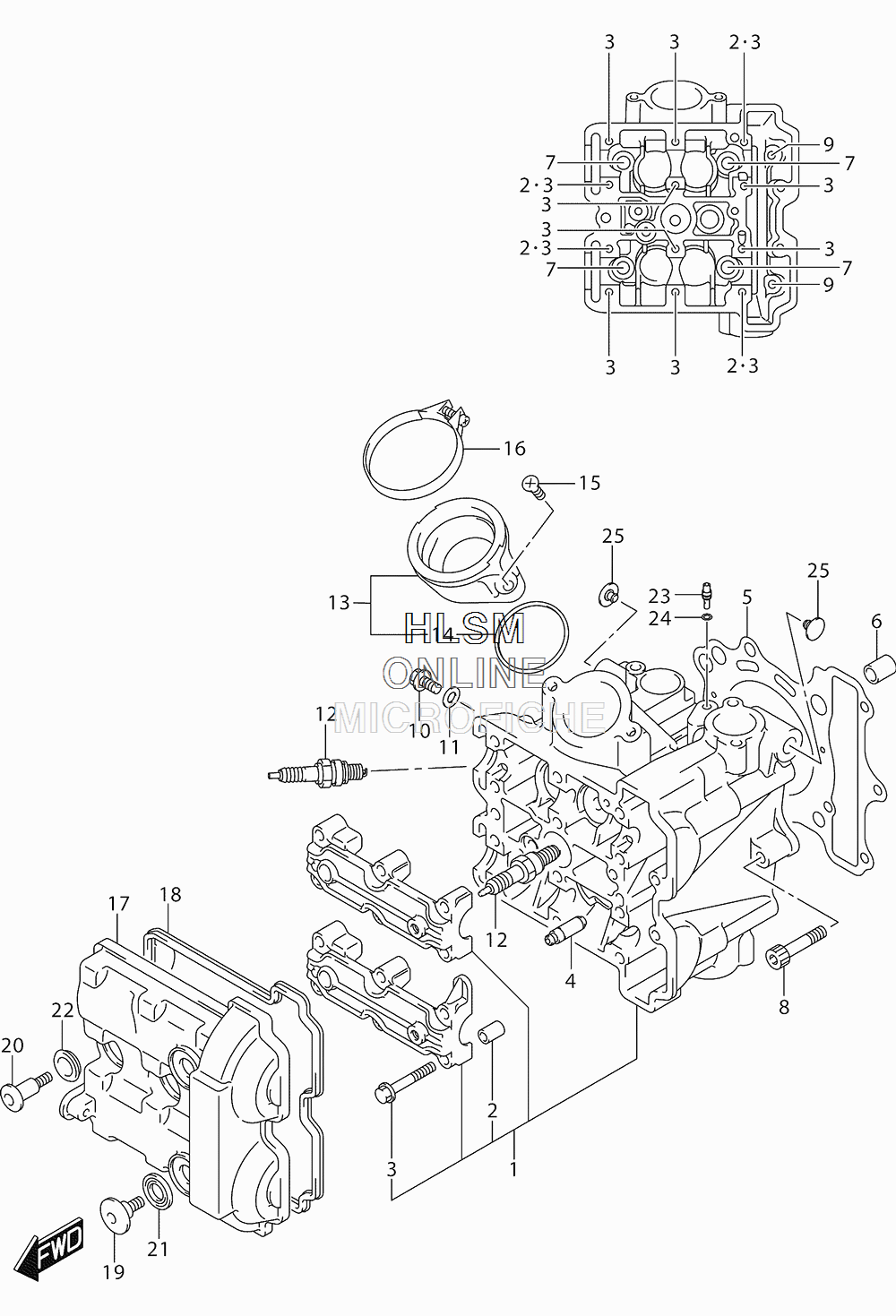

CYLINDER HEAD (FRONT) для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска`
-
№АртикулНазвание
-
111101-44H00 HEAD ASSY, CYLINDER FRONTHEAD ASSY, CYLINDER FRONT
-
209206-08001 ...PIN (8X11)...PIN (8X11)
-
309103-06266 ...BOLT (6X40)...BOLT (6X40)
-
411115-18D72 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
511141-20F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-13189 PINPIN
-
711117-44H00 BOLT (10X160)BOLT (10X160)
-
807120-0640A BOLTBOLT
-
909103-06103 BOLT (6X70)BOLT (6X70)
-
1001550-0612A BOLTBOLT
-
1109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1209482-00556 SPARK PLUG (CR8EIA-9) (NGK)SPARK PLUG (CR8EIA-9) (NGK)
-
1209482-00555 SPARK PLUG (IU24D) (DENSO)SPARK PLUG (IU24D) (DENSO)
-
1209482-00558 SPARK PLUG (CR9EIA-9) (OPT NGK)SPARK PLUG (CR9EIA-9) (OPT NGK)
-
1209482-00557 SPARK PLUG (IU27D) (OPT DENSO)SPARK PLUG (IU27D) (OPT DENSO)
-
1209482-00554 SPARK PLUG (CR7EIA-9) (OPT NGK)SPARK PLUG (CR7EIA-9) (OPT NGK)
-
1313101-17G10 PIPE ASSY, INTAKE FRONTPIPE ASSY, INTAKE FRONT
-
1409280-46006 ...O RING (D:2.4,ID:47X42)...O RING (D:2.4,ID:47X42)
-
1502122-0616B SCREWSCREW
-
1613827-40H01 CLAMPCLAMP
-
1711171-19F20 COVER, CYLINDER HEAD FRONTCOVER, CYLINDER HEAD FRONT
-
1811173-19F01 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
1909106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
2009106-07010 BOLT (7X31)BOLT (7X31)
-
2111191-27E00 WASHERWASHER
-
2211192-13E00 CUSHION, HEAD COVER BOLTCUSHION, HEAD COVER BOLT
-
2309493-80005 JET(8)JET(8)
-
2409280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2511151-27G00 CAPCAP
