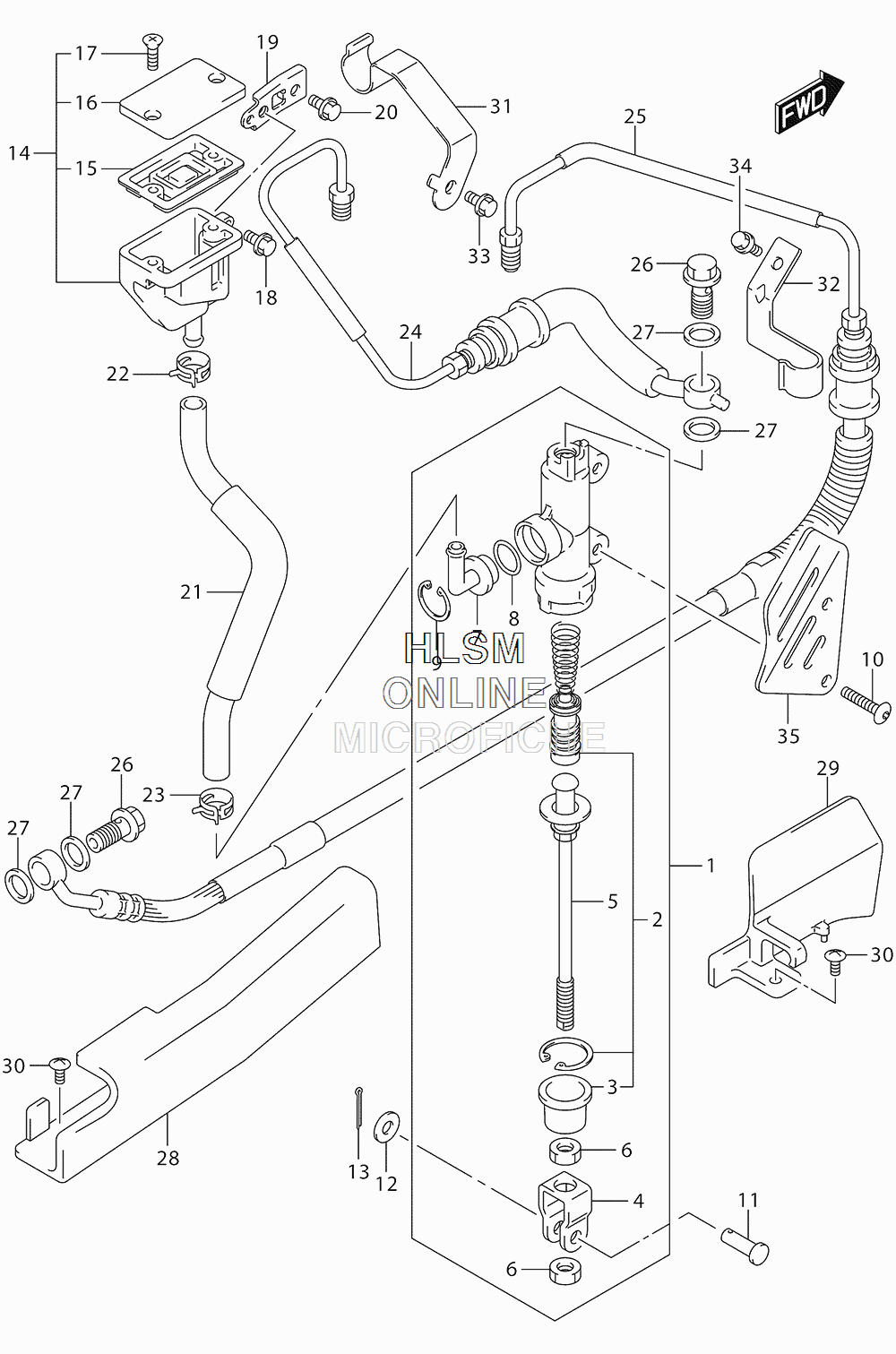

BRAKE - REAR MASTER CYLINDER для Suzuki DL650A L6 V-STROM 650 ADVENTURE W/ABS - 2016 года выпуска`
-
№АртикулНазвание
-
169600-06G00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-34820 ...PISTON/CUP SET...PISTON/CUP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-19A00 ...YOKE...YOKE
-
569670-03G00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06029 SCREW (6X25)SCREW (6X25)
-
1109200-06068 PIN (6X18.2)PIN (6X18.2)
-
1208322-0106B WASHERWASHER
-
1304111-2015A COTTER PINCOTTER PIN
-
1469740-01D02 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1559667-04700 ...DIAPHRAGM...DIAPHRAGM
-
1659669-05D00 ...CAP...CAP
-
1769689-04A00 ...SCREW...SCREW
-
1801547-0612A BOLTBOLT
-
1969750-27G20 BRACKET, REAR RESERVOIR TANKBRACKET, REAR RESERVOIR TANK
-
2001547-0612A BOLTBOLT
-
2169730-27G00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2209401-13417 CLIP (UPPER)CLIP (UPPER)
-
2309401-12404 CLIP (LOWER)CLIP (LOWER)
-
2469200-11J10 HOSE ASSY, REAR BRAKE NO.1HOSE ASSY, REAR BRAKE NO.1
-
2569400-11J00 HOSE ASSY, REAR BRAKE NO.2HOSE ASSY, REAR BRAKE NO.2
-
2609360-10062 UNIONUNION
-
2709161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2861196-27G10 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
2961196-06G00 GUIDE, REAR BRAKE HOSE FRONTGUIDE, REAR BRAKE HOSE FRONT
-
3002142-0510A SCREWSCREW
-
3169260-11J00 CLAMP, REAR BRAKE HOSECLAMP, REAR BRAKE HOSE
-
3269266-27G00 CLAMP, REAR BRAKE HOSE NO.2CLAMP, REAR BRAKE HOSE NO.2
-
3301547-0610B BOLTBOLT
-
3401547-0612A BOLTBOLT
-
3569641-06G00 COVER, REAR MASTER CYLINDERCOVER, REAR MASTER CYLINDER
