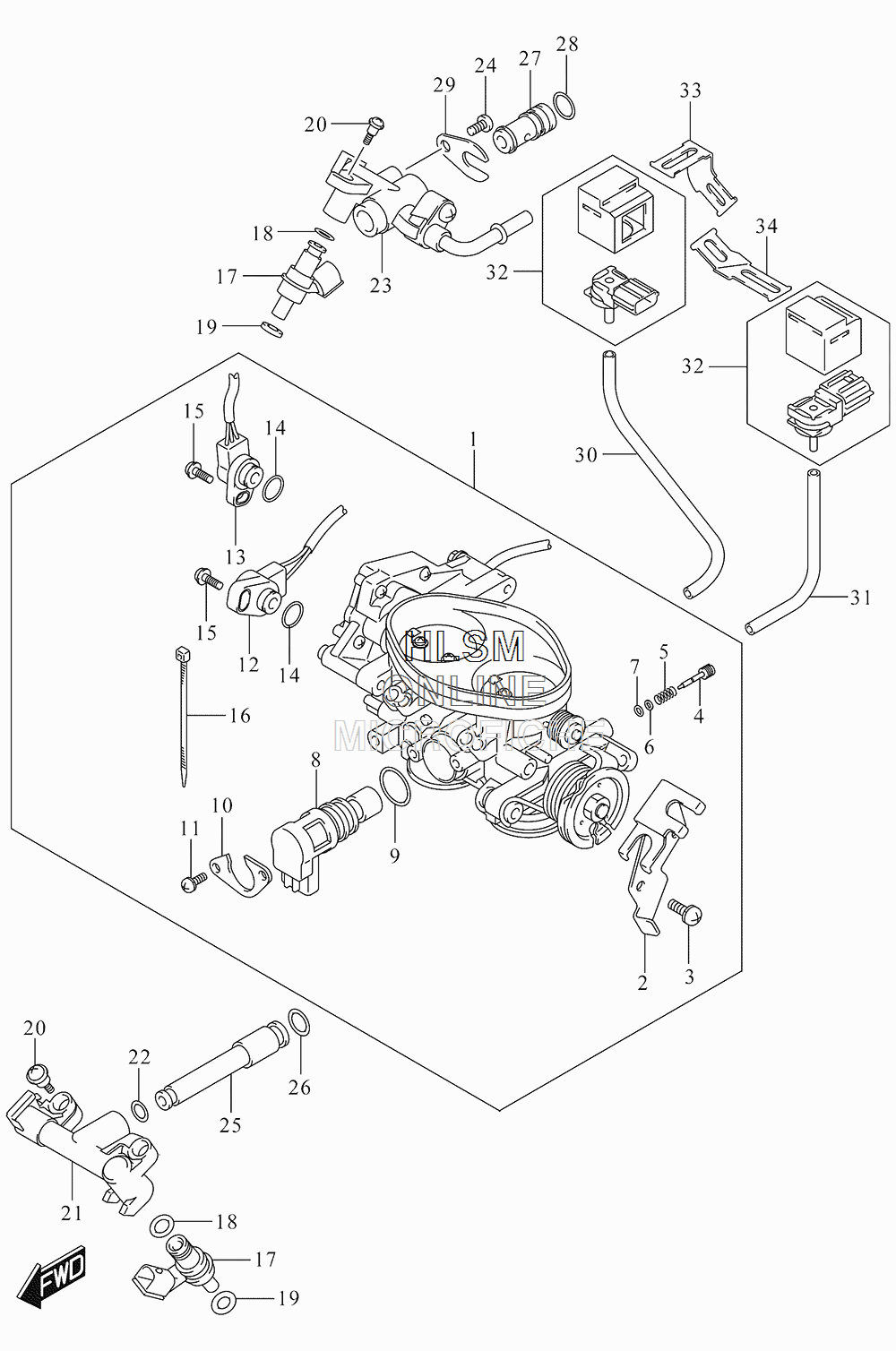

THROTTLE BODY (CAN) для Suzuki VZ800M50 L5 BOULEVARD M50 - 2015 года выпуска`
-
№АртикулНазвание
-
113401-41F22 BODY, THROTTLEBODY, THROTTLE
-
213565-41F20 ...PLATE, STAY...PLATE, STAY
-
313601-21H00 ...SCREW...SCREW
-
413269-18G00 ...SCREW...SCREW
-
513271-43E00 ...SPRING...SPRING
-
613291-26E00 ...WASHER...WASHER
-
713295-26E00 ...O RING...O RING
-
818117-15H12 ...VALVE ASSY, ISC...VALVE ASSY, ISC
-
918119-05H00 ...O RING...O RING
-
1013428-15H00 ...PLATE, ISC VALVE...PLATE, ISC VALVE
-
1113605-15H00 ...SCREW...SCREW
-
1213580-40F21 ...SENSOR ASSY, MAIN...SENSOR ASSY, MAIN
-
1313580-41F01 ...SENSOR ASSY, SUB...SENSOR ASSY, SUB
-
1413575-40F00 ...O RING...O RING
-
1513605-40F00 ...SCREW...SCREW
-
1609407-14407 ...CLAMP (L:145)...CLAMP (L:145)
-
1715710-26GB0 INJECTOR ASSYINJECTOR ASSY
-
1815721-21H00 O RINGO RING
-
1915722-21H00 RING, SEALRING, SEAL
-
2013602-34F50 SCREWSCREW
-
2113473-41FA0 PIPE SET, FUEL FRPIPE SET, FUEL FR
-
2215721-24F00 O RINGO RING
-
2313473-41FB0 PIPE SET, FUEL RRPIPE SET, FUEL RR
-
2413602-10F10 SCREWSCREW
-
2513473-41FC0 JOINTJOINT
-
2615721-10G00 O RINGO RING
-
2713474-41F20 PLUG, STRAIGHTPLUG, STRAIGHT
-
2815721-41F20 O RINGO RING
-
2913475-41F20 PLATEPLATE
-
3013683-41FA0 HOSEHOSE
-
3113683-41FD0 TUBE, RUBBERTUBE, RUBBER
-
3218590-32G00 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
3318598-41F00 BRACKET, BOOST SENSOR FRBRACKET, BOOST SENSOR FR
-
3418599-39G00 BRACKET, BOOST SENSOR RRBRACKET, BOOST SENSOR RR
