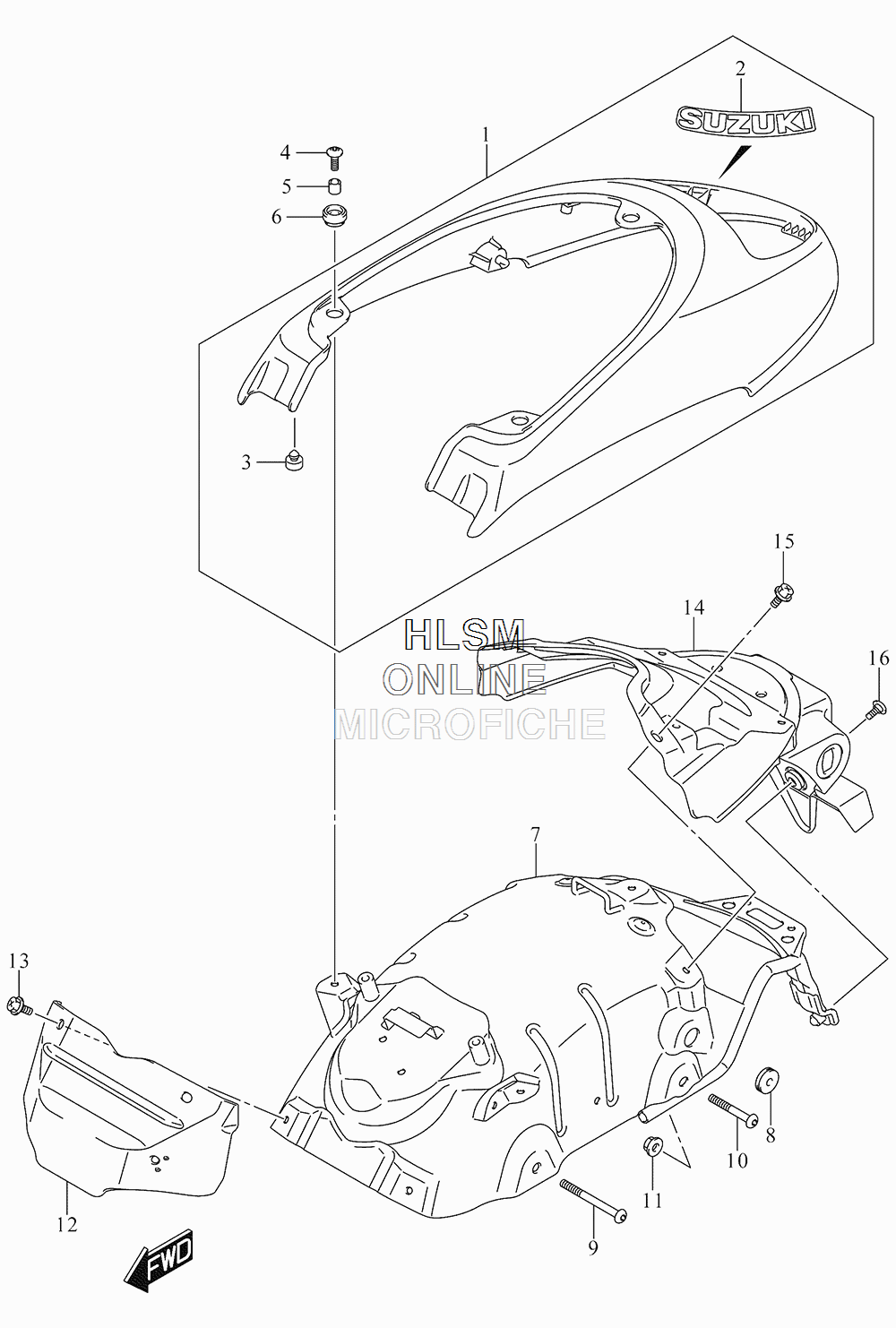

FENDER - REAR для Suzuki VZ800M50 L5 BOULEVARD M50 - 2015 года выпуска

№

Артикул

Название
1

63110-39G50-YVB FENDER, REAR (BLACK)

FENDER, REAR (BLACK)
2

68641-19F00-YES ...EMBLEM ''SUZUKI'' (SILVER)

...EMBLEM ''SUZUKI'' (SILVER)
3

09250-06012 ...PLUG (OD:10)

...PLUG (OD:10)
4

09136-06105 SCREW (6X20)

SCREW (6X20)
5

09180-06283 SPACER (6.5X10X7)

SPACER (6.5X10X7)
6

47312-37H00 CUSHION

CUSHION
7

63140-39G00 BRACE, FENDER

BRACE, FENDER
8

09320-08029 CUSHION

CUSHION
9

09106-08182 BOLT (8X70)

BOLT (8X70)
10

09106-08183 BOLT (8X50)

BOLT (8X50)
11

08316-1008A NUT

NUT
12

63112-39G50 FENDER, FRONT

FENDER, FRONT
13

09111-06107 BOLT (6X12)

BOLT (6X12)
14

63311-39G01 EXTENSION

EXTENSION
15

09111-06107 BOLT (6X12)

BOLT (6X12)
16

09139-06144 SCREW (6X12)

SCREW (6X12)
