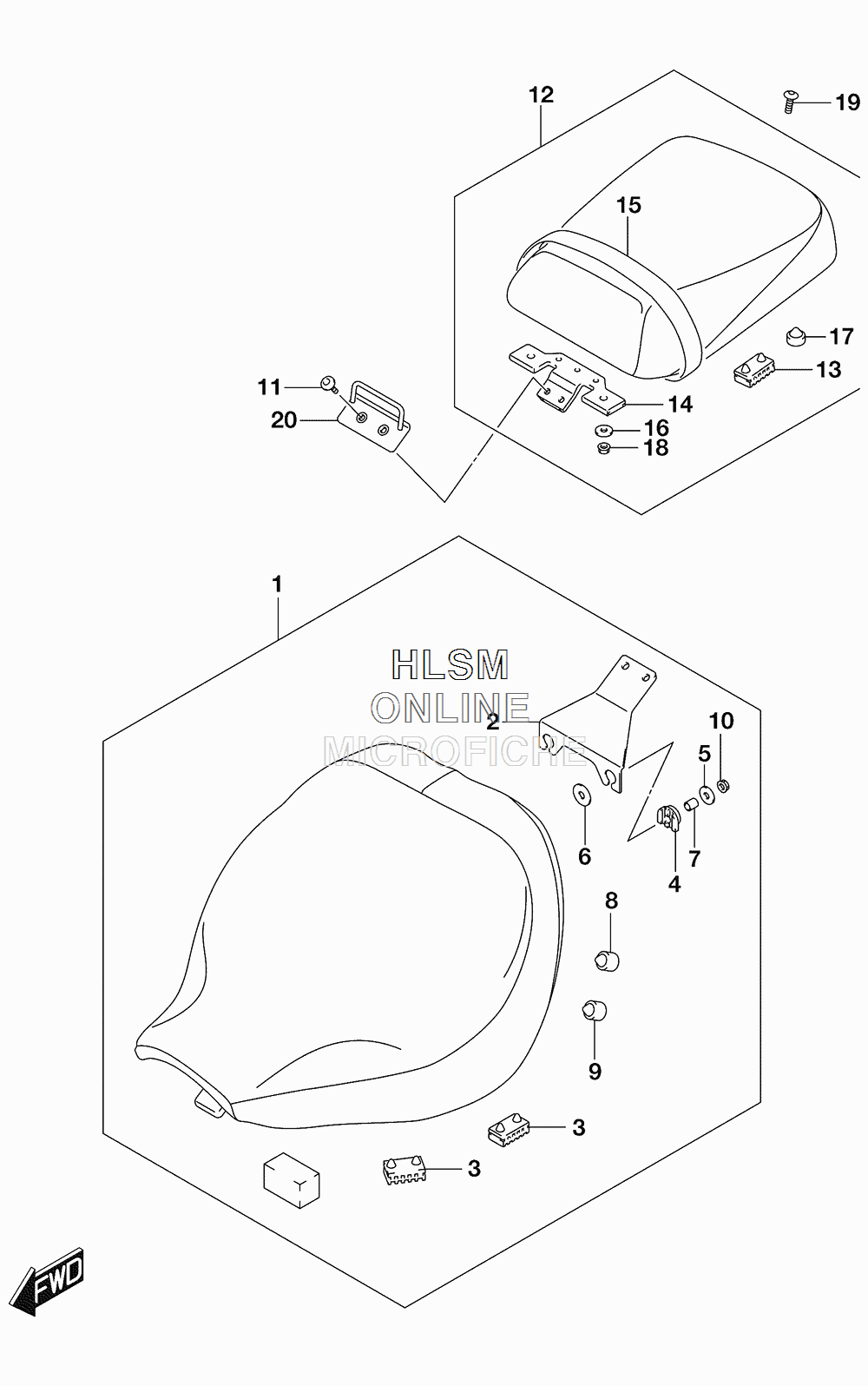

SEAT для Suzuki VL800 L5 BOULEVARD C50 - 2015 года выпуска

№

Артикул

Название
1

45100-43H00-V4Y SEAT ASSY (BLACK)

SEAT ASSY (BLACK)
2

45115-43H00 ...BRACKET, SEAT

...BRACKET, SEAT
3

45149-31300 ...CUSHION

...CUSHION
4

45215-43H00 ...CUSHION

...CUSHION
5

09160-06088 ...WASHER (6.5X20X1.6)

...WASHER (6.5X20X1.6)
6

09160-06501 ...WASHER (6.5X24X1.6)

...WASHER (6.5X24X1.6)
7

09180-06288 ...SPACER (6.5X10X11)

...SPACER (6.5X10X11)
8

09321-10002 ...CUSHION (11.5X22X20)

...CUSHION (11.5X22X20)
9

09321-10033 ...CUSHION

...CUSHION
10

08316-1006A ...NUT

...NUT
11

09106-06064 BOLT (6X18)

BOLT (6X18)
12

45300-43H00-V4Y SEAT ASSY, PILLION (BLACK)

SEAT ASSY, PILLION (BLACK)
13

45147-12FA0 ...CUSHION

...CUSHION
14

45330-43H00 ...BRACKET, PILLION SEAT

...BRACKET, PILLION SEAT
15

45380-43H00-V4Y ...BAND, SEAT PILLION (BLACK)

...BAND, SEAT PILLION (BLACK)
16

09160-06088 ...WASHER (6.5X20X1.6)

...WASHER (6.5X20X1.6)
17

09321-10002 ...CUSHION (11.5X22X20)

...CUSHION (11.5X22X20)
18

08316-1006A ...NUT

...NUT
19

09106-08140 BOLT (8X16)

BOLT (8X16)
20

45210-43H00 BRACKET, SEAT SUPPORT

BRACKET, SEAT SUPPORT
