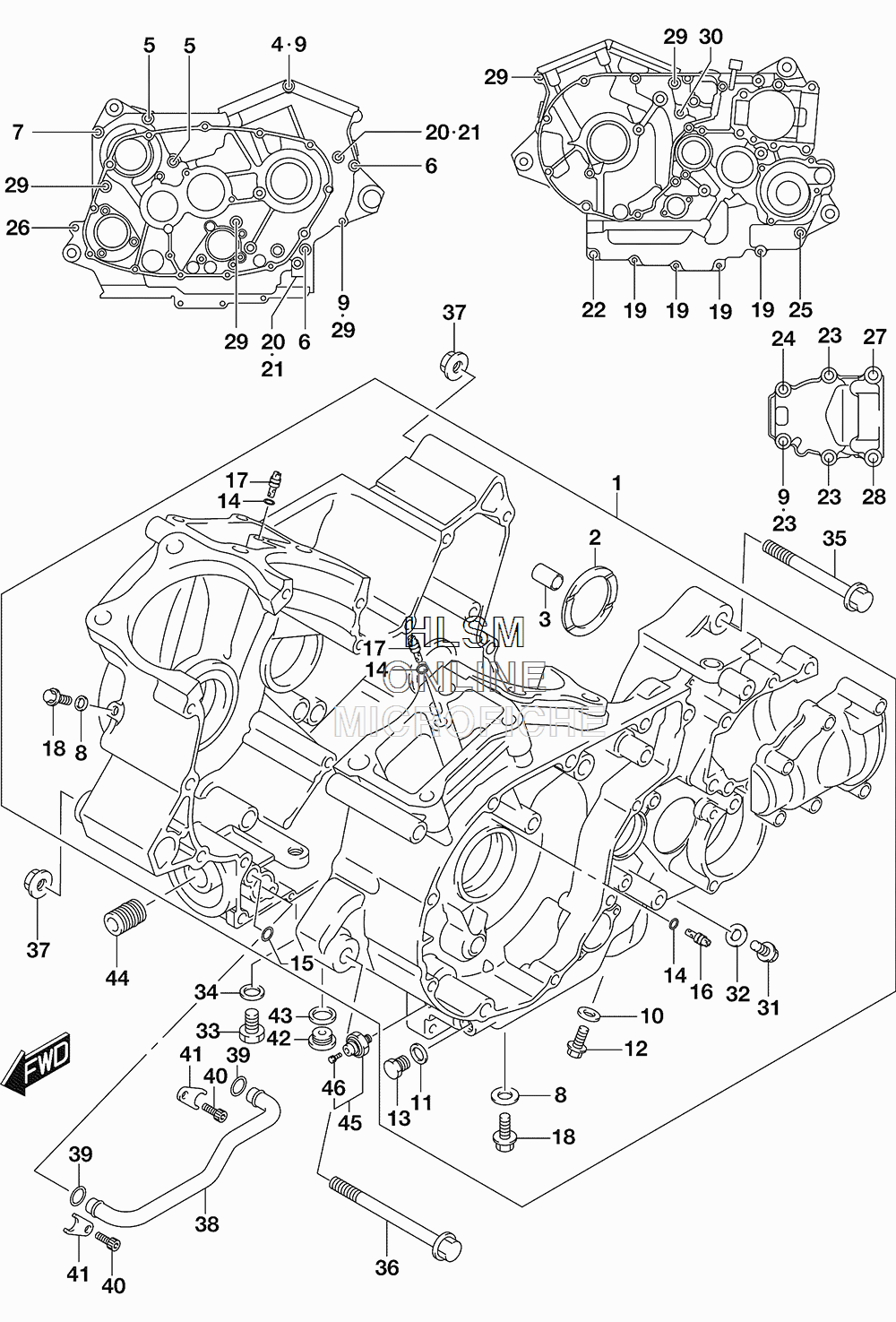

CRANKCASE для Suzuki VL800 L5 BOULEVARD C50 - 2015 года выпуска`
-
№АртикулНазвание
-
111302-39830 CRANKCASE SETCRANKCASE SET
-
209160-48001 ...WASHER (48.1X64X1.94)...WASHER (48.1X64X1.94)
-
209160-48002 ...WASHER (48.1X64X1.96)...WASHER (48.1X64X1.96)
-
209160-48003 ...WASHER (48.1X64X1.99)...WASHER (48.1X64X1.99)
-
209160-48004 ...WASHER (48.1X64X2.01)...WASHER (48.1X64X2.01)
-
209160-48005 ...WASHER (48.1X64X2.04)...WASHER (48.1X64X2.04)
-
209160-48006 ...WASHER (48.1X64X2.06)...WASHER (48.1X64X2.06)
-
209160-48007 ...WASHER (48.1X64X2.09)...WASHER (48.1X64X2.09)
-
209160-48008 ...WASHER (48.1X64X2.11)...WASHER (48.1X64X2.11)
-
209160-48009 ...WASHER (48.1X64X2.14)...WASHER (48.1X64X2.14)
-
209160-48010 ...WASHER (48.1X64X2.16)...WASHER (48.1X64X2.16)
-
309206-11007 ...PIN (8.4X11X20)...PIN (8.4X11X20)
-
409103-08405 ...BOLT (8X160)...BOLT (8X160)
-
509103-08406 ...BOLT (8X120)...BOLT (8X120)
-
609103-08179 ...BOLT (8X105)...BOLT (8X105)
-
709103-08164 ...BOLT (8X95)...BOLT (8X95)
-
809168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
909168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1009168-10002 ...GASKET (10X14X3.6)...GASKET (10X14X3.6)
-
1109168-14002 ...GASKET (13.8X18.8X4.8)...GASKET (13.8X18.8X4.8)
-
1209247-10008 ...PLUG (10X12)...PLUG (10X12)
-
1309247-14026 ...PLUG (14X12)...PLUG (14X12)
-
1409280-04004 ...O RING (D:1.2,ID:4)...O RING (D:1.2,ID:4)
-
1509280-12009 ...O RING (D:1.9,ID:12.6)...O RING (D:1.9,ID:12.6)
-
1609493-20014 ...JET, OIL GALLERY...JET, OIL GALLERY
-
1709493-28010 ...JET AIR(14)...JET AIR(14)
-
1801550-0610A ...BOLT...BOLT
-
1901547-0640A ...BOLT...BOLT
-
2001550-0812A ...BOLT...BOLT
-
2109168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
2201550-0835A ...BOLT...BOLT
-
2301550-0840A ...BOLT...BOLT
-
2401550-0850A ...BOLT...BOLT
-
2501550-0855A ...BOLT...BOLT
-
2601550-0860A ...BOLT...BOLT
-
2701550-0855A ...BOLT...BOLT
-
2801550-0865A ...BOLT...BOLT
-
2909103-08105 ...BOLT (8X95)...BOLT (8X95)
-
3001550-0875A ...BOLT...BOLT
-
3109103-08407 ...BOLT (8X12)...BOLT (8X12)
-
3209168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
3309247-12011 PLUG (12X20) (OIL DRAIN)PLUG (12X20) (OIL DRAIN)
-
3409168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
3509103-10706 BOLT (10X135)BOLT (10X135)
-
3609103-10705 BOLT (10X160)BOLT (10X160)
-
3709159-10113 NUTNUT
-
3811451-38A00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
3909280-15008 O RING (D:3.1,ID:14.8)O RING (D:3.1,ID:14.8)
-
4009106-06075 BOLT (6X12)BOLT (6X12)
-
4111461-38A00 CLAMPCLAMP
-
4209248-16013 PLUGPLUG
-
4309168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
4416591-06B01 UNIONUNION
-
4537820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
4637822-33D00 ...BOLT...BOLT
