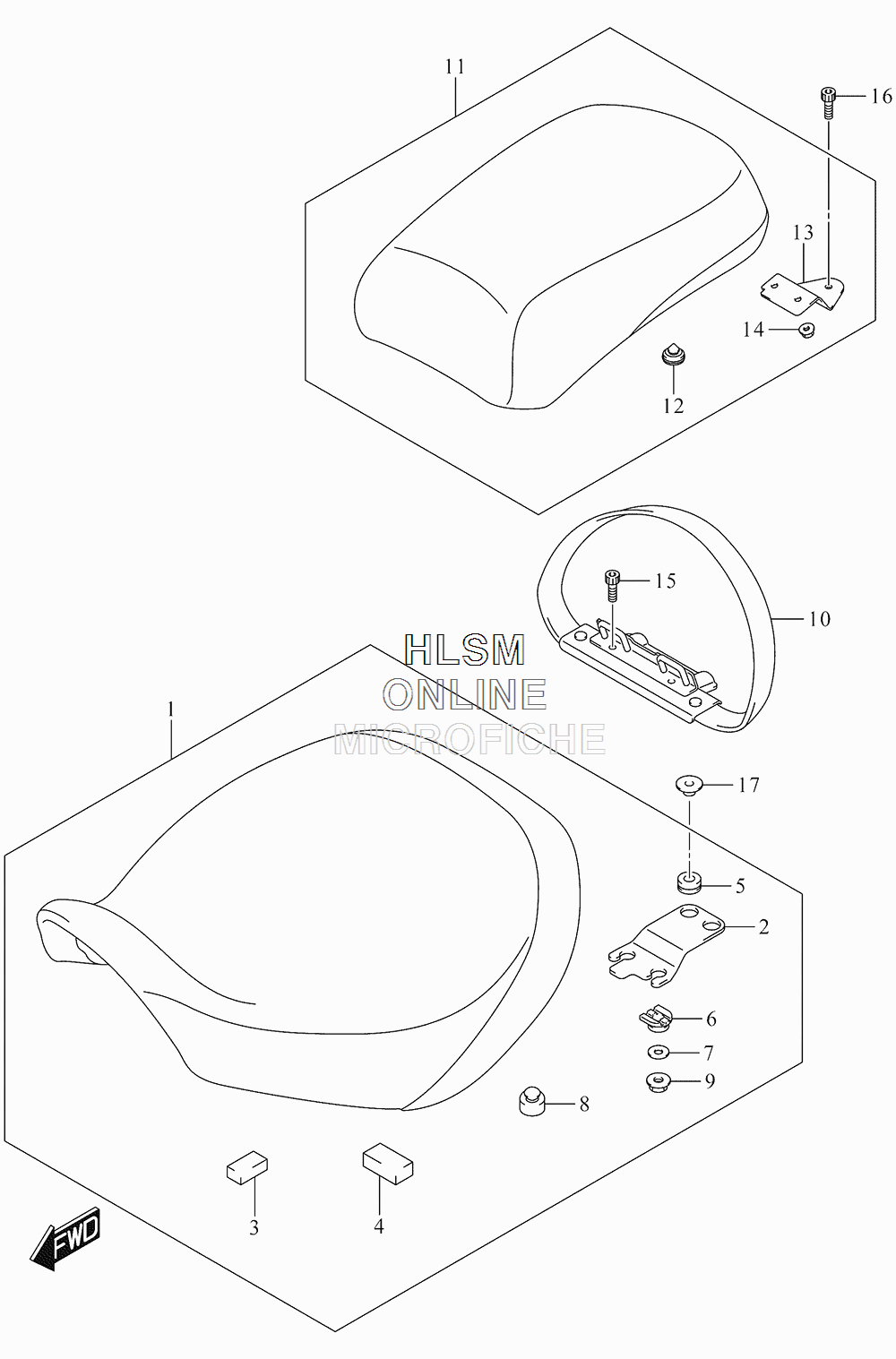

SEAT для Suzuki VL1500T L5 BOULEVARD C90T - 2015 года выпуска

№

Артикул

Название
1

45100-06J00-V4Y SEAT ASSY (BLACK)

SEAT ASSY (BLACK)
2

45115-06J00 ...BRACKET, SEAT

...BRACKET, SEAT
3

45148-40H00 ...CUSHION

...CUSHION
4

45149-40H00 ...CUSHION

...CUSHION
5

45149-06J00 ...CUSHION

...CUSHION
6

45215-06B00 ...CUSHION

...CUSHION
7

09160-06088 ...WASHER (6.5X20X1.6)

...WASHER (6.5X20X1.6)
8

09321-10011 ...CUSHION

...CUSHION
9

08319-3106A ...NUT

...NUT
10

45180-06J00-V4Y BAND ASSY, SEAT (BLACK)

BAND ASSY, SEAT (BLACK)
11

45300-06J00-V4Y SEAT ASSY, PILLION (BLACK)

SEAT ASSY, PILLION (BLACK)
12

09321-10002 ...CUSHION (11.5X22X20)

...CUSHION (11.5X22X20)
13

45315-06J00 ...BRACKET

...BRACKET
14

08316-1006A ...NUT

...NUT
15

09106-06064 BOLT (6X18)

BOLT (6X18)
16

09106-08140 BOLT (8X16)

BOLT (8X16)
17

09169-06077 SPACER

SPACER
