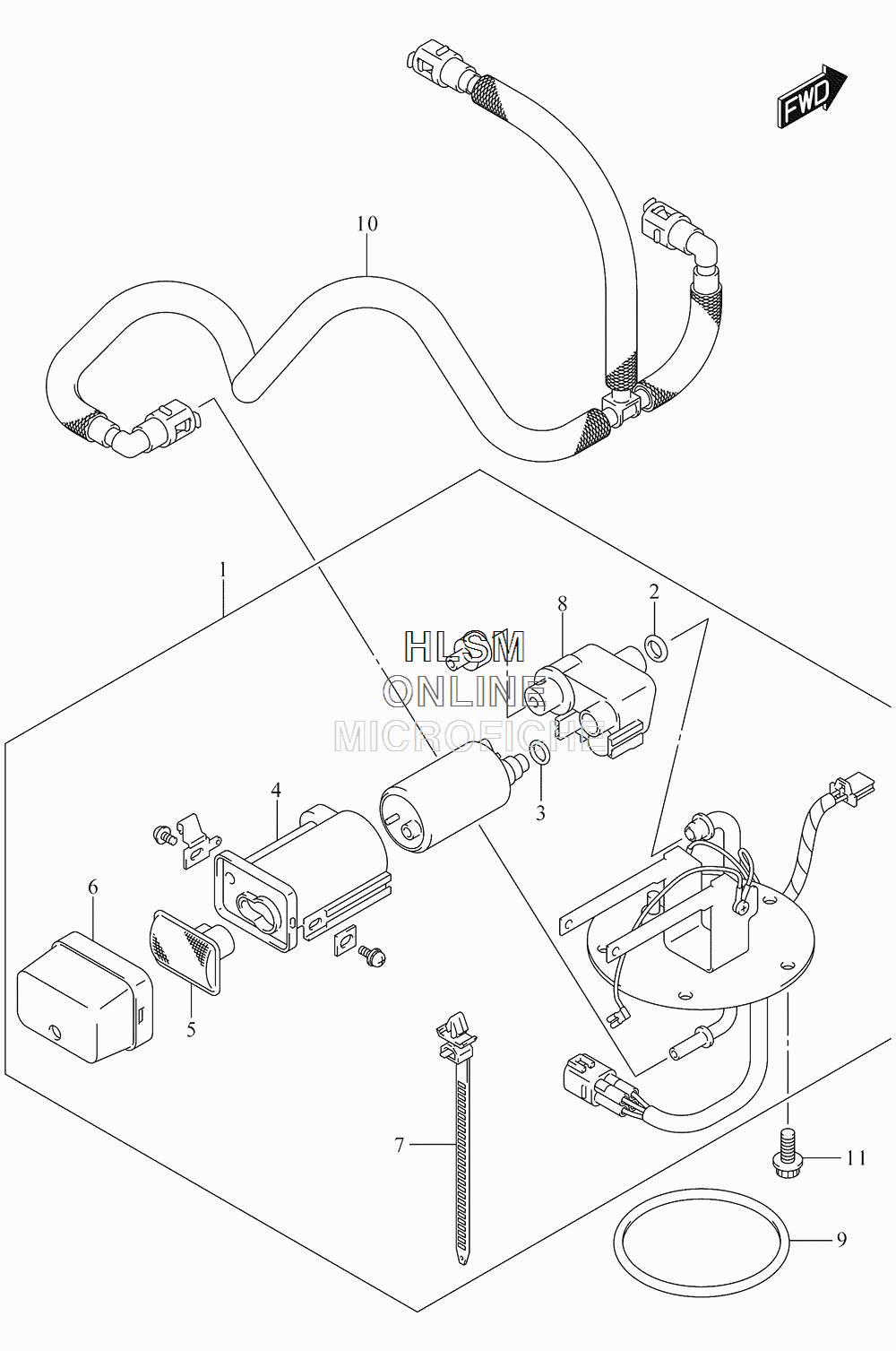

FUEL PUMP для Suzuki VL1500T L5 BOULEVARD C90T - 2015 года выпуска
-
№АртикулНазвание
-
115100-06J11 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215113-35F00 ...O RING...O RING
-
315113-05H00 ...O RING...O RING
-
415118-06J00 ...JOINT...JOINT
-
515420-05H00 ...STRAINER...STRAINER
-
615425-06J10 ...VESSEL...VESSEL
-
715116-06J00 ...BINDER...BINDER
-
815610-06J00 ...REGULATOR...REGULATOR
-
915201-35F00 O RINGO RING
-
1015810-06J01 HOSEHOSE
-
1107120-0612A BOLTBOLT
