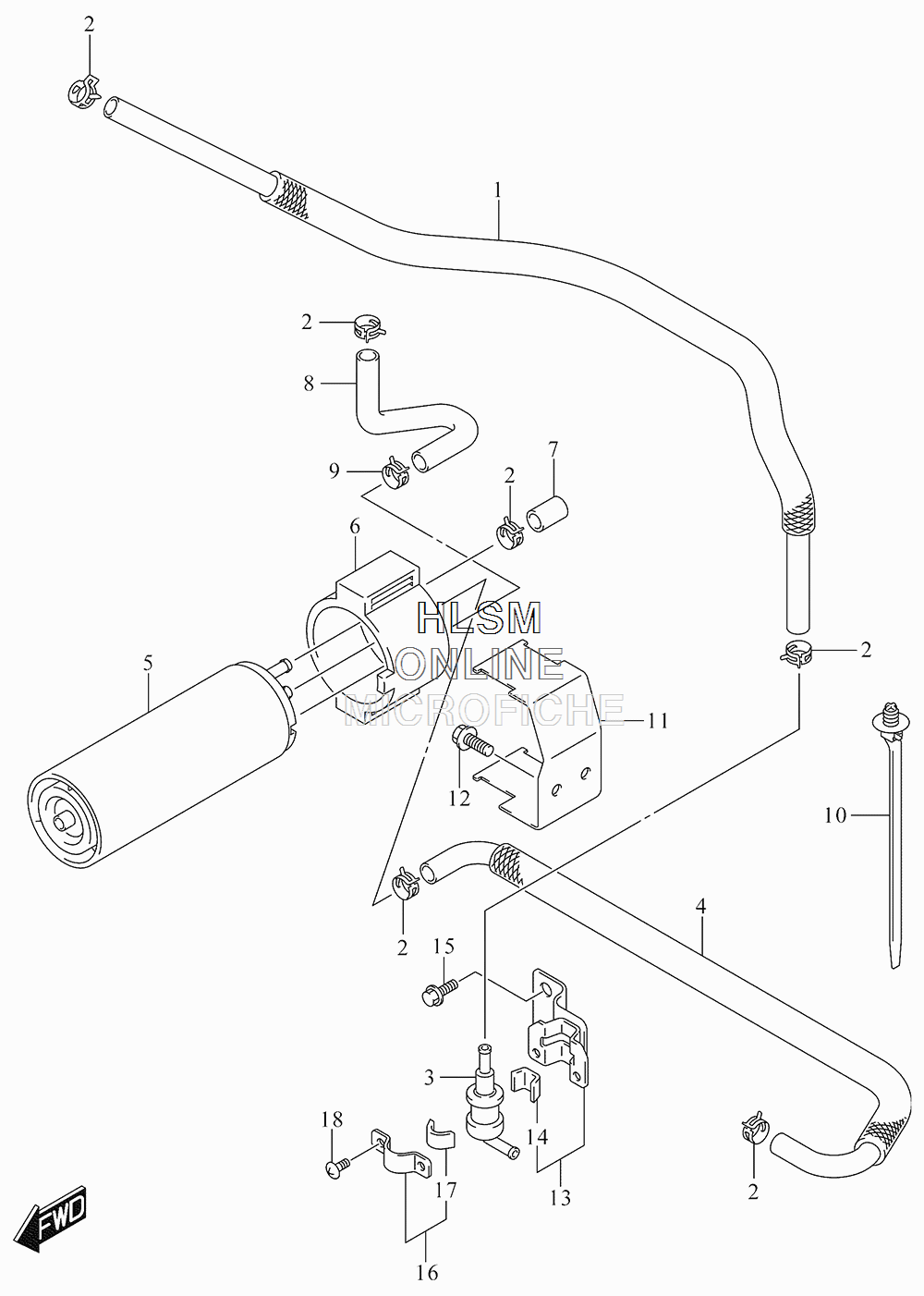

EVAP SYSTEM (CALIF ONLY) для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
144434-40H00 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
413681-06J00 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
517210-15H00 CANISTER ASSYCANISTER ASSY
-
617211-06J00 CUSHIONCUSHION
-
709251-07003 CAP (OD:11.5)CAP (OD:11.5)
-
813682-06J00 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
909401-12404 CLIPCLIP
-
1009407-17403 CLAMP (L:154)CLAMP (L:154)
-
1117221-06J00 BRACKET, CANISTERBRACKET, CANISTER
-
1201550-0612A BOLTBOLT
-
1344880-40H00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
1444894-24A00 ...CUSHION...CUSHION
-
1501547-0610A BOLTBOLT
-
1644892-24A00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
1744894-24A00 ...CUSHION...CUSHION
-
1802142-0408A SCREWSCREW
