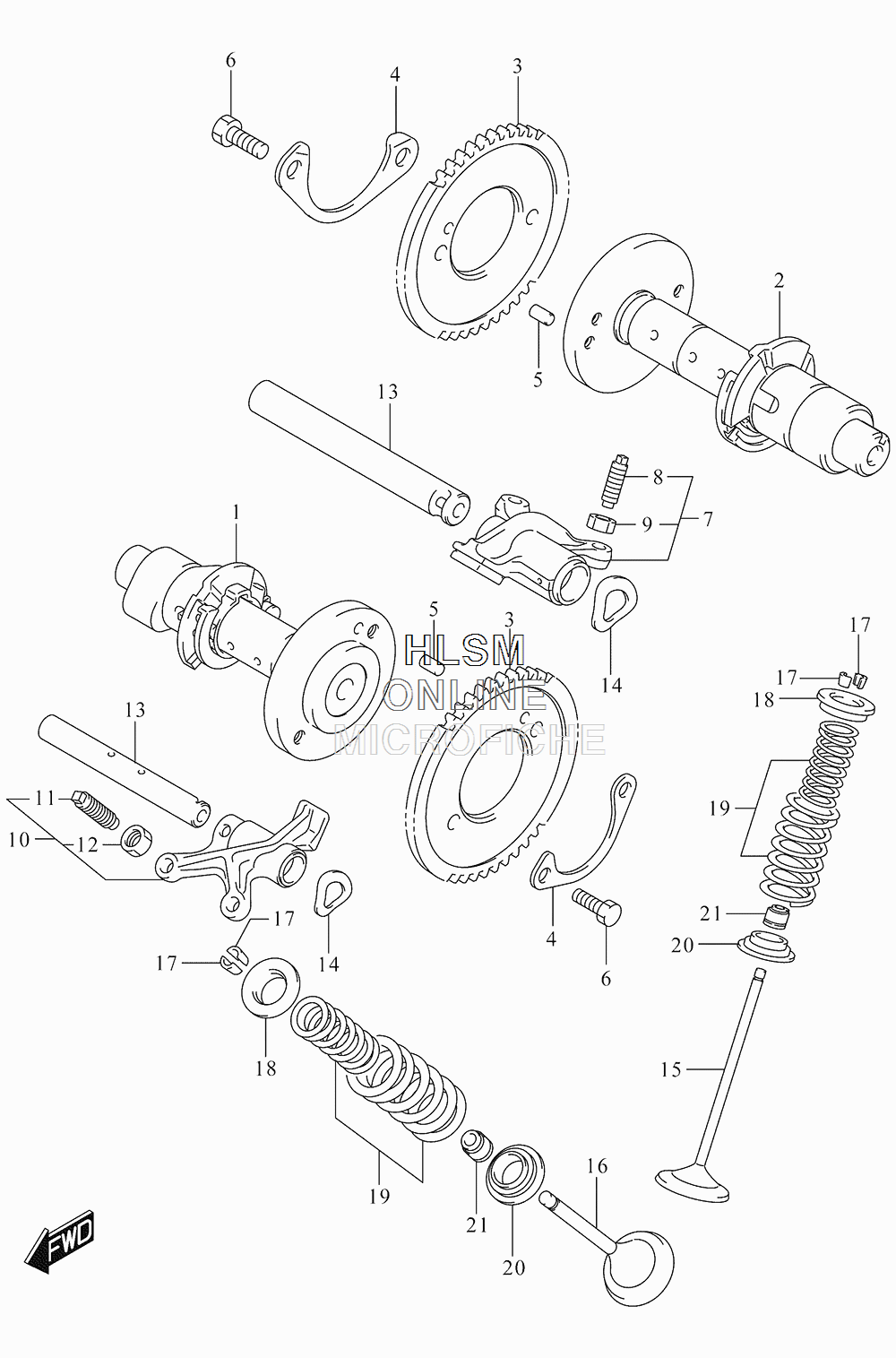

CAMSHAFT W/ VALVES для Suzuki VL1500B L5 BOULEVARD C90 B.O.S.S. - 2015 года выпуска

№

Артикул

Название
1

12710-40H20 CAMSHAFT, FRONT

CAMSHAFT, FRONT
2

12730-40H10 CAMSHAFT, REAR

CAMSHAFT, REAR
3

12741-41F00 SPROCKET, CAMSHAFT (NT:46)

SPROCKET, CAMSHAFT (NT:46)
4

12747-44001 WASHER

WASHER
5

04221-05109 PIN

PIN
6

09100-06169 BOLT (6X12.5)

BOLT (6X12.5)
7

12840-40H00 ARM, VALVE ROCKER INTAKE

ARM, VALVE ROCKER INTAKE
8

12842-38A00 ...SCREW

...SCREW
9

12843-32400 ...NUT

...NUT
10

12850-40H00 ARM, VALVE ROCKER EXHAUST

ARM, VALVE ROCKER EXHAUST
11

12842-38A00 ...SCREW

...SCREW
12

12843-32400 ...NUT

...NUT
13

12861-40H00 SHAFT, VALVE ROCKER ARM

SHAFT, VALVE ROCKER ARM
14

09164-12018 WASHER

WASHER
15

12911-40H00 VALVE, INTAKE

VALVE, INTAKE
16

12912-40H00 VALVE, EXHAUST

VALVE, EXHAUST
17

12932-24400 COTTER, VALVE

COTTER, VALVE
18

12931-33201 RETAINER, SPRING

RETAINER, SPRING
19

12920-32E00 SPRING SET, VALVE

SPRING SET, VALVE
20

12933-81400 SEAT, SPRING

SEAT, SPRING
21

09289-05015 OIL SEAL (5.5X11X8.2)

OIL SEAL (5.5X11X8.2)
