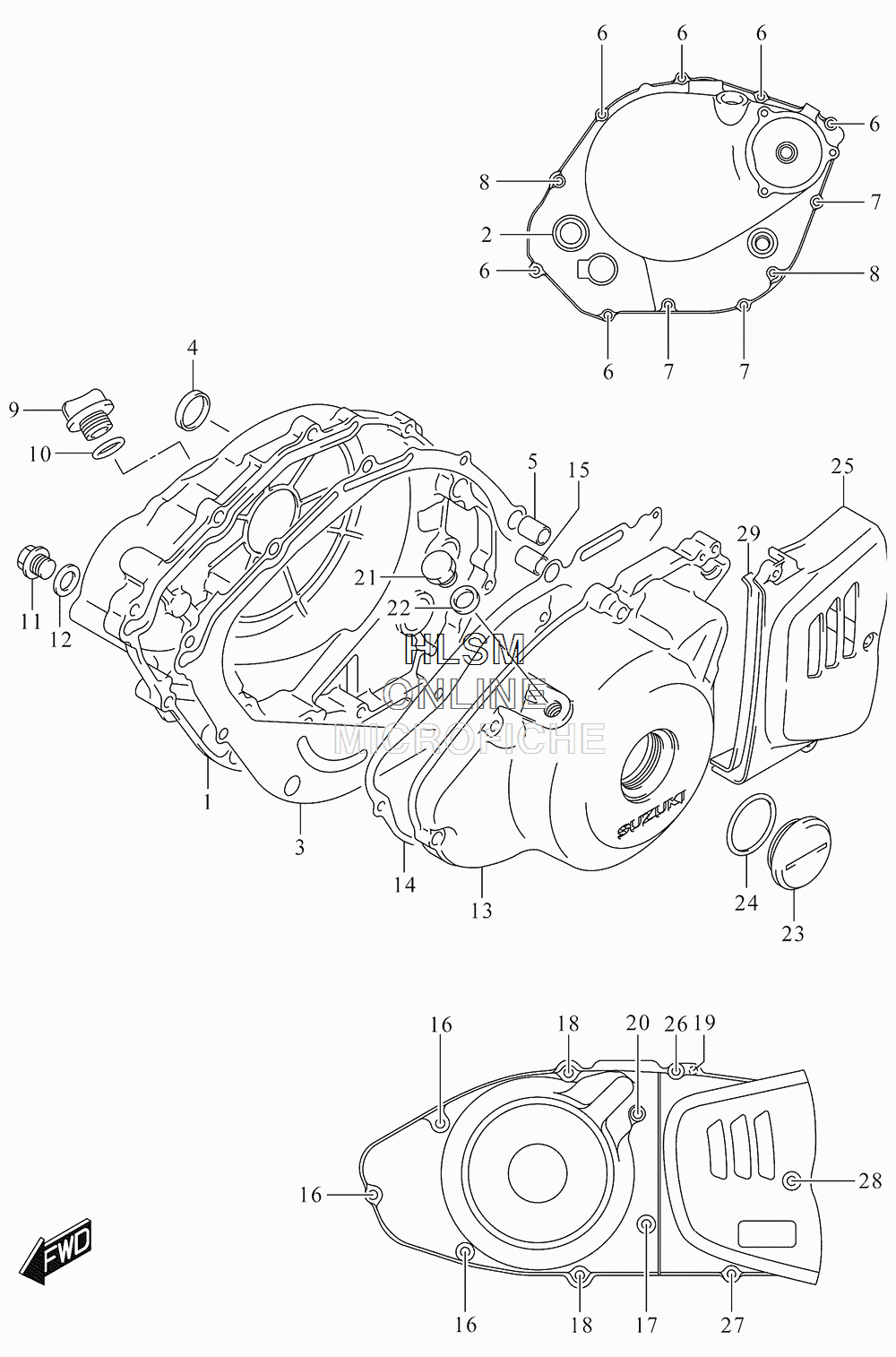

CRANKCASE COVER для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
111340-25D01 COVER, CLUTCHCOVER, CLUTCH
-
211971-45010 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311482-38212 GASKET, CLUTCH COVER (NA)GASKET, CLUTCH COVER (NA)
-
411342-15D00 PLUG, CLUTCH COVER KICKPLUG, CLUTCH COVER KICK
-
504211-13189 PINPIN
-
609103-06212 BOLT (6X25)BOLT (6X25)
-
709103-06214 BOLT (6X35)BOLT (6X35)
-
809103-06224 BOLT (6X45)BOLT (6X45)
-
911971-25D00 PLUG, ENGINE OIL FILLERPLUG, ENGINE OIL FILLER
-
1009280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1109247-14026 PLUG (14X12) (OIL DRAIN)PLUG (14X12) (OIL DRAIN)
-
1209168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1311351-26G10 COVER, MAGNETOCOVER, MAGNETO
-
1411483-37D11 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1504211-13189 PINPIN
-
1609103-06212 BOLT (6X25)BOLT (6X25)
-
1709103-06214 BOLT (6X35)BOLT (6X35)
-
1809103-06238 BOLT (6X50)BOLT (6X50)
-
1901547-0525A BOLTBOLT
-
2009103-06261 BOLT (6X60)BOLT (6X60)
-
2109247-12104 PLUG (12X9)PLUG (12X9)
-
2209168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2309259-36011 PLUG (36X10)PLUG (36X10)
-
2409280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2511361-25D00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2609103-05019 BOLT (5X20)BOLT (5X20)
-
2709103-05015 BOLT (5X30)BOLT (5X30)
-
2809103-05021 BOLT (5X45)BOLT (5X45)
-
2911362-38300 DAMPER, ENGINE SPROCKETDAMPER, ENGINE SPROCKET
