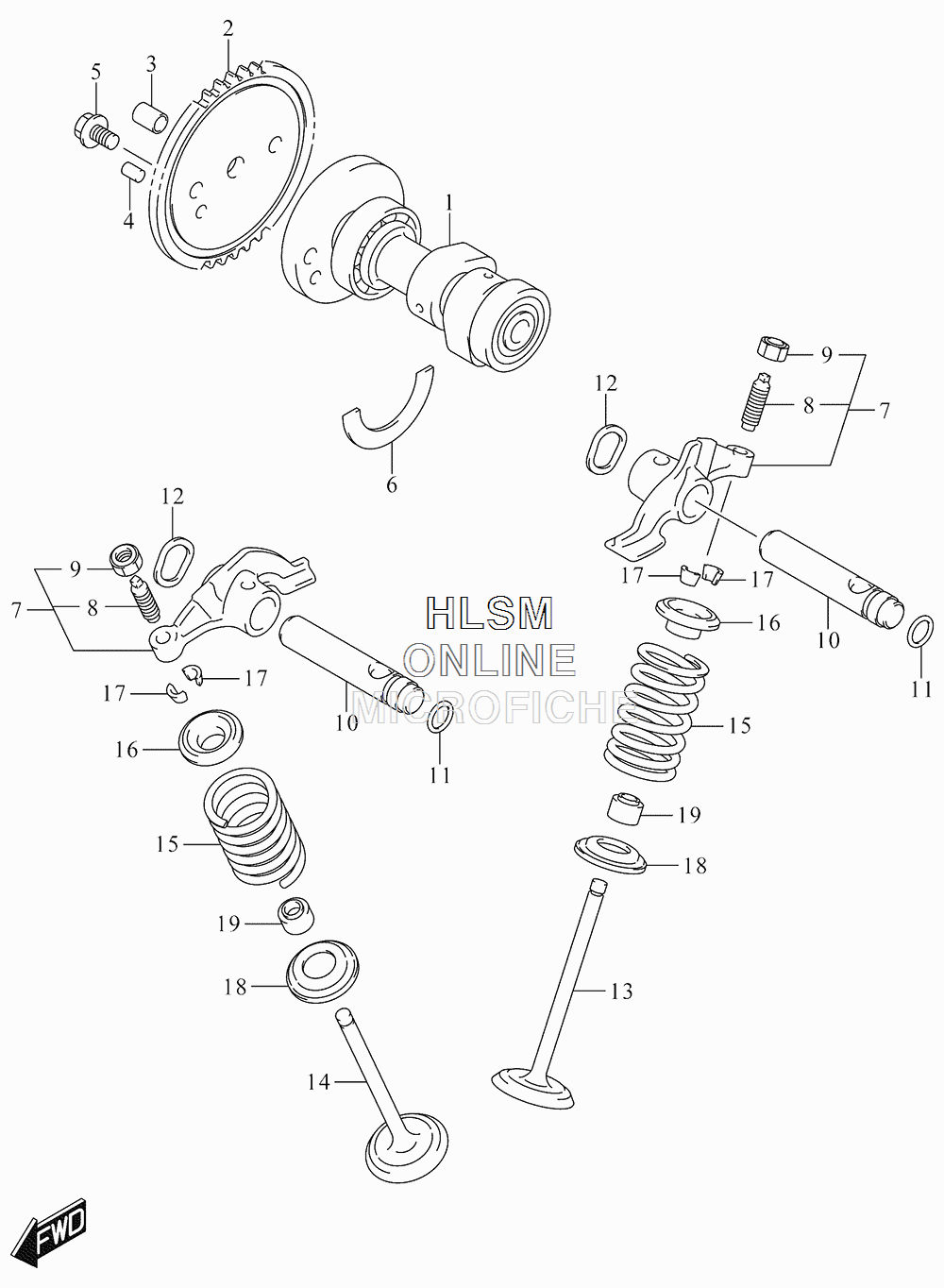

CAMSHAFT W/ VALVES для Suzuki TU250X L5 - 2015 года выпуска`
-
№АртикулНазвание
-
112710-26G00 CAMSHAFTCAMSHAFT
-
212741-26G00 SPROCKET, CAMSHAFT (NT:42)SPROCKET, CAMSHAFT (NT:42)
-
309206-08001 PIN (8X11)PIN (8X11)
-
409261-05005 PIN (5X8)PIN (5X8)
-
507120-0612A BOLTBOLT
-
609390-37001 C RINGC RING
-
712840-26G00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
812842-38A00 ...SCREW, TAPPET ADJUSTING...SCREW, TAPPET ADJUSTING
-
912843-32400 ...NUT, TAPPET ADJUSTING...NUT, TAPPET ADJUSTING
-
1012861-26G01 SHAFT, VALVE ROCKER ARMSHAFT, VALVE ROCKER ARM
-
1109280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1209164-12021 WASHERWASHER
-
1312911-26G00 VALVE, INTAKEVALVE, INTAKE
-
1412912-26G00 VALVE, EXHAUSTVALVE, EXHAUST
-
1512922-05240 SPRING, VALVESPRING, VALVE
-
1612931-49201 RETAINERRETAINER
-
1712932-24400 COTTER, VALVECOTTER, VALVE
-
1812933-38200 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1909289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
