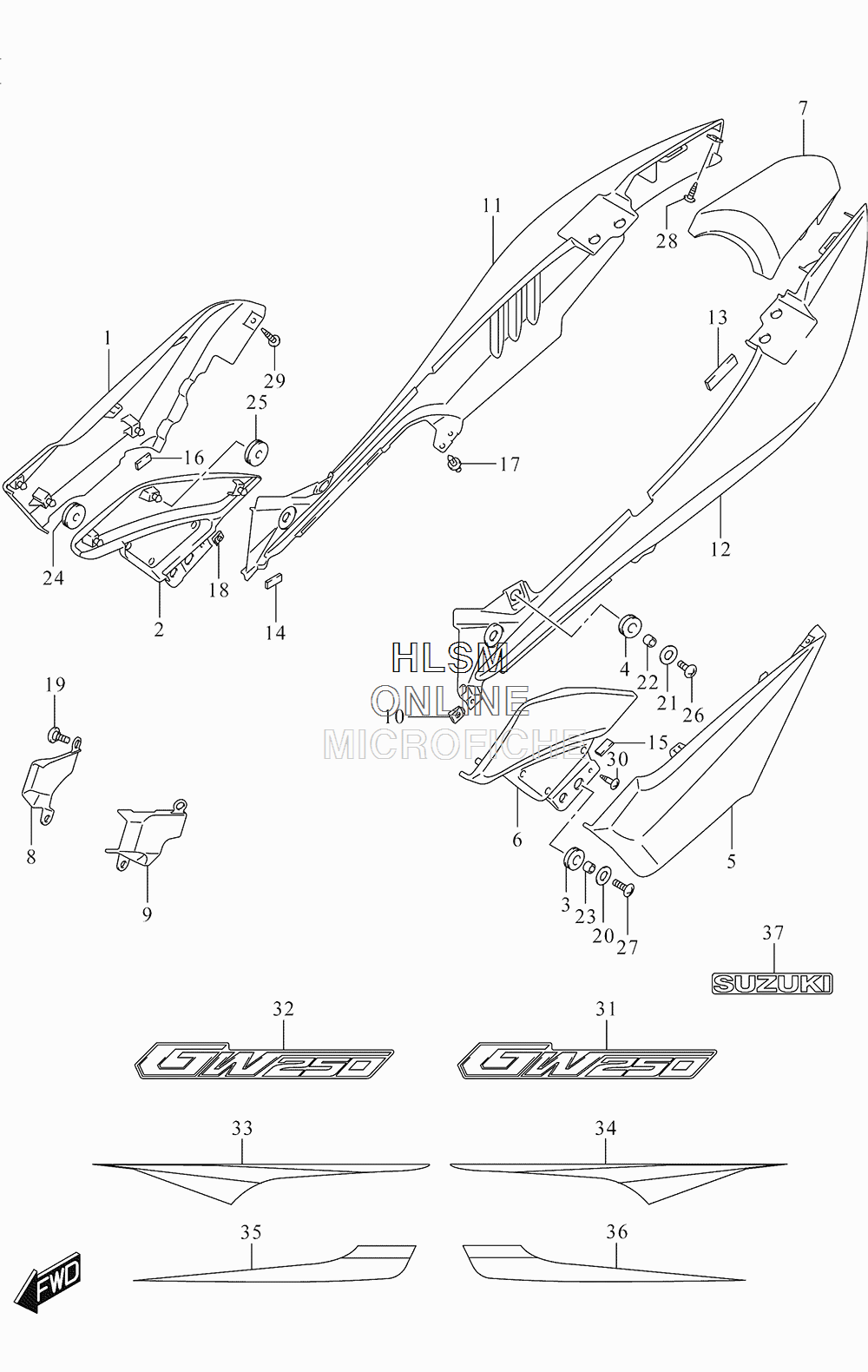

SIDE COVER для Suzuki GW250Z K5 INAZUMA W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
147111-48H00-YAY COVER, FRAME RIGHT HAND (BLACK)COVER, FRAME RIGHT HAND (BLACK)
-
247121-48H00-AQ8 COVER, FRAME FRONT RIGHT HAND (BLACK)COVER, FRAME FRONT RIGHT HAND (BLACK)
-
347161-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
447161-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
547211-48H00-YAY COVER, FRAME LEFT HAND (BLACK)COVER, FRAME LEFT HAND (BLACK)
-
647221-48H00-AQ8 COVER, FRAME FRONT LEFT HAND (BLACK)COVER, FRAME FRONT LEFT HAND (BLACK)
-
747311-48H00-YAY COVER, FRAME UPPER CENTER (BLACK)COVER, FRAME UPPER CENTER (BLACK)
-
847351-48H00 COVER, FRAME HEAD RHCOVER, FRAME HEAD RH
-
947361-48H00 COVER, FRAME HEAD LHCOVER, FRAME HEAD LH
-
1047399-48H00 NUTNUT
-
1147831-48H00-YAY COVER, FRAME UPPER RIGHT HAND (BLACK)COVER, FRAME UPPER RIGHT HAND (BLACK)
-
1247841-48H00-YAY COVER, FRAME UPPER LEFT HAND (BLACK)COVER, FRAME UPPER LEFT HAND (BLACK)
-
1347845-48H00 CUSHION, COVER UPPER REARCUSHION, COVER UPPER REAR
-
1447846-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
1547846-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
1647846-48H00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
1748292-32GH0 CLIP, COVER UPPERCLIP, COVER UPPER
-
1893162-37G00 NUT, COVER FRAME FRONTNUT, COVER FRAME FRONT
-
1947353-48H00 SCREW, FRAME HEAD COVERSCREW, FRAME HEAD COVER
-
2009160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2109160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2209180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2409320-08018 CUSHIONCUSHION
-
2509320-08018 CUSHIONCUSHION
-
2602142-0620A SCREWSCREW
-
2702142-0620A SCREWSCREW
-
2803541-0516A SCREWSCREW
-
2903541-0516A SCREWSCREW
-
3003541-0516A SCREWSCREW
-
3168131-48H60-JM4 EMBLEM, FRAME COVER RIGHT HAND (GRAY)EMBLEM, FRAME COVER RIGHT HAND (GRAY)
-
3268141-48H60-JM4 EMBLEM, FRAME COVER LEFT HAND (GRAY)EMBLEM, FRAME COVER LEFT HAND (GRAY)
-
3368135-48H00-AY4 TAPE, FRAME COVER RIGHT HAND (RED/BLACK)TAPE, FRAME COVER RIGHT HAND (RED/BLACK)
-
3468145-48H00-AY4 TAPE, FRAME COVER LEFT HAND (RED/BLACK)TAPE, FRAME COVER LEFT HAND (RED/BLACK)
-
3568136-48H00-AY4 TAPE, FRAME COVER FRONT RIGHT HAND (RED/BLACK)TAPE, FRAME COVER FRONT RIGHT HAND (RED/BLACK)
-
3668146-48H00-AY4 TAPE, FRAME COVER FRONT LEFT HAND (RED/BLACK)TAPE, FRAME COVER FRONT LEFT HAND (RED/BLACK)
-
3768281-48H00-YMD EMBLEM, ''SUZUKI'' (SILVER)EMBLEM, ''SUZUKI'' (SILVER)
