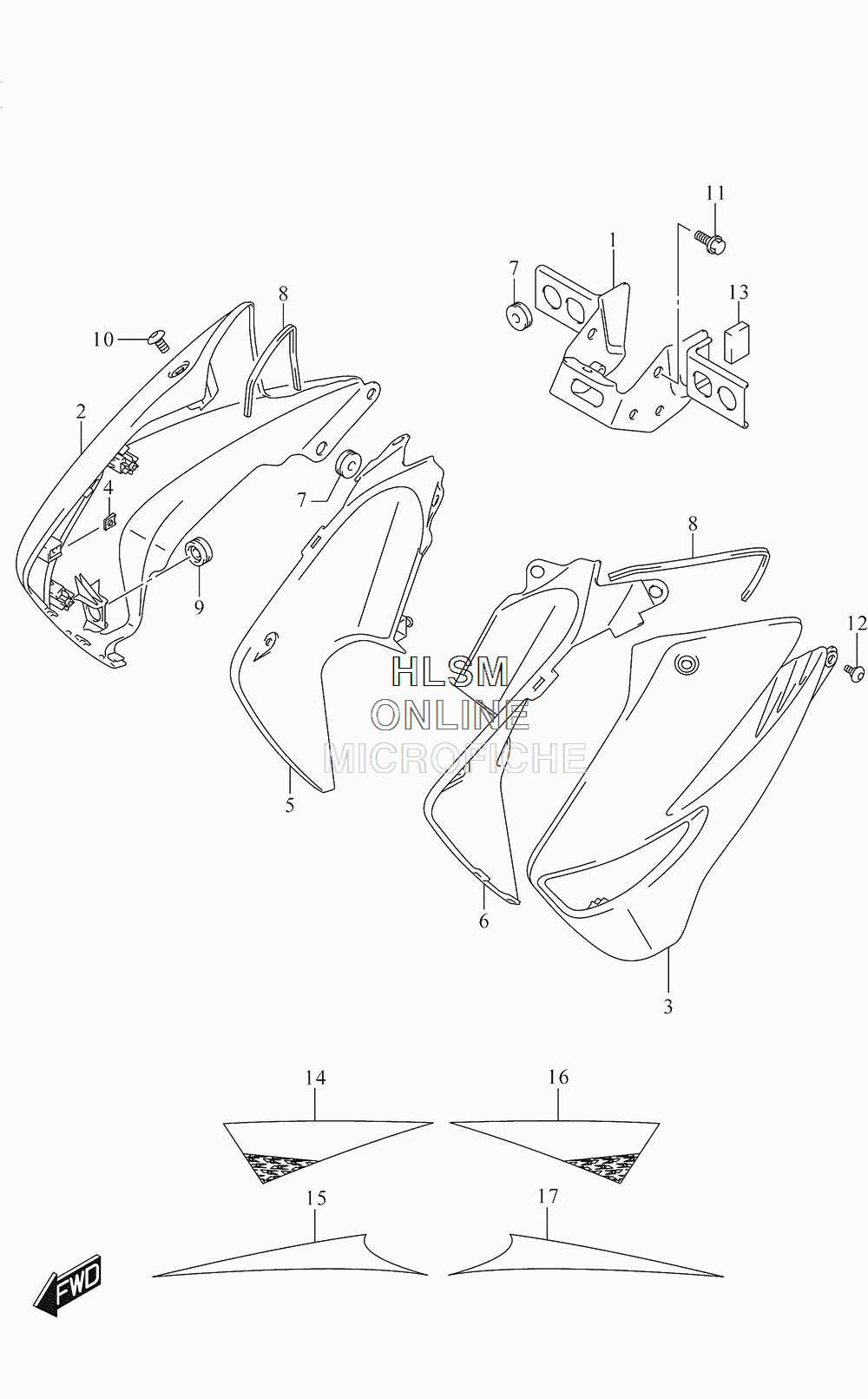

FUEL TANK COVER для Suzuki GW250Z K5 INAZUMA W/ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    44150-48H00 BRACKET, FRONT SIDE COVER
    BRACKET, FRONT SIDE COVER
  • 2
    44171-48H00-AY4 COVER, FUEL TANK RIGHT HAND (RED/BLACK)
    COVER, FUEL TANK RIGHT HAND (RED/BLACK)
  • 3
    44181-48H00-AY4 COVER, FUEL TANK LEFT HAND (RED/BLACK)
    COVER, FUEL TANK LEFT HAND (RED/BLACK)
  • 4
    44261-48H00 NUT, FUEL TANK COVER
    NUT, FUEL TANK COVER
  • 5
    44271-48H00 COVER, FUEL TANK FRONT RH
    COVER, FUEL TANK FRONT RH
  • 6
    44281-48H00 COVER, FUEL TANK FRONT LH
    COVER, FUEL TANK FRONT LH
  • 7
    44274-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 8
    44278-48H00 CUSHION, FUEL TANK COVER SIDE
    CUSHION, FUEL TANK COVER SIDE
  • 9
    44279-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 10
    09139-06172 SCREW (6X10)
    SCREW (6X10)
  • 11
    01550-0616B BOLT
    BOLT
  • 12
    44514-48H00 SCREW (6X12)
    SCREW (6X12)
  • 13
    44153-48H00 CUSHION, COVER BRACKET
    CUSHION, COVER BRACKET
  • 14
    68115-48H00-AY4 TAPE, TANK COVER NO.1 RIGHT HAND (RED/BLACK)
    TAPE, TANK COVER NO.1 RIGHT HAND (RED/BLACK)
  • 15
    68116-48H00-AY4 TAPE, TANK COVER NO.2 RIGHT HAND (RED/BLACK)
    TAPE, TANK COVER NO.2 RIGHT HAND (RED/BLACK)
  • 16
    68125-48H00-AY4 TAPE, TANK COVER NO.1 LEFT HAND (RED/BLACK)
    TAPE, TANK COVER NO.1 LEFT HAND (RED/BLACK)
  • 17
    68126-48H00-AY4 TAPE, TANK COVER NO.2 LEFT HAND (RED/BLACK)
    TAPE, TANK COVER NO.2 LEFT HAND (RED/BLACK)
