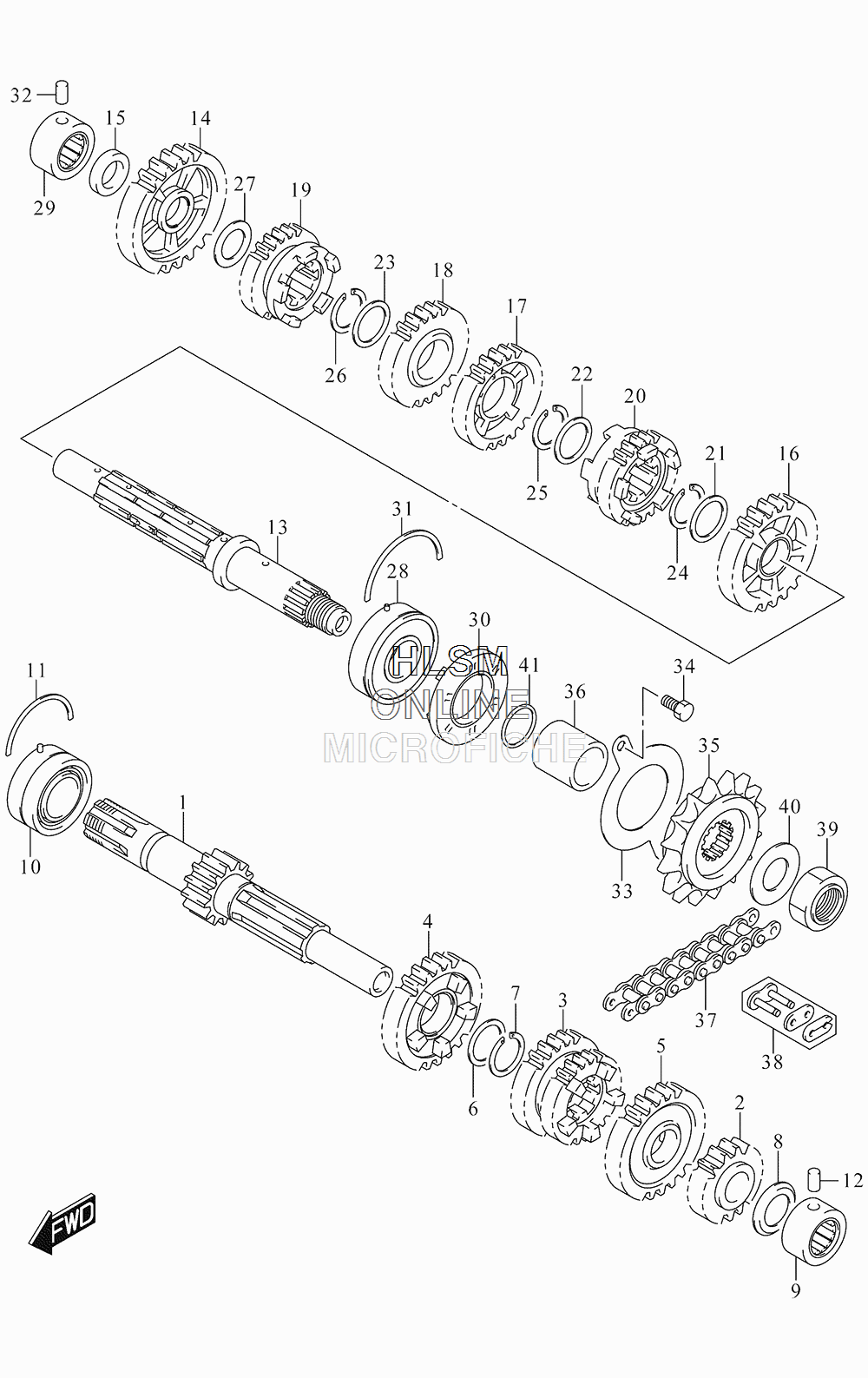

TRANSMISSION для Suzuki GW250 L5 INAZUMA - 2015 года выпуска

№

Артикул

Название
1

24120-48H00 SHAFT, COUNTER (NT:12)

SHAFT, COUNTER (NT:12)
2

24221-48H00 GEAR, 2ND DRIVE (NT:17)

GEAR, 2ND DRIVE (NT:17)
3

24231-48H00 GEAR, 3RD AND 4TH DRIVE (NT:10/11)

GEAR, 3RD AND 4TH DRIVE (NT:10/11)
4

24251-48H00 GEAR, 5TH DRIVE (NT:22)

GEAR, 5TH DRIVE (NT:22)
5

24260-48H00 GEAR, 6TH DRIVE (NT:26)

GEAR, 6TH DRIVE (NT:26)
6

09181-22017 SHIM (22X28X1)

SHIM (22X28X1)
7

09380-22016 CIRCLIP

CIRCLIP
8

24271-48H00 SEAL, SHAFT LEFT HAND BEARING

SEAL, SHAFT LEFT HAND BEARING
9

09263-17050 BEARING (17X30X16)

BEARING (17X30X16)
10

09267-22001 BEARING (22X47X20.6)

BEARING (22X47X20.6)
11

09390-47008 C-RING

C-RING
12

04221-06129 PIN

PIN
13

24130-48H00 SHAFT, DRIVE

SHAFT, DRIVE
14

24310-48H00 GEAR, 1ST DRIVEN (NT:29)

GEAR, 1ST DRIVEN (NT:29)
15

24313-48H00 SPACER, 1ST DRIVEN GEAR

SPACER, 1ST DRIVEN GEAR
16

24320-48H00 GEAR, 2ND DRIVEN (NT:26)

GEAR, 2ND DRIVEN (NT:26)
17

24331-48H00 GEAR, 3RD DRIVEN (NT:26)

GEAR, 3RD DRIVEN (NT:26)
18

24341-48H00 GEAR, 4TH DRIVEN (NT:24)

GEAR, 4TH DRIVEN (NT:24)
19

24351-48H00 GEAR, 5TH DRIVEN (NT:20)

GEAR, 5TH DRIVEN (NT:20)
20

24361-48H00 GEAR, 6TH DRIVEN (NT:21)

GEAR, 6TH DRIVEN (NT:21)
21

09181-22017 SHIM (22X28X1)

SHIM (22X28X1)
22

09181-22017 SHIM (22X28X1)

SHIM (22X28X1)
23

09181-22017 SHIM (22X28X1)

SHIM (22X28X1)
