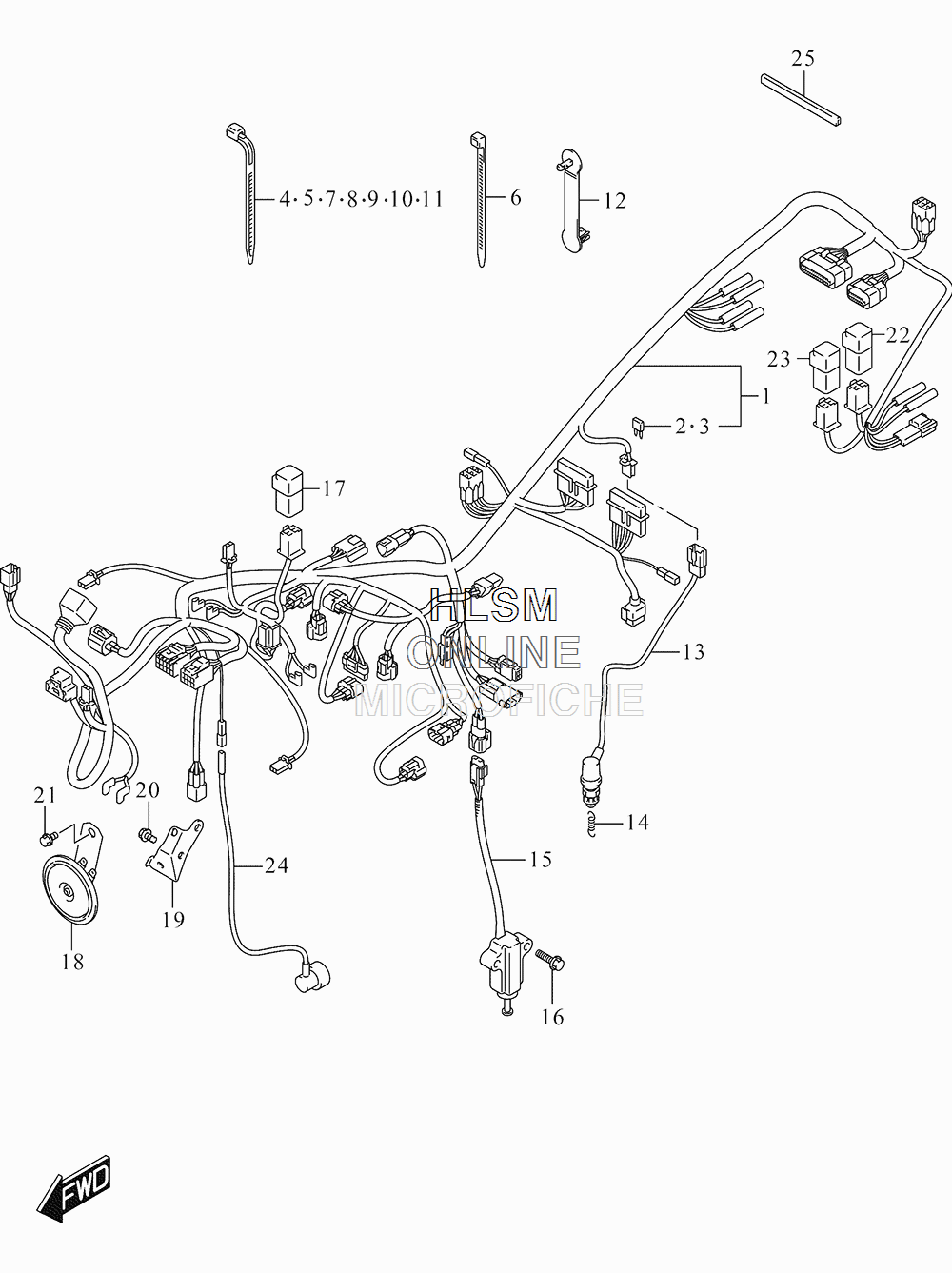

ELECTRICAL - WIRING HARNESS для Suzuki GW250 L5 INAZUMA - 2015 года выпуска`
-
№АртикулНазвание
-
136610-48HB0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436990-32G10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
536990-32G20 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
609407-25402 CLAMP (L:250)CLAMP (L:250)
-
709407-25401 CLAMP (L:235)CLAMP (L:235)
-
836990-48H00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936990-45H30 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1009407-19401 CLAMP (L:190)CLAMP (L:190)
-
1136990-32G30 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1236990-48H10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1337740-33G00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06046 SPRINGSPRING
-
1537840-18J00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1601550-0620B BOLTBOLT
-
1738740-33G00 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
1838500-48H30 HORN ASSYHORN ASSY
-
1938590-48H10 PLATE, HORNPLATE, HORN
-
2001550-0812B BOLTBOLT
-
2101550-0612B BOLTBOLT
-
2238740-33G00 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2338740-33G00 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2436851-48H01 WIRE, OIL PRESSURE SWITCH LEADWIRE, OIL PRESSURE SWITCH LEAD
-
2536618-48H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
