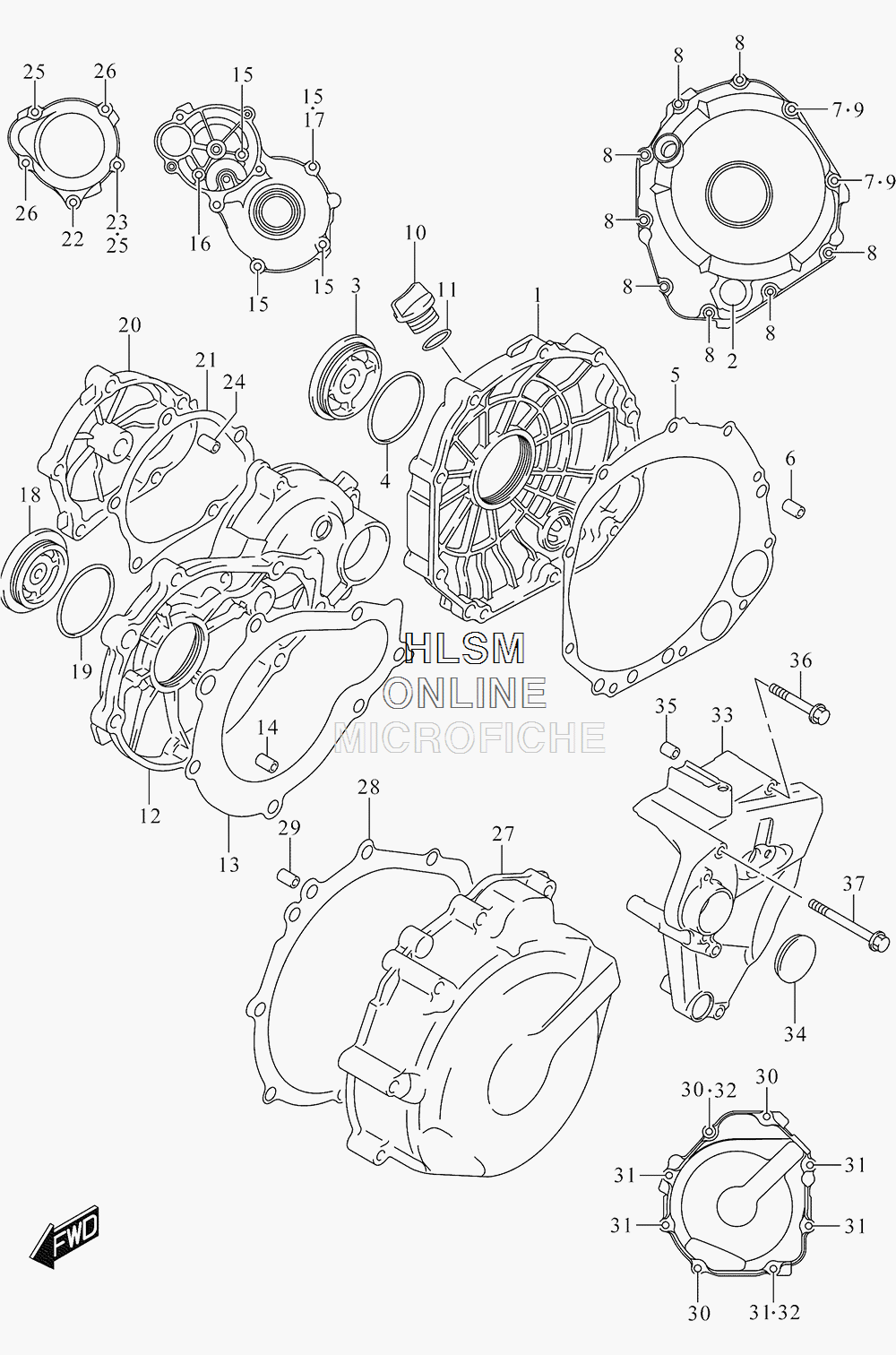

CRANKCASE COVER для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска`
-
№АртикулНазвание
-
111340-44G10 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311342-41G10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
431156-17E00 O RINGO RING
-
511482-40F10 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
604211-09189 PINPIN
-
709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
809103-06213 BOLT (6X30)BOLT (6X30)
-
909103-06215 BOLT (6X40)BOLT (6X40)
-
1011971-25D00 PLUG, ENGINE OIL FILLERPLUG, ENGINE OIL FILLER
-
1109280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1211381-35F10 COVER, STARTER CLUTCHCOVER, STARTER CLUTCH
-
1311491-33E02 GASKET, STARTER CLUTCH COVERGASKET, STARTER CLUTCH COVER
-
1404211-09149 PINPIN
-
1509103-06212 BOLT (6X25)BOLT (6X25)
-
1609103-06214 BOLT (6X35)BOLT (6X35)
-
1709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1809259-36021 PLUGPLUG
-
1909280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2011382-33E10 CAP, STARTER IDLE GEARCAP, STARTER IDLE GEAR
-
2111492-33E00 GASKET, STARTER IDLE GEAR CAPGASKET, STARTER IDLE GEAR CAP
-
2209103-06216 BOLT (6X55)BOLT (6X55)
-
2309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2404211-09149 PINPIN
-
2509103-06212 BOLT (6X25)BOLT (6X25)
-
2609103-06214 BOLT (6X35)BOLT (6X35)
-
2711351-18G20 COVER, MAGNETOCOVER, MAGNETO
-
2811483-18G00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
2904211-09149 PINPIN
-
3009103-06213 BOLT (6X30)BOLT (6X30)
-
3109103-06224 BOLT (6X45)BOLT (6X45)
-
3209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3311361-08J00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
3409250-30003 CAP (OD:36)CAP (OD:36)
-
3504211-09129 PINPIN
-
3601547-0665A BOLTBOLT
-
3701547-0695A BOLTBOLT
