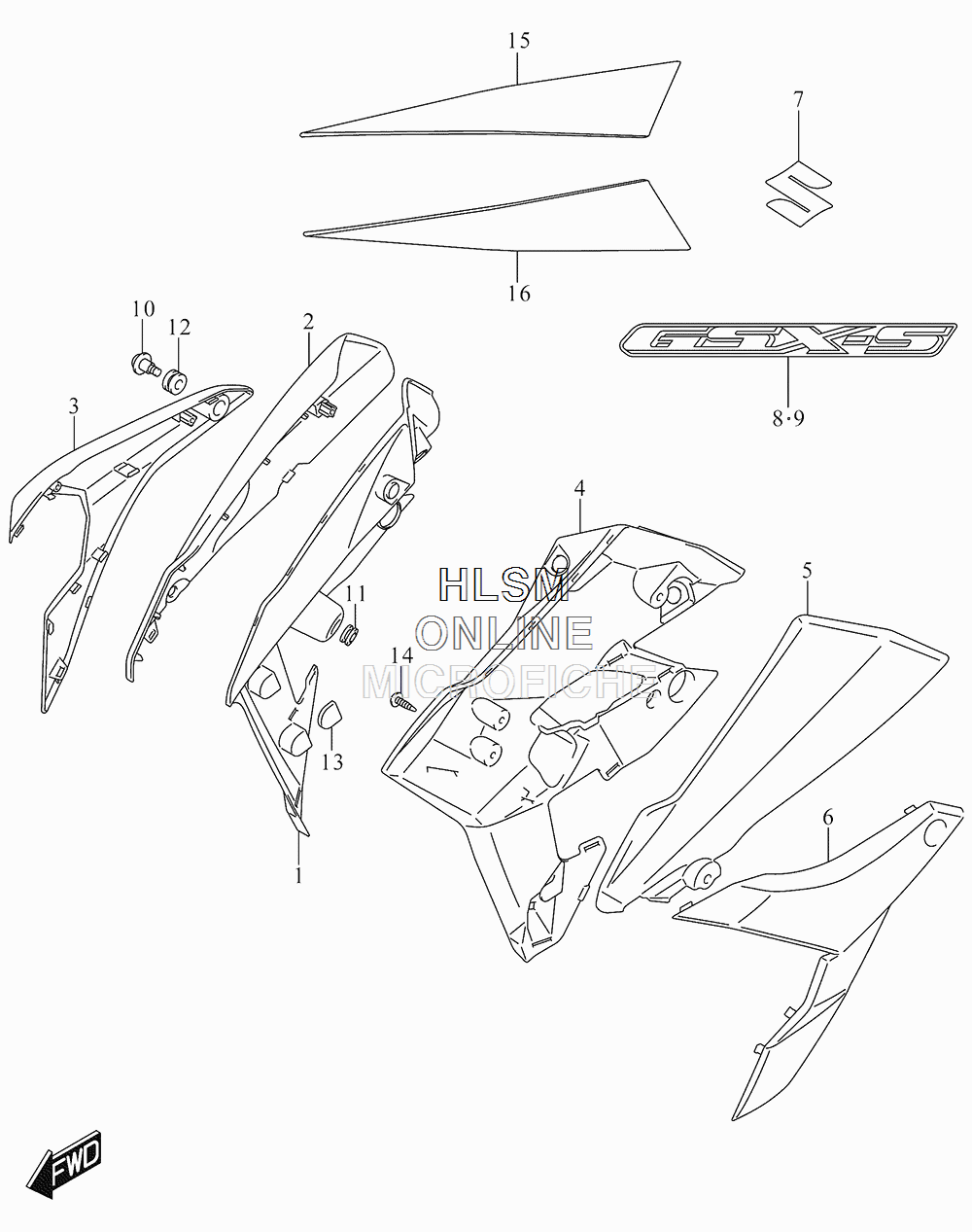

BODY COVER для Suzuki GSX-S750ZA L5 ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    47531-08J00 COVER, FRAME BODY INNER RIGHT HAND
    COVER, FRAME BODY INNER RIGHT HAND
  • 2
    47532-08J00-YWW COVER, FRAME BODY RIGHT HAND (WHITE)
    COVER, FRAME BODY RIGHT HAND (WHITE)
  • 3
    47533-08J00-YSF COVER, FRAME BODY LOWER RIGHT HAND (BLUE)
    COVER, FRAME BODY LOWER RIGHT HAND (BLUE)
  • 4
    47541-08J00 COVER, FRAME BODY INNER LEFT HAND
    COVER, FRAME BODY INNER LEFT HAND
  • 5
    47542-08J00-YWW COVER, FRAME BODY LEFT HAND (WHITE)
    COVER, FRAME BODY LEFT HAND (WHITE)
  • 6
    47543-08J00-YSF COVER, FRAME BODY LOWER LEFT HAND (BLUE)
    COVER, FRAME BODY LOWER LEFT HAND (BLUE)
  • 7
    68111-47HA0 EMBLEM, ''S''
    EMBLEM, ''S''
  • 8
    68661-08J20-A69 EMBLEM, ''GSXS'' RIGHT HAND
    EMBLEM, ''GSXS'' RIGHT HAND
  • 9
    68671-08J20-A69 EMBLEM, ''GSXS'' LEFT HAND
    EMBLEM, ''GSXS'' LEFT HAND
  • 10
    09139-06190 BOLT (6X20)
    BOLT (6X20)
  • 11
    09320-08028 CUSHION
    CUSHION
  • 12
    09320-09016 CUSHION
    CUSHION
  • 13
    09329-18001 CUSHION
    CUSHION
  • 14
    03541-0516A SCREW
    SCREW
  • 15
    68662-08J00-AGQ TAPE, FRAME BODY COVER RIGHT HAND (BLUE/WHITE)
    TAPE, FRAME BODY COVER RIGHT HAND (BLUE/WHITE)
  • 16
    68672-08J00-AGQ TAPE, FRAME BODY COVER LEFT HAND (BLUE/WHITE)
    TAPE, FRAME BODY COVER LEFT HAND (BLUE/WHITE)
